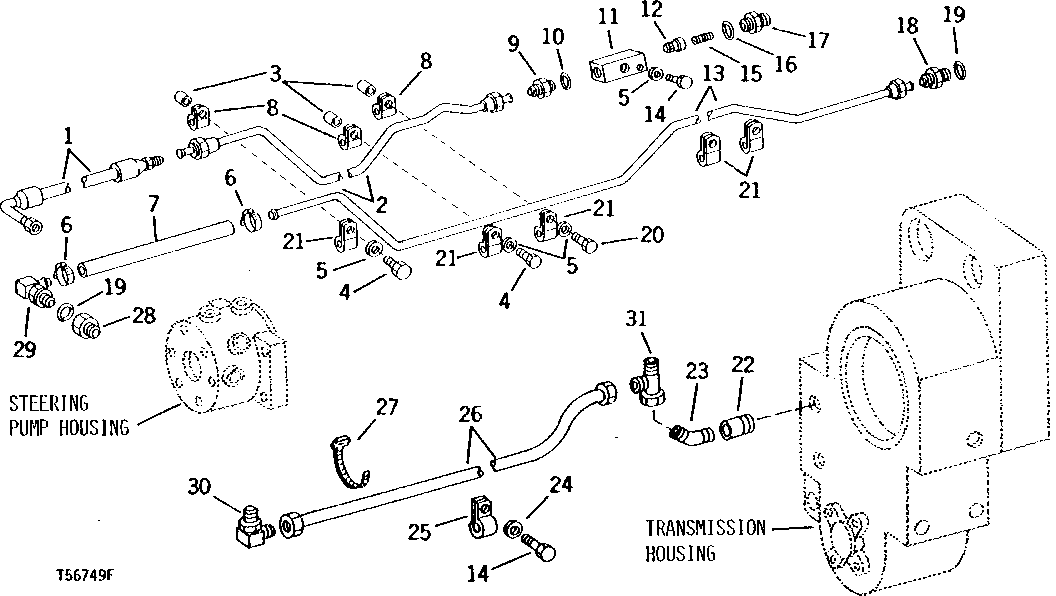

REAR HYDRAULIC STEERING LINES (SERIAL NO. 248662- ) [02B20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT39424	1	HYDRAULIC HOSE	STEERING PRESSURE LINE TO STEERING PUMP
2	AT39423	1	LINE	STEERING PRESSURE
3	28H1495	3	Spacer	3/8" X 1"
4	19H1765	2	Cap Screw	3/8" X 1-3/4"
5	12H304	7	Lock Washer	3/8"
6	AR21839	2	Clamp	-
7	T25479	1	HOSE	STEERING RETURN
8	T24958	3	Clip	-
9	R27237	1	Fitting	-
10	R26375	1	O-Ring	-
11	T28260	1	HOUSING	CHECK VALVE
12	T29512	1	CHECK VALVE	-
13	AT39425	1	LINE	STEERING RETURN (REAR)
14	19H2021	2	Cap Screw	3/8" X 5/8"
15	F3322R	1	SPRING	-
16	R26906	1	O-Ring	-
17	R31665	1	Fitting	-
18	R27267	1	Fitting	-
19	U12547	2	O-Ring	(SUB FOR (2) F3171R)
20	19H3065	1	Cap Screw	3/8" X 2"
21	T27523	5	Clamp	-
22	15H639	1	Pipe Bushing	1/4" X 1/8"
23	T24945	1	ELBOW FITTING	45°
24	12H304	1	Lock Washer	3/8"
25	T13814	1	Clamp	-
26	AT56466	1	LINE	RETURN OIL SEAL DRAIN
27	R44302	3	Tie Band	-
28	T27517	1	Adapter Fitting	-
29	AT21574	1	Fitting	ADJUSTABLE 90°
30	AT32336	1	ELBOW FITTING	90°, (SUB FOR AT32336)
31	U45760	1	FITTING	-
