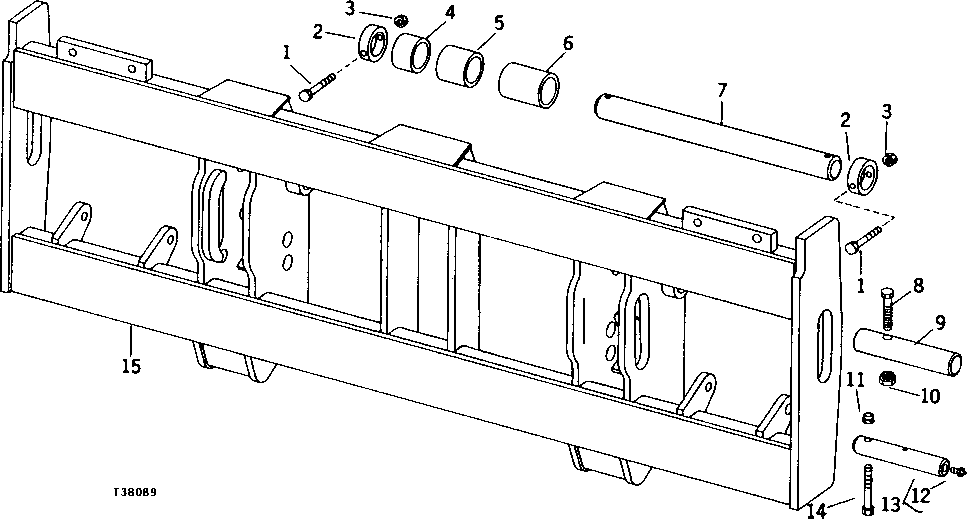

LUMBER FORK FRAME AND LOAD ARM SHAFT [02F09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2224	4	CAP SCREW	(A) 1/2" X 4-3/4"
2	T30977	4	BUSHING	(A)
3	BP12214	4	Lock Nut	(A)
4	28H3310	2	SPACER	(A) 3" X 2"
5	-	2	Part 5	(A) 3" X 3" ( 28H2681 NO LONGER AVAILABLE)
6	-	2	Part 6	(A) 3" X 4-1/2" ( 28H3311 NO LONGER AVAILABLE)
7	T64163	2	PIN	(SUB FOR T30973 AND T64163) (WHEN EQUIPPED WITH TWO AT29969 CLAMPS)
7	T64163	2	PIN	(SUB FOR T46403) (WHEN EQUIPPED WITH ONE AT44978 CLAMP)
8	19H3210	1	Cap Screw	(A) 3/4" X 5-1/4", (SUB FOR 19H1892)
9	T39958	1	PIN	(A) (LUMBER FORK TO LINK)
10	T25879	1	Nut	(A)
11	U44915	2	Lock Nut	(A) (SUB FOR BP14495)
12	T162396	2	Lubrication Fitting	(A) (SUB FOR JD7759 OR JD7798)
13	AT27191	2	PIN FASTENER	(A) (BOOM)
14	19H3170	2	Cap Screw	(A) 5/8" X 4-1/2"
15	-	1	Part 16	(USE WITHOUT TWO AT29969 LUMBER CLAMPS) (SUB AT45047)
15	-	1	Part 17	(A) ( AT45050 NO LONGER AVAILABLE) (USE WITHOUT AT44978 LUMBER CLAMP)
15	-	1	Part 18	( AT68659 NO LONGER AVAILABLE) (WHEN EQUIPPED WITH AT44978 CLAMP) (INCLUDES (2) T71636 AND T30964) (SUB FOR AT45057) (ALSO ORDER (2) R27237 AND (2) R26375)
..	AT45047	1	FORK	(SUB FOR AT45769) (USED WITHOUT AT44978 CLAMP)
..	AT45048	1	FORK	(WHEN EQUIPPED WITH ONE AT44978 CLAMP)
