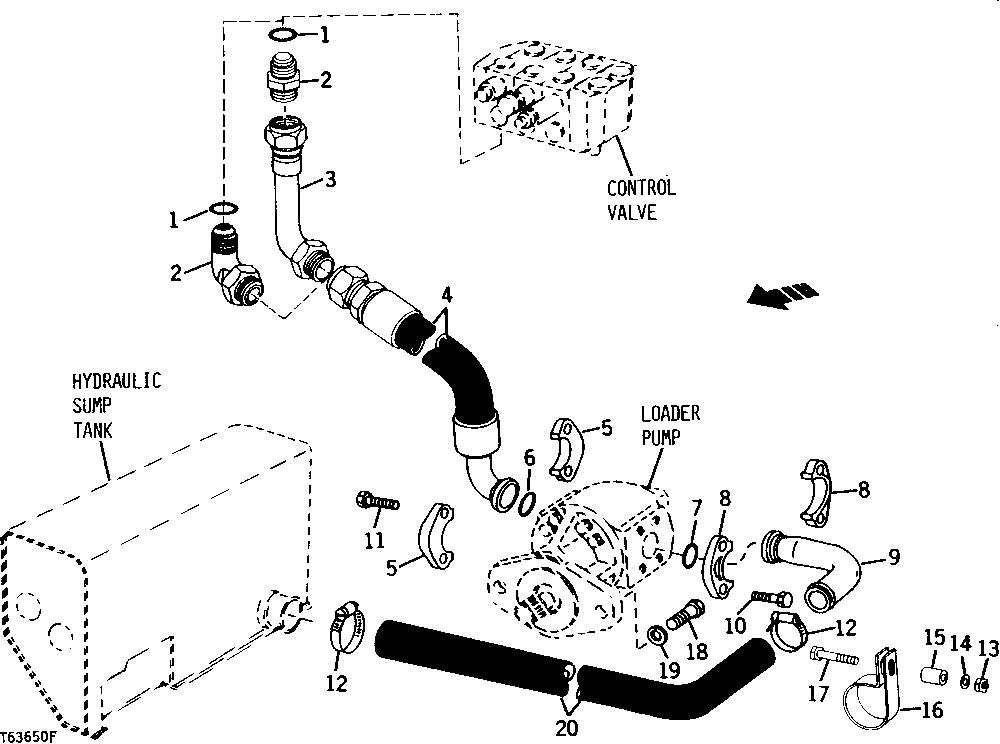

LOADER PUMP HYDRAULICS (SERIAL NO. 227406- ) (WITH REAR AXLE DISCONNECT) (SERIAL NO. 229447- ) (WITHOUT REAR AXLE DISCONNECT) [02E03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U13639	1	O-Ring	-
2	R37187	1	ADAPTER FITTING	(WITH TWO-SPOOL VALVE)
2	AT45743	1	ELBOW FITTING	45° (WITH THREE-SPOOL VALVE)
3	AT45745	1	OIL LINE	PRESSURE (WITH TWO-SPOOL VALVE)
4	AT45744	1	HYDRAULIC HOSE - FABRICATE	600 MM LONG (1-1/4" X 1-5/8" X 23-1/2") (WITH TWO-SPOOL VALVE)
4	AT45742	1	HYDRAULIC HOSE - FABRICATE	762 MM LONG (1-1/4" X 1-5/8" X 30") (WITH THREE-SPOOL VALVE)
5	R29867	2	Flange Fitting	SPLIT FLANGE
6	U10289	1	O-Ring	-
7	F1870R	1	O-Ring	-
8	X51H-32	2	Flange Fitting	(SUB FOR R37023) SPLIT FLANGE
9	AT32676	1	TUBE	-
10	19H2898	4	Cap Screw	1/2" X 1-1/4"
11	19H3104	4	Cap Screw	7/16" X 1-1/4"
12	AR21999	2	Hose Clamp	-
13	14H812	1	NUT	3/8"
14	12H304	1	Lock Washer	3/8"
15	28H1497	1	Bushing	3/8" X 1-1/2"
16	N35147	1	CLIP	-
17	19H2458	1	Cap Screw	3/8" X 3"
18	19H1356	1	CAP SCREW	5/8" X 1-3/4"
19	12H294	1	Lock Washer	5/8"
20	T33505	1	HOSE	64 MM X 1 181 MM (2-1/2" X 46-1/2")

LOADER PUMP HYDRAULICS (SERIAL NO. 227406- ) (WITH REAR AXLE DISCONNECT) (SERIAL NO. 229447- ) (WITHOUT REAR AXLE DISCONNECT) [02E03]
