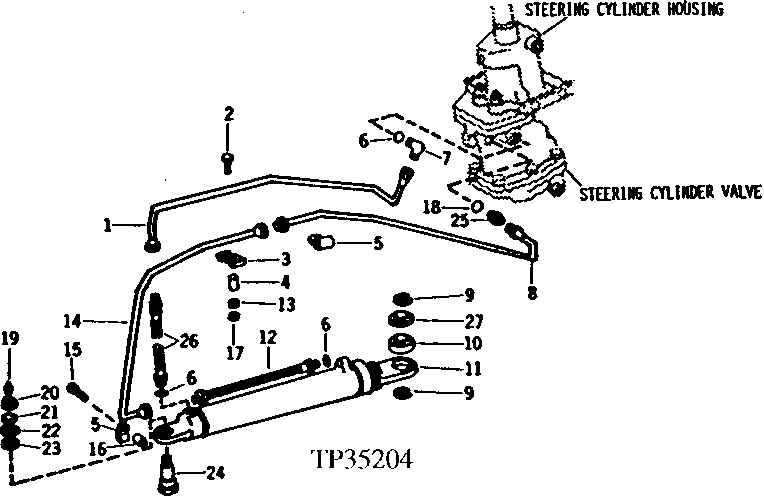

LEFT-HAND STEERING CYLINDER HYDRAULIC OIL LINES (SERIAL NO. 247613- ) [02B24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT52574	1	LINE	LEFT STEERING CYLINDER
2	19H2633	1	Cap Screw	3/8" X 1-1/2"
3	E16981	1	CLAMP	-
4	28H860	1	Washer	0.423" X 0.675" X 3/8"
5	T24958	3	Clip	-
6	R26375	3	O-Ring	-
7	AT32332	1	Elbow Fitting	90° ADJUSTABLE, (SUB FOR AR26763)
8	AT52576	1	LINE	(FRONT) LEFT STEERING CYLINDER
9	F2367R	4	SNAP RING	-
10	AT54530	2	BUSHING	(SUB FOR AT28416) (SUB AT61505)
10	AT61505	2	BUSHING	-
11	AU41980	1	CYLINDER	CYLINDER L.H.
12	T22012	1	HYDRAULIC HOSE - FABRICATE	3/4" X 436 MM (17-1/4") X 3/4", FLEXIBLE OIL
13	14H812	1	NUT	3/8"
14	AT52581	1	LINE	(REAR) STEERING CYLINDER (LEFT)
15	19H1726	1	Cap Screw	3/8" X 2-1/4"
16	28H2576	1	SPACER	3/8" X 1-1/2"
17	14H812	1	NUT	3/8", (NEUTRAL START SWITCH GROUND WIRE)
18	R26448	1	O-Ring	-
19	T162396	1	Lubrication Fitting	STRAIGHT, 1/8", (SUB FOR JD7759 OR JD7798)
19	JD7781	1	Lubrication Fitting	1/8" X 90°
20	T27821	2	LOCK NUT	-
21	N140213	2	WASHER	THRUST
22	T28070	2	WASHER	RING SEALING
23	T29625	2	WASHER	SPACER
24	T29624	2	CAP SCREW	-
25	R39249	1	Adapter Fitting	-
26	AT27777	1	HYDRAULIC HOSE - FABRICATE	3/4" X 518 MM (20-1/2") X 3/4"
27	T29625	1	WASHER	-
