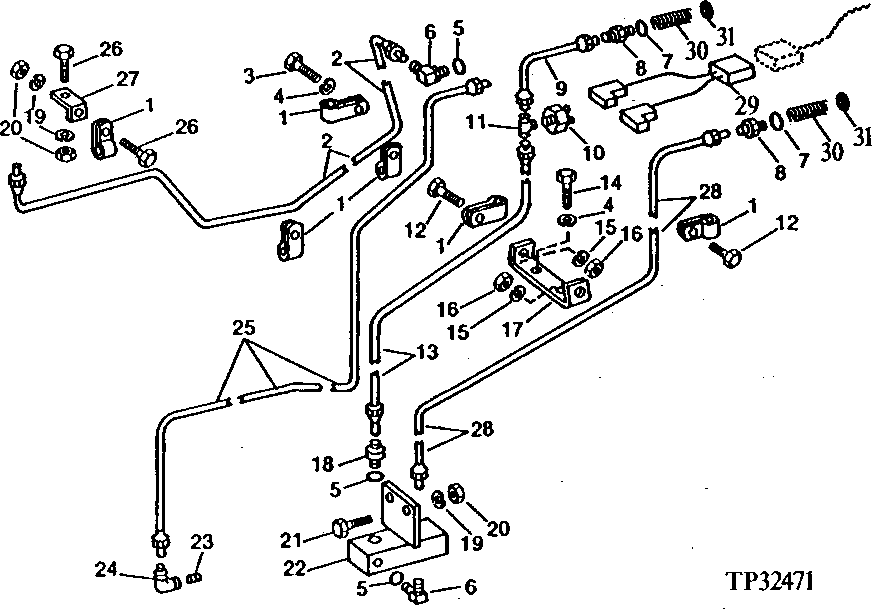

HYDRAULIC BRAKE VALVE LINES (SERIAL NO. -248504) [02C17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T24957	5	CLAMP	-
2	AT39632	1	LINE	BRAKE VALVE PRESSURE
3	19H2633	1	Cap Screw	3/8" X 1-1/2"
4	12H304	3	Lock Washer	3/8"
5	R26286	3	O-Ring	-
6	RE56322	2	Tee Fitting	90°, ADJUSTABLE, (SUB FOR AR26771 OR AT32333)
7	R26375	2	O-Ring	-
8	R42008	2	FITTING	(SUB FOR T27318)
9	AT25896	1	LINE	PRESSURE
10	AL27809	1	SWITCH	BRAKE STOP LIGHT (SUB FOR AR86974 AND AR85759) (USE IF AVAILABLE) (SUB FOR R32548, THIS APPLICATION) (ALSO ORDER AT71012)
10	AL67715	1	Switch	(SUB FOR AL27809)
11	T27662	1	TEE FITTING	-
12	19H2664	2	Cap Screw	5/16" X 3/4"
13	AT25897	1	LINE	PRESSURE (FRONT)
14	19H2284	2	Cap Screw	3/8" X 7/8"
15	12H303	2	Lock Washer	5/16"
16	14H785	2	Nut	5/16"
17	-	1	Part 18	( T27334 USE IF AVAILABLE)
18	R27272	1	Fitting	-
19	12H304	3	Lock Washer	3/8"
20	14H812	4	NUT	3/8"
21	19H3385	2	Cap Screw	1/2" X 1-1/8"
22	AT25351	1	JUNCTION BLOCK	-
23	15H639	1	Pipe Bushing	1/4" X 1/8"
24	AR74095	1	ELBOW FITTING	(SUB FOR T28051)
25	AT25345	1	LINE	-
26	19H2551	2	Cap Screw	5/16" X 3/4"
27	T29495	1	ANGLE	-
28	AT25353	1	LINE	PRESSURE (REAR)
29	AT71012	1	WIRING HARNESS	-
30	R227R	2	Spring	-
31	R26376	2	DISK	-

HYDRAULIC BRAKE VALVE LINES (SERIAL NO. -248504) [02C17]

Нет текстового описания
