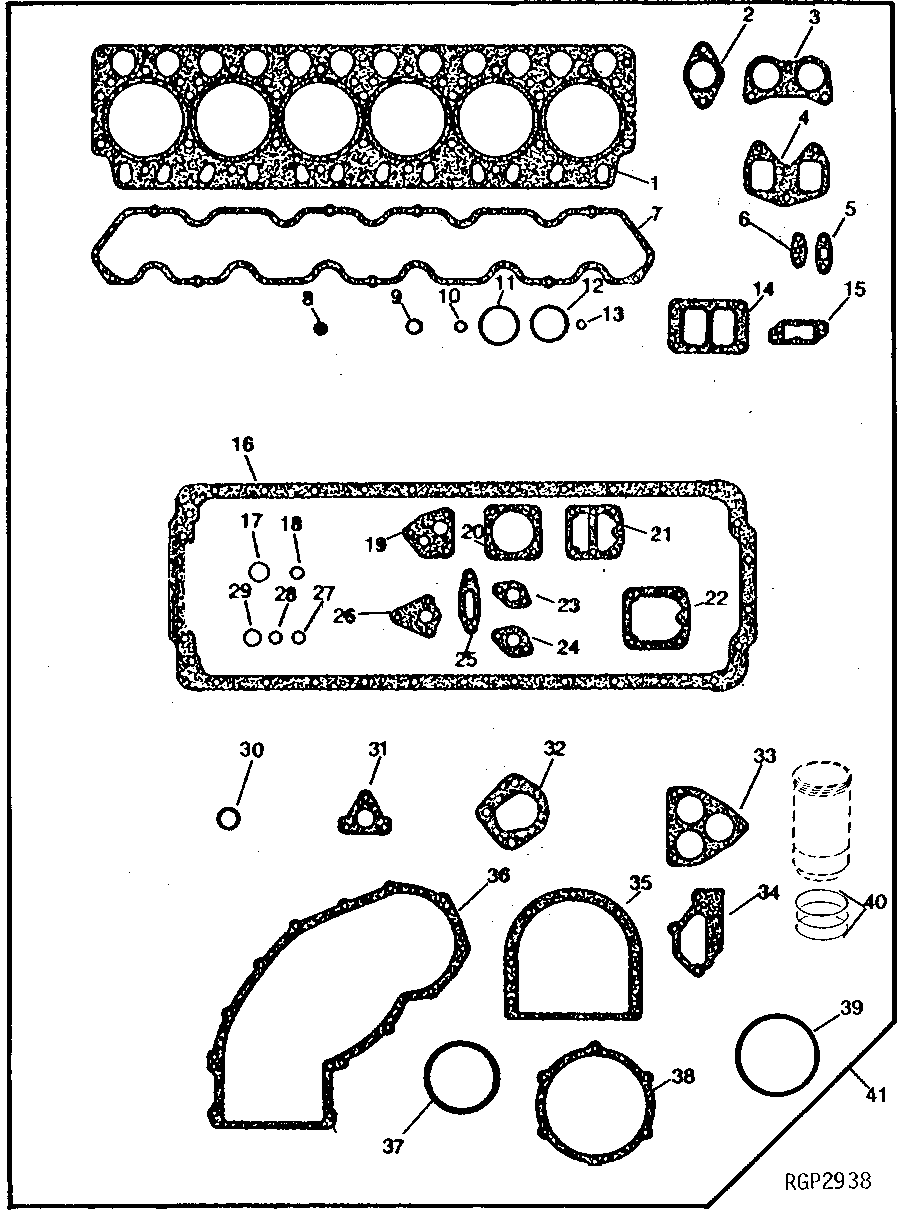

ENGINE OVERHAUL GASKET SET (6531T) [03B03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R78513	1	ENGINE CYLINDER HEAD GASKET	(SUB FOR R49688)
2	R80970	2	Gasket	(SUB FOR R49696, R66001 OR R78423) (SUB R86454 AND R86455)
2	R86454	2	GASKET	-
3	R80969	2	Gasket	(SUB FOR R49695, R66000 OR R78422) (SUB R86454 AND R86455)
3	R86455	2	GASKET	-
4	R40088	3	GASKET	-
5	R105346	1	Gasket	(SUB FOR R43416 OR R97349)
6	R97348	1	GASKET	(SUB FOR R43413)
7	R74365	1	GASKET	(SUB FOR R49867)
8	R48693	12	Washer	-
9	R495R	1	O-Ring	-
10	R51603	6	O-Ring	-
11	R50405	1	O-Ring	-
12	R50406	1	O-RING	-
13	R64840	6	Washer	(SUB FOR R48633)
14	R123572	1	Gasket	(SUB FOR R55509) (SUB FOR R89879, THIS APPLICATION)
15	R88397	2	Gasket	(SUB FOR R42693)
16	R56325	1	GASKET	-
17	T20328	1	Gasket	-
18	P48347	1	O-Ring	(SUB FOR R34404, APPL)
19	R49484	1	Gasket	-
20	R520539	2	GASKET	(SUB FOR R49489)
21	R44853	1	GASKET	(USE WITH R43851)
22	R62410	1	GASKET	(USE WITH R63285)
23	R49490	1	GASKET	-
24	R49491	1	GASKET	-
25	R520616	1	GASKET	(SUB FOR R49486, R82943)
26	R49485	1	Gasket	-
27	R26286	1	O-Ring	-
28	R72328	3	O-Ring	(SUB FOR R43780)
29	U13639	1	O-Ring	-
30	R71732	2	O-Ring	-
31	R69418	1	GASKET	-
32	R70475	1	GASKET	-
33	R81274	1	GASKET	(SUB FOR R49488)
34	R520542	2	GASKET	(SUB FOR R49495)
35	R35043	1	Gasket	-
36	R49483	1	GASKET	-
37	R43660	1	Packing	-
38	R35349	1	GASKET	-
39	R57851	1	WASHER	-
40	R49423	18	O-RING	(CYLINDER LINER PACKINGS)
41	RE17050	1	GASKET KIT	(SUB FOR AR67508)

ENGINE OVERHAUL GASKET SET (6531T) [03B03]
