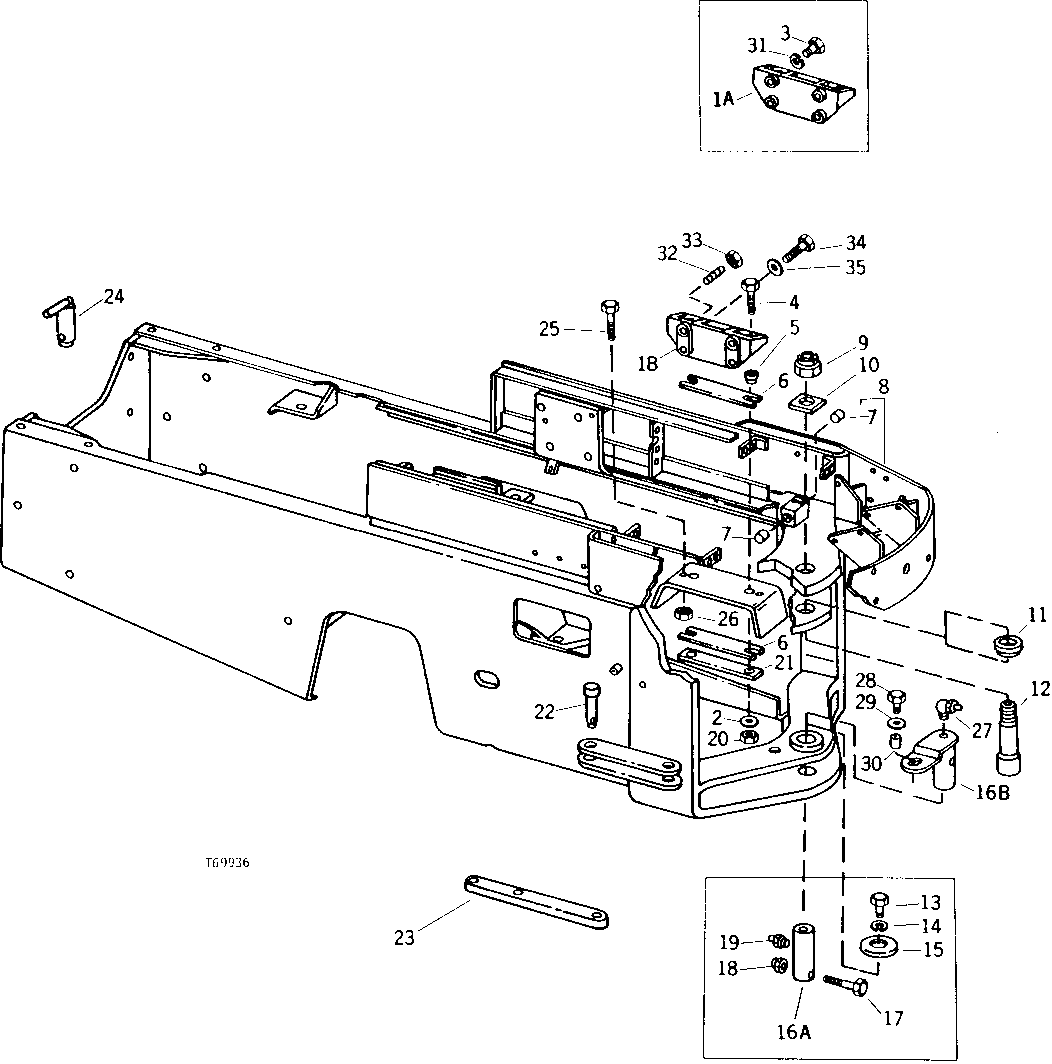

ENGINE FRAME AND TRANSMISSION SUPPORTS [02F21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	12H294	8	Lock Washer	5/8"
3	19H1356	8	CAP SCREW	5/8" X 1-3/4"
4	19H3208	4	Cap Screw	5/8" X 3"
5	T27298	4	SPACER	-
6	T40883	4	ISOLATOR	-
7	M2038T	2	BUSHING	-
8	-	1	Part 9	(ALSO ORDER AT53170 FOR LOADERS BUILT PRIOR TO SERIAL NO. 247613) ( AT39604 USE IF AVAILABLE)
9	T27294	1	LOCK NUT	-
10	T27291	1	STRAP	-
11	T27290	1	LOCKING COLLAR	-
12	AT25333	1	PIN FASTENER	UPPER PIVOT
13	19H2021	1	Cap Screw	3/8" X 5/8"
14	24H1305	1	Washer	13/32" X 13/16" X 0.065"
15	T29488	1	COVER	-
17	19H1840	1	CAP SCREW	1/2" X 5-1/2"
18	BP12214	1	Lock Nut	(SUB FOR U12622)
19	JD7771	1	Lubrication Fitting	-
20	14H1039	4	Nut	5/8"
21	T27299	2	STRAP	-
22	R53296	2	Pin Fastener	-
23	T27295	1	STRAP	-
24	AT39592	1	PIN	DRAWBAR
25	19H1648	4	Cap Screw	3/8" X 3/4"
26	14H812	4	NUT	3/8"
27	JD7763	1	Lubrication Fitting	(B) 45°, 1/8"
28	19H2472	1	Cap Screw	(B) 1/2" X 1"
29	24H1211	1	Washer	(B) 9/16" X 1-3/8" X 0.105"
30	28H1596	1	WASHER	(B) 0.546" X 0.840" X 5/16"
31	12H294	8	Lock Washer	5/8"
32	T22648	4	STUD	(SUB FOR T66966)
33	A21048	4	Nut	-
34	19H1356	4	CAP SCREW	5/8" X 1-3/4"
35	24M7241	4	Washer	17 X 34 X 4 MM, (SUB FOR T19584 AND T40728)
..	AT53170	1	PIN FASTENER	LOWER PIVOT
1A	T46142	2	BRACKET	(SUB FOR T27206)
1B	T66965	2	BRACKET	-
16A	T27286	1	PIN FASTENER	(ALSO ORDER T13624)
16A	-	1	Part 17	LOWER PIVOT WITH BALL, (SUB AT53170, THIS APPLICATION) (WHEN AT30164 IS NO LONGER AVAILABLE,ORDER T27286 AND T13624)
16B	-	1	Part 19	(B) (SUB AT53170)
