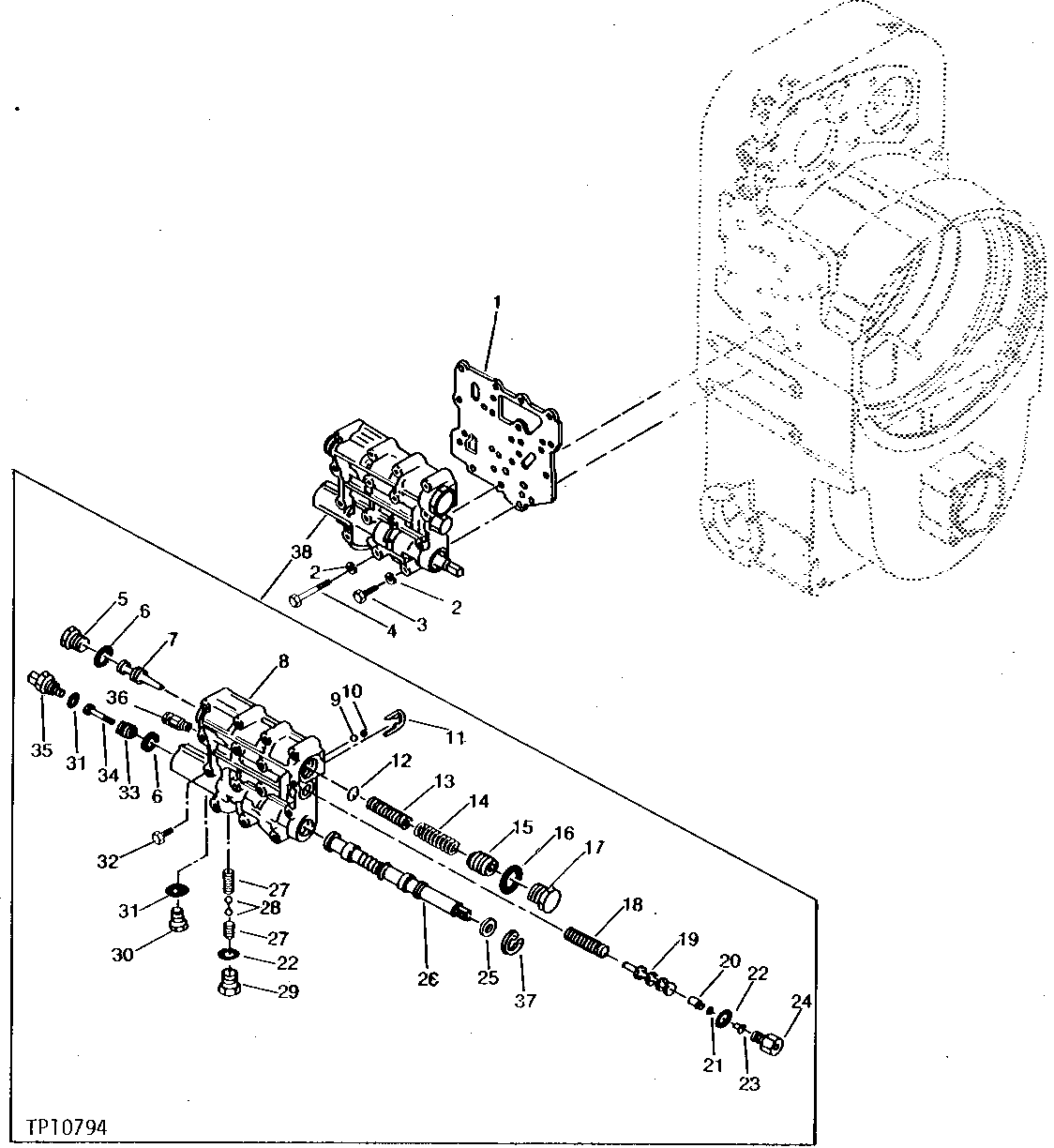

CONTROL VALVE (TT3420-1 SERIES TRANSMISSION) (SERIAL NO. 339877- ) [01H12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T27874	1	GASKET	(K1) (K2)
2	12H304	16	Lock Washer	3/8"
3	19H2676	1	Cap Screw	3/8" X 1"
4	19H3031	15	Cap Screw	3/8" X 2-1/2"
5	T27875	1	FITTING	-
6	T27876	2	WASHER	(K1) (K2)
7	T27877	1	HYDRAULIC PRESSURE VALVE	REGULATOR
7	T72078	1	HYDRAULIC PRESSURE VALVE	REGULATOR
8	T49473	1	HOUSING	(SUB T78801 AND M41029)
8	T49473	1	HOUSING	(SUB T78801, M41029 AND T72078)
8	T78801	1	HOUSING	(SUB FOR T72079)
9	T27879	1	BALL	-
10	T27880	1	PLUG	-
11	T27881	1	STOP	-
12	T32875	1	ROUND RETAINER	-
13	T31583	1	SPRING	REGULATOR VALVE
14	T27884	1	SPRING	TRIMMER VALVE
15	T38553	1	PLUG	TRIMMER VALVE
16	T27886	1	WASHER	(K) (K1)
17	T27887	1	FITTING	-
18	T27888	1	Spring	CUT OFF VALVE
19	T38978	1	SPOOL VALVE	CLUTCH CUTOFF
20	T29794	1	PLUG	-
21	A3917R	1	O-Ring	(K2)
22	T27890	1	WASHER	(K1) (K2)
23	T29795	1	SEAL	(K1) (K2)
24	T29796	1	PLUG	CUTOFF VALVE
25	AT26035	1	SEAL	-
26	T78800	1	SELECTIVE CONTROL VALVE	RANGE SELECTOR (SUB FOR T49474)
27	T27894	2	SPRING	-
28	D2361R	2	Ball	DETENT
29	T27893	1	FITTING	-
30	AT85153	1	SWITCH	NEUTRAL START, (SUB FOR R36265, AR85323 AND AR89691)
31	T16911	2	SHIM	-
32	15H638	1	Pipe Plug	1/8"
33	T35024	1	ADAPTER FITTING	-
34	R26385	1	PIN FASTENER	-
35	AT85153	1	SWITCH	REVERSE WARNING, (SUB FOR R36265, AR85323 AND AR89691)
36	AT25264	1	Fitting	OIL PRESSURE GUAGE
37	M41029	1	Snap Ring	(USE WITH T78801) (SUB FOR T78799)
38	-	1	Part 41	( AT65054, NO LONGER AVAILABLE)

CONTROL VALVE (TT3420-1 SERIES TRANSMISSION) (SERIAL NO. 339877- ) [01H12]
