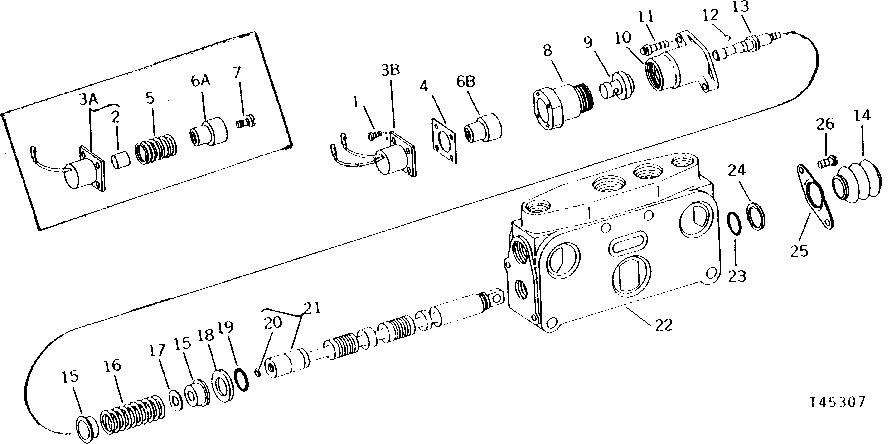

CONTROL VALVE LOADER BUCKET SECTION (SPOOL AND SOLENOID) [02E12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1307	4	SCREW	0.164" X 7/16"
2	-	1	Part 2	(SUB AT41715)
4	T42790	1	SHIM	.08 MM (.003")
4	T42791	1	SHIM	.13 MM (.005")
4	T42792	1	SHIM	.25 MM (.010")
5	T42785	1	SPRING	-
7	T42807	1	SCREW	-
8	AT41714	1	CAP	(SUB AT59798 AND T62469, THIS APPLICATION)
8	AT59798	1	CAP	-
9	T66588	1	RETAINER	(SUB FOR T42784)
10	T42803	1	CAP	-
11	T31036	2	SCREW	-
12	T42787	4	BALL	1/4" DIA.
13	T42804	1	SCREW	-
14	U44068	1	BOOT	-
15	T31042	2	ROUND RETAINER	-
16	T32364	1	SPRING	-
17	N31767	1	WASHER	-
18	T31031	1	WASHER	-
19	U11343	1	O-RING	(SUB FOR T42796)
20	R34812	1	O-Ring	(SUB FOR T42805)
21	-	1	Part 27	(SUB AT41729)
22	-	1	Part 28	(SUB AT41729)
23	R495R	1	O-Ring	(SUB FOR T57248)
24	T31037	1	WASHER	-
25	T31038	1	RETAINER	-
26	21H1140	2	SCREW	1/4" X 3/8"
..	AT41729	1	VALVE	(INCLUDES ALL PARTS ON THIS PAGE AND PAGE 55-10 EXCEPT AT52533, T54570, AT41726 AND AT47788)
..	AT54180	1	VALVE	(SUB AT59800)
..	AT59800	1	SPOOL VALVE	-
..	AT41735	1	KIT	SEAL REPAIR, LOADER BUCKET VALVE
3A	AT41715	1	SOLENOID	-
3B	AT52533	1	SOLENOID	-
6A	T42782	1	DETENT	-
6B	T54570	1	DETENT	(SUB AT59798 AND T62469)
6B	T62469	1	DETENT	-

CONTROL VALVE LOADER BUCKET SECTION (SPOOL AND SOLENOID) [02E12]
