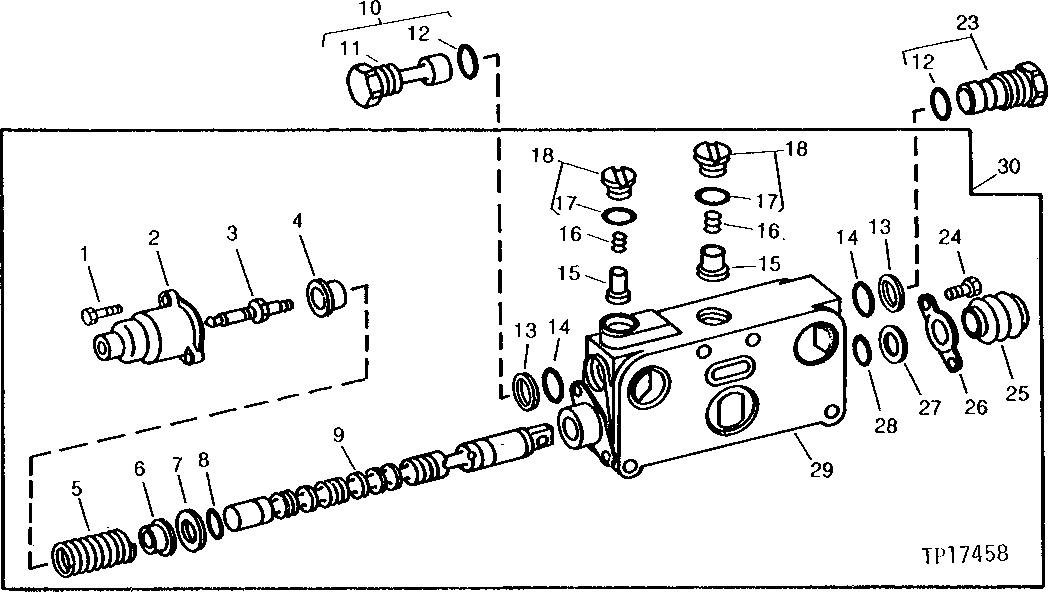

CONTROL VALVE LOADER BOOM SECTION (WITHOUT BOOM RAISE DETENT) [02E09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T31036	2	SCREW	-
2	AT30005	1	CAP	-
3	T31035	1	SCREW	-
4	T31034	1	ROUND RETAINER	-
5	T31033	1	EXTENSION SPRING	-
6	T31032	1	ROUND RETAINER	-
7	T31031	1	WASHER	-
8	T57247	1	O-Ring	(SUB FOR T42796 AND U11343, THIS APPLICATION)
9	-	1	Part 9	(SUB AT30004)
10	AT30012	1	PLUG	ASSEMBLY, RELIEF VALVE CAVITY WITH O-RING
11	T31047	1	PLUG	-
12	P51079	2	O-Ring	-
13	T42800	2	BACK-UP RING	-
14	H21957	2	O-Ring	-
15	T32362	1	PLUNGER	ANTI-CAVITATION
16	N85304	1	SPRING	-
17	U40745	1	O-Ring	(SUB FOR R375R)
18	AT41728	1	FITTING PLUG	ANTI-CAVITATION WITH O-RING
19	T74425	1	O-Ring	(SUB FOR T42798)
20	AT47354	1	FITTING PLUG	LIFT CHECK (SUB FOR AT41727)
21	T31041	1	SPRING	-
22	T31040	1	PLUNGER	LIFT CHECK
23	AT47788	1	RELIEF VALVE	-
24	21H1140	2	SCREW	1/4" X 3/8"
25	U44068	1	BOOT	-
26	T31038	1	RETAINER	-
27	T31037	1	WASHER	-
28	R495R	1	O-Ring	(SUB FOR T57248)
29	-	1	Part 29	(SUB AT30004)
30	AT30004	1	SPOOL VALVE	ASSEMBLY, FOUR-WAY FLOAT

CONTROL VALVE LOADER BOOM SECTION (WITHOUT BOOM RAISE DETENT) [02E09]

Нет текстового описания
