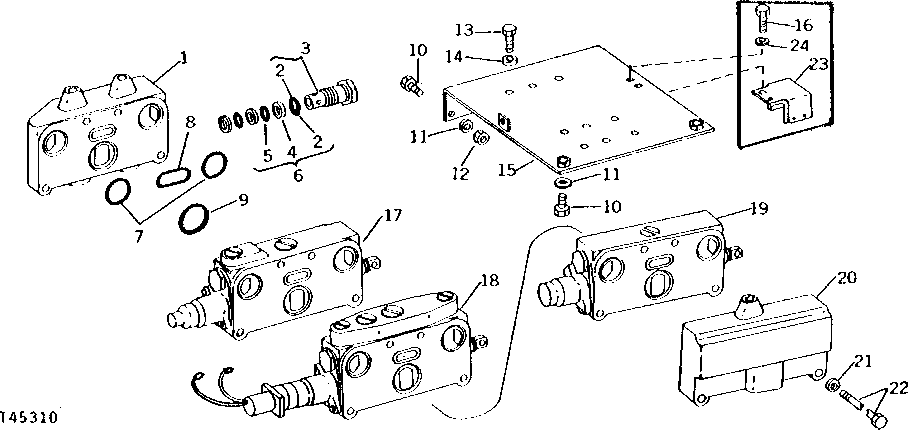

CONTROL VALVE ASSEMBLY (TWO-AND THREE-SPOOL) (SERIAL NO. 219643- ) [02E07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T50267	1	PLATE	PORT INLET
2	P51079	1	O-Ring	-
3	AT47787	1	RELIEF VALVE	-
4	T31039	1	BACK-UP RING	-
5	H21957	1	O-Ring	-
6	AT41732	1	KIT	PORT PLATE REPAIR
7	T31029	8	O-Ring	(SUB FOR T42808)
8	T38652	4	O-RING	-
9	U44062	4	O-Ring	-
10	19H2676	2	Cap Screw	3/8" X 1"
11	24H1304	6	WASHER	13/32" X 23/32" X 0.120"
12	14H812	2	NUT	3/8"
13	19H3385	3	Cap Screw	1/2" X 1-1/8"
14	12H301	3	Lock Washer	1/2"
15	-	1	Part 15	( AT45747 USE IF AVAILABLE)
16	19H1919	2	Cap Screw	1/4" X 5/8"
17	AT30004	1	SPOOL VALVE	BOOM SECTION
18	AT59800	1	SPOOL VALVE	BUCKET SECTION
18	AT41729	1	VALVE	BUCKET SECTION
18	AT54180	1	VALVE	(SUB AT59800)
19	AT30016	1	SPOOL VALVE	AUXILIARY SECTION
20	T50268	1	PLATE	PORT OUTLET
21	12H293	4	Lock Washer	7/16"
22	T31046	4	BOLT	(TWO-SPOOL)
22	T31049	4	CAP SCREW	(THREE-SPOOL)
23	-	1	Part 26	( AT39953 USE IF AVAILABLE)
24	24H1287	2	Washer	9/32" X 5/8" X 0.065"
..	AT41737	1	SEAL KIT	REPAIR (THREE-SPOOL) CONTAINS KIT NUMBERS AT41732, AT41734, AT41736, AT41733 AND AT41735
..	AT41739	1	SEAL KIT	REPAIR (TWO-SPOOL) CONTAINS KIT NUMBERS AT41732, AT41738, AT41734 AND AT41733
..	AT41735	1	KIT	SEAL REPAIR, BUCKET VALVE
..	AT41733	1	SEAL KIT	SEAL REPAIR, AUXILIARY VALVE
..	AT41734	1	SEAL KIT	SEAL REPAIR, BOOM VALVE
..	AT41738	1	KIT	SEAL BETWEEN SECTION REPAIR (TWO-SPOOL VALVE)
..	AT59801	1	CONTROL VALVE	(THREE-SPOOL)
..	AT52538	1	VALVE	(SUB AT59801) (THREE-SPOOL)
..	AT45749	1	CONTROL VALVE	(THREE-SPOOL)
..	AT59799	1	CONTROL VALVE	(TWO-SPOOL) (DOES NOT INCLUDE AUXILIARY SECTION)
..	AT52537	1	VALVE	(SUB AT59799) (TWO-SPOOL) (DOES NOT INCLUDE AUXILIARY SECTION)
..	AT45748	1	CONTROL VALVE	(TWO-SPOOL) (DOES NOT INCLUDE AUXILIARY SECTION)
