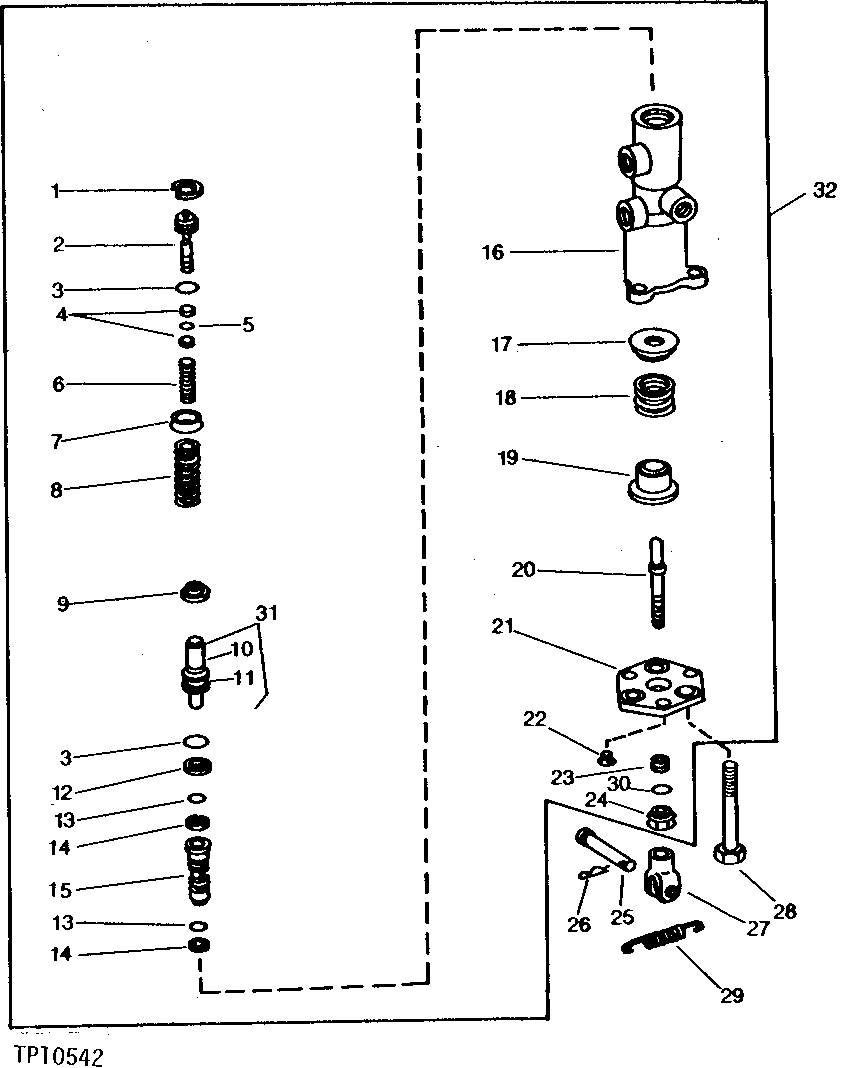

BRAKE VALVE (SERIAL NO. 248385- ) [02C11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T56140	1	SNAP RING	-
2	AT53912	1	PLUG	-
3	R495R	2	O-Ring	-
4	R34129	2	Back-Up Ring	(SUB FOR T56137, THIS APPLICATION)
5	A4365R	1	O-Ring	-
6	T56141	1	SPRING	(SUB T68798, T68797 AND T62704)
6	T56141	1	SPRING	(SUB T68798 AND T68797)
6	T68798	1	COMPRESSION SPRING	-
7	T56134	1	SEAL	-
8	T56135	1	SPRING	-
9	T56142	1	WASHER	-
10	T56138	1	POPPET	(SUB T68797 AND T68798)
10	-	1	Part 15	(SUB AT76489)
10	T68797	1	POPPET	-
10	T56138	1	POPPET	(SUB T68797, T68798 AND T62704)
11	T56136	1	SEAT	(SUB T62704, T68797 AND T68798)
11	T62704	1	SEAT	(SUB T70591)
11	T70591	1	VALVE SEAT INSERT	-
11	-	1	Part 19	(SUB AT76489)
12	T56143	1	Back-Up Ring	-
13	F3353R	2	O-Ring	-
14	T27963	2	BACK-UP RING	(SUB FOR T56127)
15	T62128	1	PISTON	-
15	T56139	1	PISTON	(SUB T62128)
16	T76925	1	HOUSING	(SUB FOR T56133)
17	T56128	1	WASHER	-
18	T56129	1	SPRING	(SUB T68632)
18	T77490	1	COMPRESSION SPRING	(SUB FOR T68632)
19	T56132	1	GUIDE	-
20	T56124	1	BOLT	-
21	T56126	1	PLATE	END
22	21H1226	3	SCREW	5/16" X 7/8"
23	T66585	1	BOOT	(SUB FOR T56123 AND T62127)
24	T76051	1	NUT	(SUB FOR T56125) (ALSO ORDER P50883)
25	T20528	1	PIN	HEADED
26	11M7081	1	Cotter Pin	2.500 X 20 MM
27	T34944	1	YOKE	-
28	19H3031	3	Cap Screw	3/8" X 2-1/2"
29	R48101	1	SPRING	-
30	P50883	1	Ring	(USE WITH T76051)
31	AT76489	1	POPPET	-
32	AT75397	1	VALVE	(SUB FOR AT67526 AND AT69646)

BRAKE VALVE (SERIAL NO. 248385- ) [02C11]
