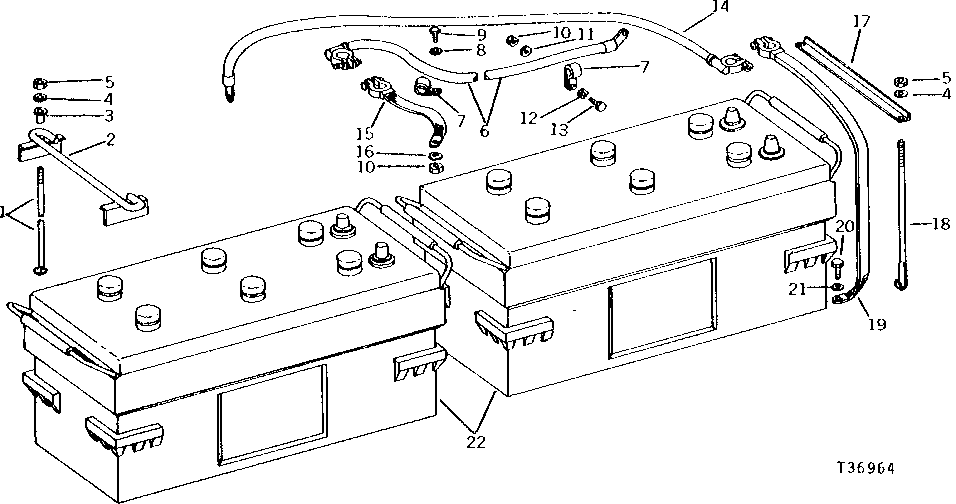

BATTERIES, HOLD DOWNS AND CABLES [02G12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03H2137	4	BOLT	1/4" X 10-1/4"
2	AT33408	2	CLAMP	-
3	M643T	4	BUSHING	-
4	24H1821	8	Washer	9/32" X 47/64" X 1/16"
5	14H786	8	Nut	1/4"
6	AT39644	1	BATTERY CABLE	-
7	R73384	2	Clamp	(SUB FOR T14787 OR (2) T24494)
8	24H1685	1	Washer	11/32" X 47/64" X 0.083"
9	19H2664	1	Cap Screw	5/16" X 3/4", (CLAMP TO BATTERY BOX)
10	14H812	2	NUT	3/8"
11	12H304	1	Lock Washer	3/8"
12	24H1302	1	Washer	13/32" X 11/16" X 0.035"
13	19H1648	1	Cap Screw	3/8" X 3/4", (CLAMP TO SIDE TANK REAR SUPPORT)
14	AT39645	1	BATTERY CABLE	BATTERY CONNECTOR
15	AT25418	1	GROUND CABLE	-
16	24H1301	1	Washer	13/32" X 9/16" X 0.065"
17	T40951	2	ANGLE	-
18	T15511	4	ROD	-
19	AT39643	1	GROUND CABLE	-
20	19H2284	1	Cap Screw	3/8" X 7/8"
21	24M7096	1	Washer	0.413" X 0.709" X 0.063"
22	TY21754	2	DRY CHARGED BATTERY	12-VOLT, 700 COLD CRANKING AMPS, AT -18°C (0°F), 145-MINUTE RESERVE CAPACITY AT 25 AMPS, (SUB FOR AU42915 AND TY6105)

BATTERIES, HOLD DOWNS AND CABLES [02G12]
