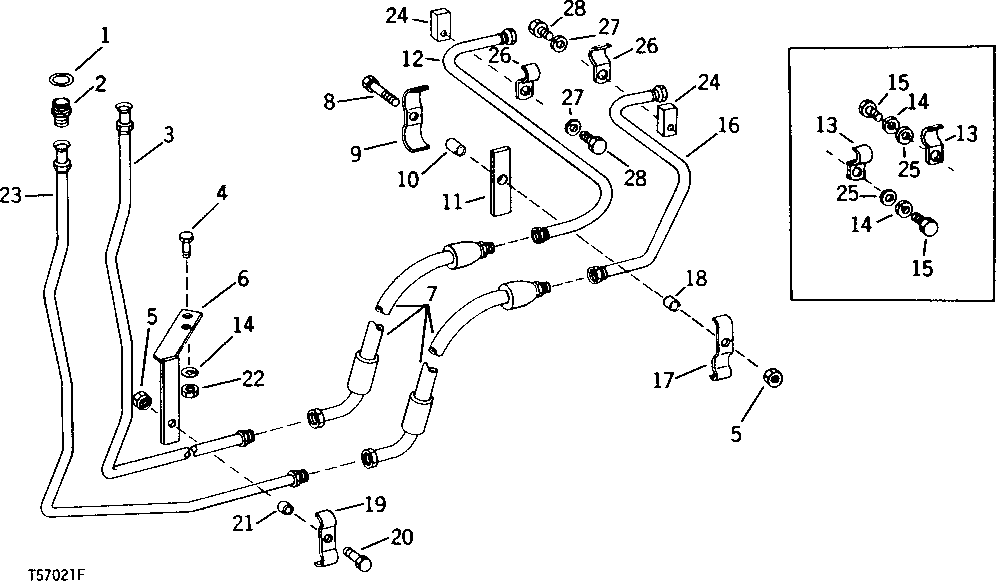

AUXILIARY CONTROL VALVE, HYDRAULIC OIL LINES [02E17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	2	O-Ring	-
2	T30933	2	ADAPTER FITTING	-
3	AT30020	1	LINE	(SUB AT46450)
3	AT46450	1	OIL LINE	-
4	19H1765	2	Cap Screw	3/8" X 1-3/4"
5	T11234	2	Lock Nut	-
6	AT30022	1	BRACKET	-
7	AT63318	2	HYDRAULIC HOSE	AUXILIARY FUNCTION CROSSOVER, (SUB FOR AT39342)
8	19H1912	1	Cap Screw	3/8" X 3-1/2"
9	T40739	1	CLAMP	-
10	28H1508	1	Spacer	0.493" X 0.675" X 1-1/4", 3/8" X 1-1/4"
11	T40740	1	STRAP	-
12	AT39343	1	LINE	AUXILIARY FUNCTION, UPPER
13	U16253	2	CLAMP	-
14	24H1652	4	Washer	13/32" X 11/16" X 7/64"
15	19H2549	2	Cap Screw	3/8" X 1-7/8"
16	AT39344	1	LINE	AUXILIARY FUNCTION, LOWER
17	T40741	1	CLAMP	-
18	28H1697	1	Spacer	0.493" X 0.675" X 3/4", 3/8" X 3/4"
19	T31056	1	Clamp	-
20	19H3217	1	Cap Screw	3/8" X 1-3/4"
21	28H3381	1	Spacer	0.493" X 0.675" X 5/8", 3/8" X 3/8"
22	14H812	2	NUT	3/8"
23	AT30021	1	LINE	(SUB AT46451)
23	AT46451	1	LINE	-
24	T40742	2	STRAP	-
25	24H1305	2	Washer	13/32" X 13/16" X 0.065"
26	T44593	2	CLAMP	-
27	28H1697	2	Spacer	0.493" X 0.675" X 3/4", 3/8" X 3/4"
28	19H3031	2	Cap Screw	3/8" X 2-1/2"

AUXILIARY CONTROL VALVE, HYDRAULIC OIL LINES [02E17]
