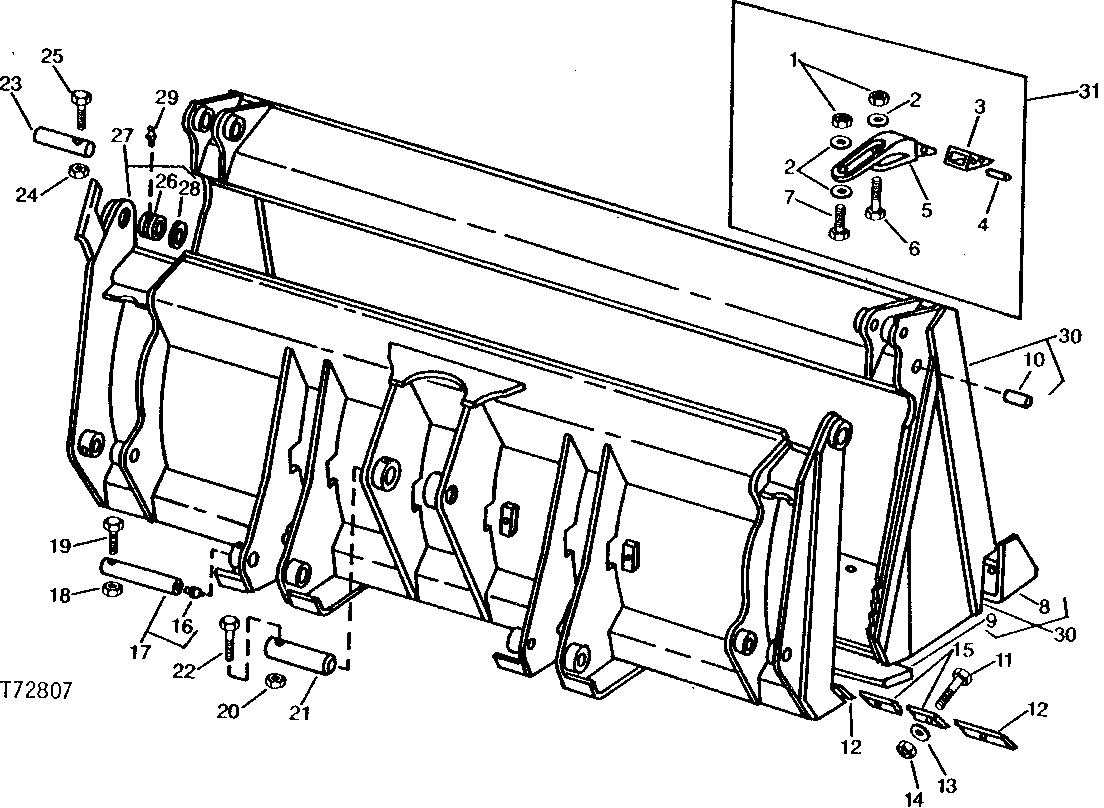

2-1/2-YARD (1.9 M3) MULTI-PURPOSE BUCKET [02F04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	K40016	20	Lock Nut	(SUB FOR A11353, THIS APPLICATION)
2	24H1400	30	Washer	25/32" X 1-5/8" X 1/4"
3	T29887	10	TOOTH	-
4	TP160	10	Pin	(SUB FOR T25101)
5	-	10	Part 5	(SUB AT65135)
6	19H2646	10	CAP SCREW	3/4" X 3-5/8"
7	19H2431	10	CAP SCREW	3/4" X 2-1/4", (SUB FOR 19H1782)
8	T35327	1	CUTTING EDGE	(B)
9	T44615	1	CUTTING EDGE	(B)
10	U44332	2	BUSHING	(B)
11	10H1047	15	Bolt	(B) 3/4" X 2-1/4"
12	T31148	2	CUTTING EDGE	(B)
13	12H236	15	Lock Washer	(B) 3/4"
14	14H794	15	Nut	(B) 3/4"
15	T44639	1	CUTTING EDGE	(B) CENTER
16	T162396	2	Lubrication Fitting	(B) STRAIGHT, 1/8", (SUB FOR JD7759 OR JD7798)
17	AT27191	2	PIN FASTENER	(B)
18	U44915	2	Lock Nut	(B) (SUB FOR BP14495)
19	19H3170	2	Cap Screw	(B) 5/8" X 4-1/2"
20	T25879	1	Nut	(B)
21	T39958	1	PIN	(B) (BUCKET LINK TO BUCKET)
22	19H3210	1	Cap Screw	(B) 3/4" X 5-1/4", (SUB FOR 19H1892)
23	T49188	2	PIN	(B) CLAM TO BUCKET
24	U12622	2	LOCK NUT	(B)
25	19H3586	2	Cap Screw	(B) 1/2" X 4-1/4"
26	T58510	2	Bushing	(B) (SUB FOR U44332, THIS APPLICATION)
27	-	1	Part 27	(B) ( AT43509 USE IF AVAILABLE)
28	24H1595	1	Washer	(B) 2-1/16" X 3" X 0.075"
29	JD7797	2	Lubrication Fitting	STRAIGHT, 1/4"
30	AT43506	1	CLAMSHELL BUCKET	(B) (SUB AT58633 IF AVAILABLE)
30	-	1	Part 31	(B) ( AT58633 USE IF AVAILABLE)
31	AT65135	1	TOOTH	FOR USE WITH 2-1/2-YARD (1.9 M3) GENERAL PURPOSE BUCKET, 3-YARD (2.3 M3) GENERAL PURPOSE BUCKET, 2-1/2-YARD (1.9 M3) MULTI-PURPOSE BUCKET WITH RACK (SUB FOR AT34276)
31	T29886	1	BUCKET TOOTH ADAPTER	-
..	AT43525	1	LOADER BUCKET	(1.9 M3) MULTI-PURPOSE

2-1/2-YARD (1.9 M3) MULTI-PURPOSE BUCKET [02F04]
