Открытый узел

Pilot Controller Kit, 2 Function

Pilot Controller Kit, 2 Function

Pilot Controller Kit, 2 Function

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Pilot Controller Kit, 2 Function

Нет текстового описания

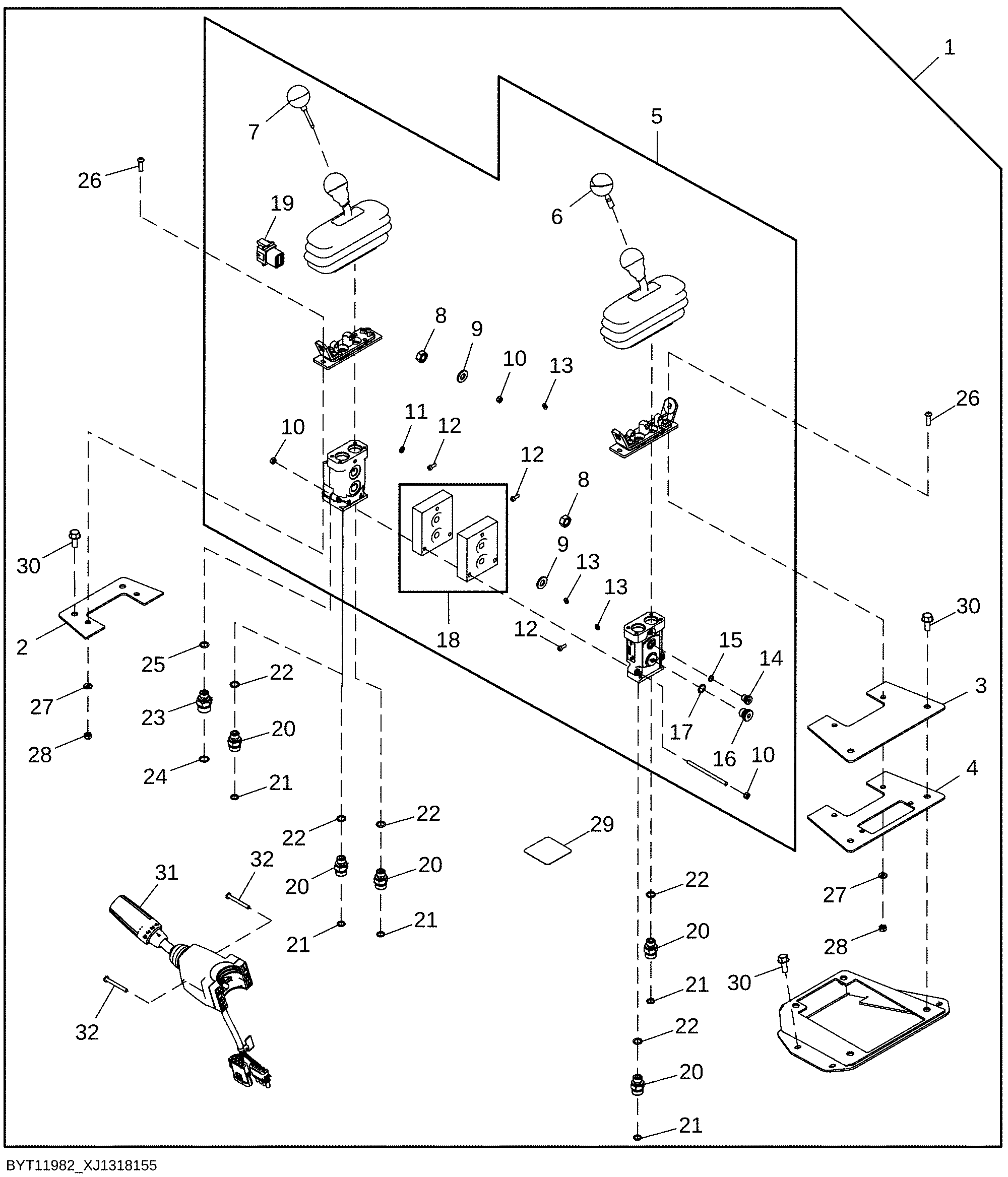

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT542769	1	Software	Order Software Part through JDPoint™
1	BYT11982	1	Valve Kit	Whole Goods
2	T422505	1	Plate	-
3	T422506	1	Plate	-
4	T444323	1	Plate	-
5	AT492473	1	Hydr./Pilot Control Valve	Pilot Controller 2 Function, INCLUDES AT421032, T322849, (2) AT413672, (2) T322850 AND (3) AT413674
5	AT421032	1	Seal Kit	-
5	AT413674	3	Solenoid	-
5	AT413672	2	Boot	Protect Cover
5	T322849	1	Bolt	-
5	T322850	2	Bolt	-
6	AT421036	1	Valve Kit	Handle Assembly Normal Kit
7	AT421037	1	Valve Kit	Hand Assembly With Switch Kit
8	14M7274	2	Nut	M10
9	24M7239	2	Washer	10.700 X 21 X 2.500 mm
10	14M7297	7	Nut	M5
11	24M7027	1	Washer	5.300 X 10 X 1 mm
12	19M7702	3	Screw	M4 X 10
13	24M7117	3	Washer	4.300 X 9 X 0.800 mm
14	64M1015	1	Drain Plug	-
15	51M7039	1	O-Ring	8.100 X 1.600 mm
16	64M1017	1	Drain Plug	-
17	51M7041	1	O-Ring	11.300 X 2.200 mm
18	AT398830	1	Hydr./Pilot Control Valve	-
19	57M10877	1	Elec. Connector Housing	-
20	38H5002	5	Adapter Fitting	-
21	T77613	5	O-Ring	-
22	51M7041	5	O-Ring	11.300 X 2.200 mm
23	38H5009	1	Adapter Fitting	-
24	T77857	1	O-Ring	-
25	51M7041	1	O-Ring	11.300 X 2.200 mm
26	21M7632	4	Socket Head Screw	M6 X 20
27	24M7293	4	Washer	6.500 X 13 X 1.600 mm
28	14M7272	4	Nut	M6
29	T363283	1	Label	Fingertip Controls
30	19M8331	8	Screw	M8 X 20
31	57M8023	1	Elec. Connector Housing	X70
31	R78060	6	Elec. Connector Terminal	-
31	R78066	2	Elec. Connector Terminal	-
31	R78061	1	Elec. Connector Terminal	X72
31	57M10489	1	Elec. Connector Cable Seal	-
31	57M7534	1	Elec. Connector Housing	X71
31	R78065	2	Elec. Connector Terminal	-
31	AT412433	1	Wiring Harness	-
31	R78060	1	Elec. Connector Terminal	-
31	R78059	2	Elec. Connector Seal	-
31	R78061	2	Elec. Connector Terminal	-
31	AT395263	1	Wiring Harness	FNR Jumper Harness
31	R78059	6	Elec. Connector Seal	-
31	RE12366	1	Electrical Connector Assy	A
31	R78059	6	Elec. Connector Seal	-
31	R78061	6	Elec. Connector Terminal	-
31	R78056	1	Electrical Connector Assy	C
31	R78059	1	Elec. Connector Seal	-
31	R78061	1	Elec. Connector Terminal	B
31	AT412432	1	Wiring Harness	FNR Jumper Harness
31	AT378210	1	Switch	FNR Switch, INCLUDES AT412432, AT412433 AND AT395263
32	21M7261	2	Screw	M5 X 45
