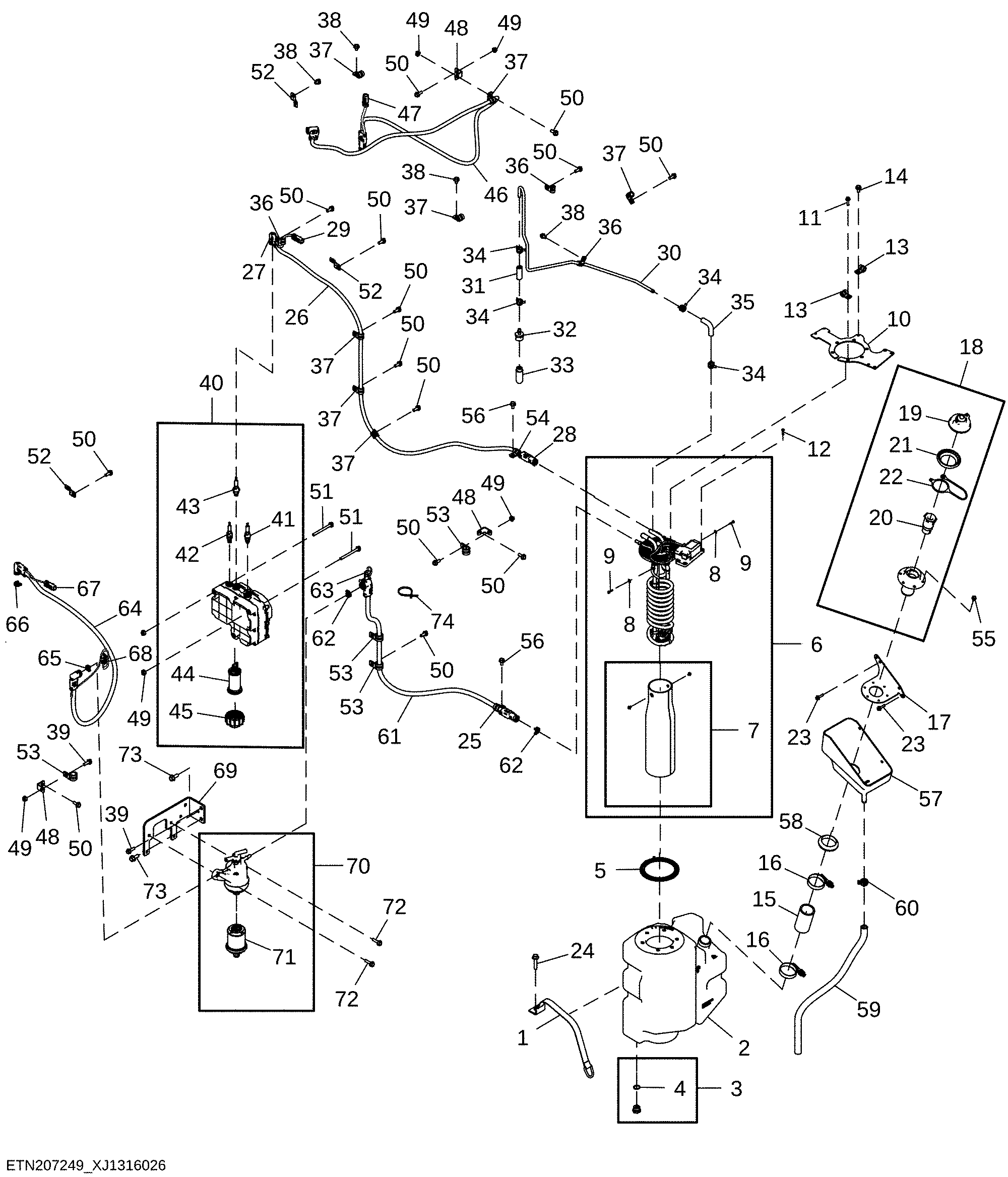

Diesel Exhaust Filter (DEF) Tank and Lines (Engine 6068HYN05-)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT415056	1	Strap	-
2	AT458161	1	DEF Tank	-
3	AT409249	1	Drain Plug	-
4	R47151	1	O-Ring	-
5	T373935	1	Gasket	-
6	AT491603	1	DEF Tank Header Assembly	-
7	AT483376	1	DEF Baffle	Baffle Kit
8	24M7333	2	Washer	5.300 X 10 X 1 mm
9	19M10320	2	Cap Screw	M4 X 16
10	AT473114	1	Bracket	DEF Header
11	19M10562	6	Screw	M6 X 25
12	21M7647	4	Socket Head Screw	M5 X 20
13	T74412	2	Clamp	-
14	19M7865	1	Screw	M8 X 16
15	T402676	1	Hose	DEF Tank
16	RE67208	2	Clamp	-
17	T404112	1	Bracket	DEF Fill, Bracket
18	DZ122990	1	Filler Neck	DEF Fill, Non Locking
19	AT472915	1	Filler Cap	-
20	AT472918	1	Insert	Magnetic Insert
21	T386561	1	Guard	Wiper Guard
22	T386562	1	Retainer	Lanyard Retainer
23	19M10562	2	Screw	M6 X 25
24	19M7806	1	Screw	M10 X 50
25	T76252	1	Clamp	-
26	RE561048	1	DEF Line	LGTH = 1750 mm , INCLUDES R536735 AND R536734
26	R536735	1	Clip	-
26	R536734	1	Clip	-
27	RE561047	1	DEF Line	-
28	RE561049	1	DEF Line	-
29	57M9777	1	Elec. Connector Housing	-
30	T422417	1	Tube	-
31	-	1	Part 33	MAKE FROM T319228, CTL 0.2 ft (50 mm)
32	H216170	1	Fitting	-
33	H216169	1	Breather	Fuel Tank
34	R133839	4	Clamp	-
35	T422579	1	Hose	DEF Tank Header Assembly
36	T269643	5	Clamp	-
37	T269640	15	Clamp	-
38	19M7864	7	Screw	M8 X 12
39	19M7867	4	Screw	M8 X 25
40	DZ121771	1	DEF Dosing Unit Pump	-
41	RE549603	1	Adapter Fitting	Supply Module Inlet
42	RE549604	1	Adapter Fitting	Supply Module Outlet
43	RE549605	1	Adapter Fitting	Supply Module Backflow
44	DZ114640	1	Filter Kit	DEF Injection Pump
45	RE555351	1	Cap	-
46	RE561046	1	DEF Line	LGTH = 2250 mm , Pressure Line, INCLUDES 57M9777
47	57M9777	1	Elec. Connector Housing	-
48	T422580	4	Bracket	-
49	14M7524	7	Flange Nut	M8
50	19M7866	22	Screw	M8 X 20
51	19M9843	3	Screw	M8 X 90
52	57M8736	4	Elec. Connector Accessory	-
53	T269641	6	Clamp	-
54	T74412	1	Clamp	-
55	19M10878	6	Screw	M6 X 10
56	19M7865	2	Screw	M8 X 16
57	T442850	1	Guard	-
58	T442851	1	Seal	-
59	-	1	Part 61	Drain Hose, MAKE FROM TY22328, CTL 620 mm (2.03 ft)
60	T184924	1	Hose Clamp	-
61	DZ118595	1	DEF Line	LGTH = 1250 mm , Suction Line, INCLUDES (2) R536734 AND 57M9776
62	R536734	2	Clip	-
63	57M9776	1	Elec. Connector Housing	-
64	DZ118473	1	DEF Line	LGTH = 1300 mm , Suction Jumper, INCLUDES R536735, R536734, 57M9776 AND 57M9772
65	R536735	1	Clip	-
66	R536734	1	Clip	-
67	57M9776	1	Elec. Connector Housing	-
68	57M9772	1	Elec. Connector Housing	-
69	AT527721	1	Bracket	Inline DEF Filter
70	DZ118548	1	Filter	DEF Inline Filter Assembly
71	DZ110513	1	Filter Kit	-
72	19M7868	2	Screw	M8 X 30
73	19M7785	2	Screw	M10 X 25
74	T364904	1	Tie Band	-
