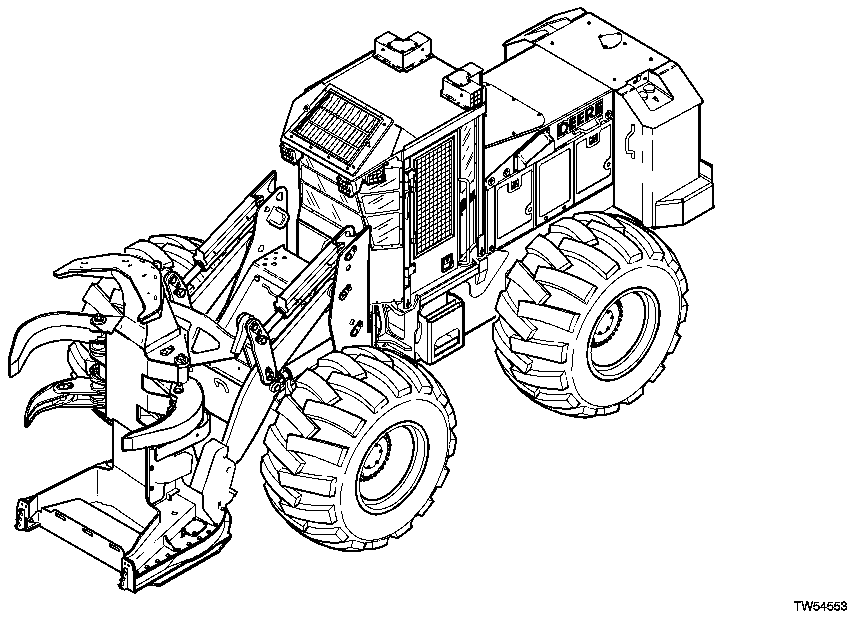

643J and 843J Wheeled Feller Bunchers (Worldwide Edition)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	08B YZ18632 YZ19219	-
-	-	1	37 ARCH OR BOOM OR CRANES	-
-	-	1	21 MAIN HYDRAULIC SYSTEM	-
-	-	1	20 SAFETY, CONVIENIENCE AND MISC.	-
-	-	1	19 SHEET METAL AND STYLING	-
-	-	1	18 OPERATOR'S STATION	-
-	-	1	17 FRAME, CHASSIS OR SUPPORTING STRUCTURE	-
-	-	1	16 Vehicle Electrical System	-
-	-	1	13 MISCELLANEOUS VEHICLE	-
-	-	1	11 PARKING BRAKES	-
-	-	1	10 SERVICE BRAKES	-
-	-	1	9 STEERING SYSTEM	-
-	-	1	1 WHEELS 1	-
-	-	1	08A Transfer Drive (Includes Splitters)	-
-	-	1	5 ENGINE AUXILIARY SYSTEM	-
-	-	1	03B Transmission YZ17262	-
-	-	1	03A Transmission 00	-
-	-	1	02D 1200 TeamMate™ II Rear Axle YZ19003	-
-	-	1	02C 1400 TeamMate™ II Front Axle YZ19002	-
-	-	1	02B 1200 TeamMate™ II Front Axle YZ19001	-
-	-	1	02A Axles, Differentials & Suspension Systems 00	-
-	-	1	04B Engine 6068HTJ55-RE524707	-
-	-	1	04A Engine 6068HTJ54-RE523726	-

643J and 843J Wheeled Feller Bunchers (Worldwide Edition)

John Deere › FELLER BUNCHER
