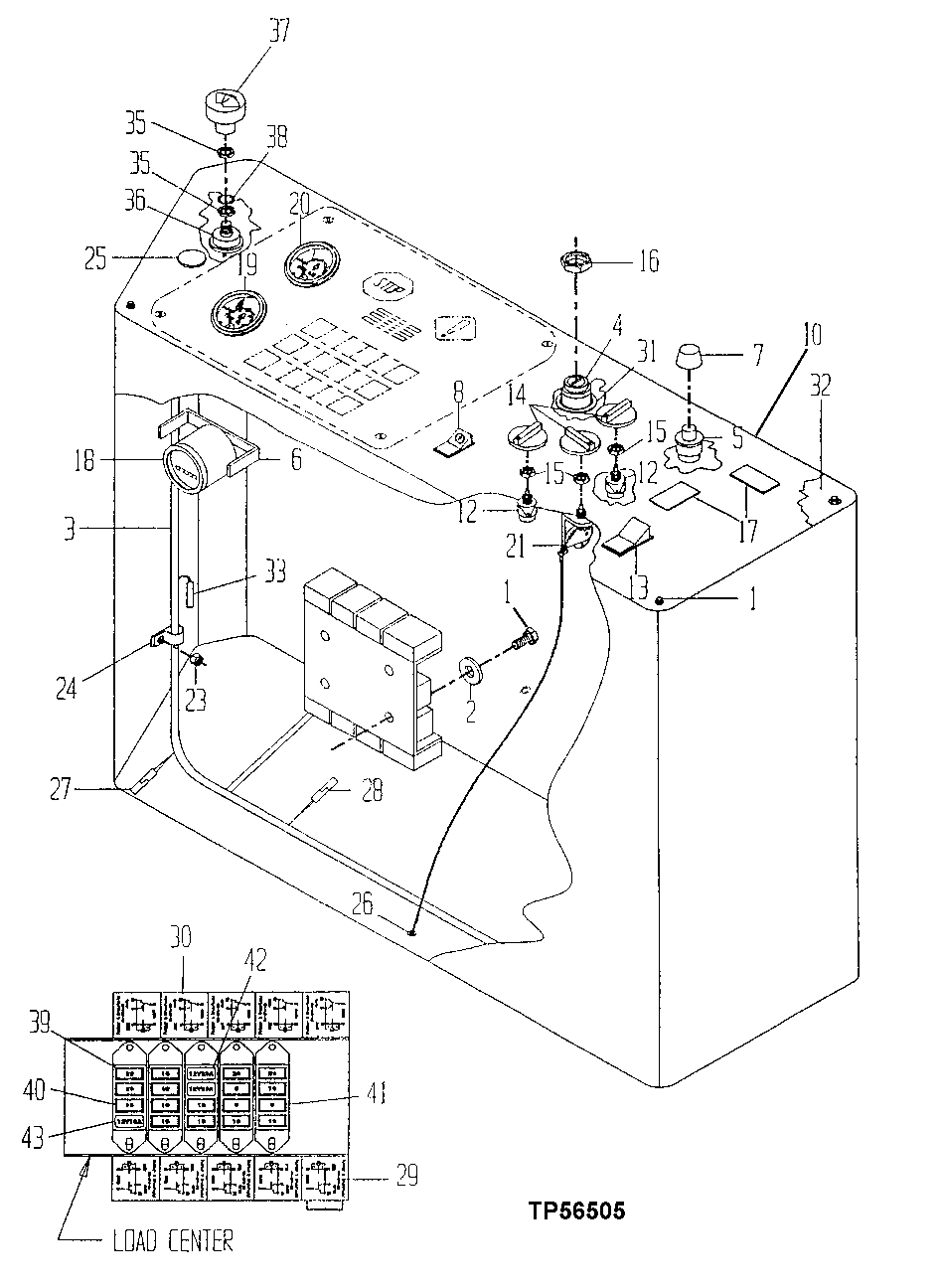

Dash Panel Switches and Gauges (788774 - 814010)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1227	6	Cap Screw	1/4" X 1/2"
2	12H302	2	Lock Washer	1/4"
3	AT168980	1	Wiring Harness	(CONSOLE)
3	AT170016	1	Wiring Harness	(CONSOLE)
3	AT201330	1	Wiring Harness	(CONSOLE)
4	AT195301	1	Switch	(SUB FOR AT145931)(STARTER)
5	AT25258	1	SWITCH	(MOMENTARY)
6	-	1	Part 8	( T82185 NO LONGER AVAILABLE)
7	T55501	1	Cap	-
8	AT186330	1	Switch	(PARK BRAKE), (SUB FOR AT151926, THIS APPLICATION)
9	AT163079	1	Switch	(DIFF LOCK)
9	AT162118	1	Plug	-
10	AT214634	1	Plate	-
11	AT129467	1	Switch	(WIPER)
11	AT133046	1	Switch	(WIPER)
12	AL36529	1	Switch	(BLOWER)
13	AT151927	1	Switch	(AIR CONDITIONING SHUTOFF)
14	AL58295	1	Knob	-
15	E46066	2	Nut	-
16	R44342	1	Nut	-
17	AT162118	2	Plug	-
18	AT86509	1	Hour Meter	-
19	AT144133	1	Temperature Gauge	(TRANSMISSION OIL)
20	AT104755	1	TEMPERATURE GAUGE	(WATER TEMPERATURE)
21	AT158984	1	Cable	-
22	19H1648	1	Cap Screw	3/8" X 3/4"
23	T11234	1	Lock Nut	-
24	T75276	1	Clamp	-
26	H89842	1	Grommet	-
27	AT103399	2	Diode	-
28	AR94101	2	Diode	-
29	AR91168	1	Relay	-
30	AT168878	8	Relay	(SUB FOR AT156759)
31	R52725	1	Electrical Connector Assy	Ground
32	T147444	1	Label	-
33	AT147802	1	Diode	-
34	AT168689	1	Wiring Harness	(DIFF LOCK)
35	R44165	1	Lock Nut	-
37	AT134895	1	Knob	-
38	12H325	1	Lock Washer	7/16"
39	57M7120	4	Fuse	(20 AMP)
40	57M7121	10	Fuse	(10 AMP)
41	57M7125	3	Fuse	(5 AMP)
42	T103834	2	Circuit Breaker	(20 AMP)
43	T103463	1	Circuit Breaker	(10 AMP)

Dash Panel Switches and Gauges (788774 - 814010)
