Открытый узел

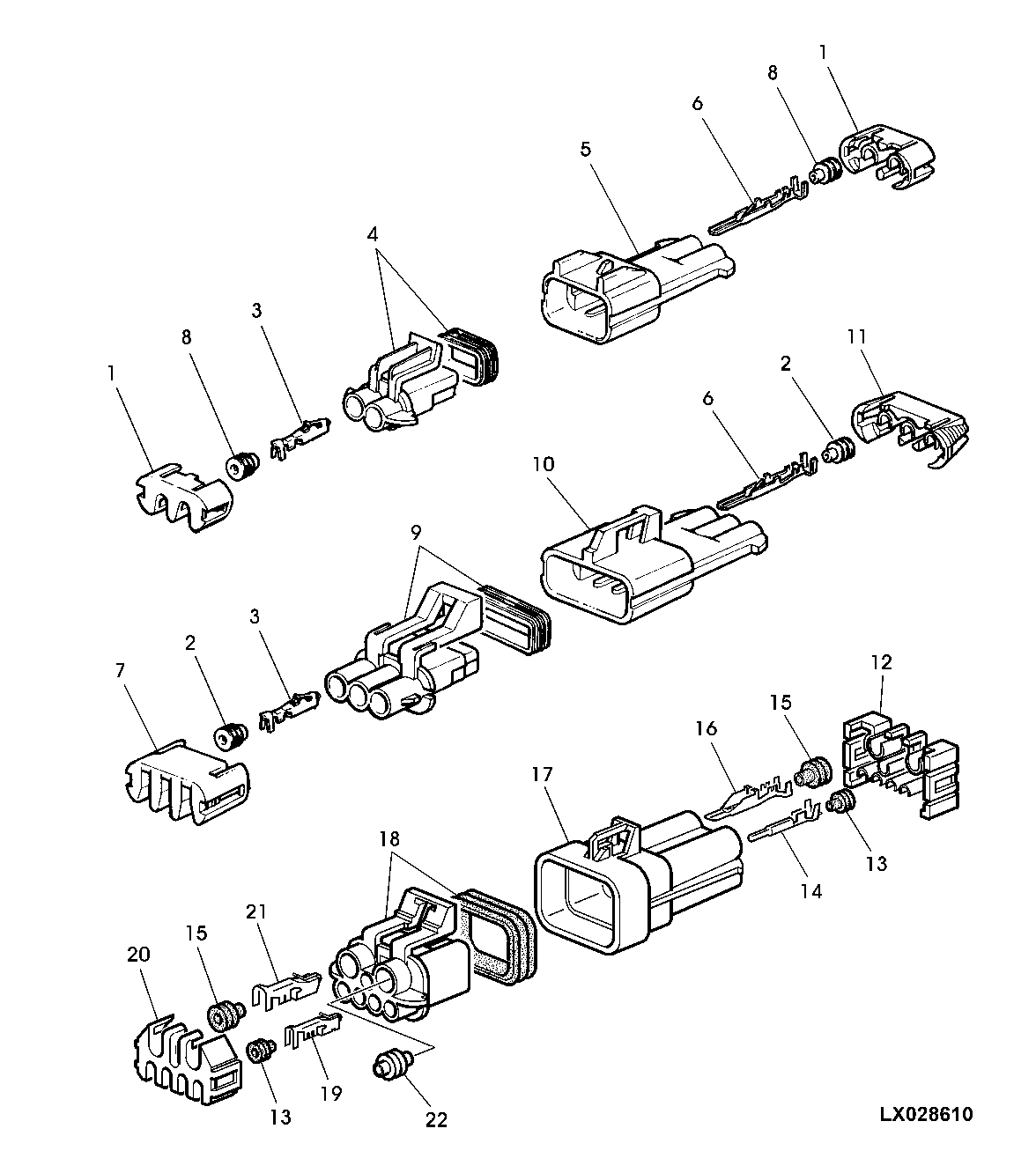

CONNECTORS 2-, 3 OR 7-TERMINAL (METRI PACK)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7306	1	Elec.Connect Locking Device	-
2	R78059	1	Elec. Connector Seal	(CABLE GAUGE PLUG WIDTH) (Green) -1.5MM²
2	R78063	1	Elec. Connector Seal	(CABLE GAUGE PLUG WIDTH) (Gray) -2.5MM²
2	R78062	1	Elec. Connector Seal	(CABLE GAUGE PLUG WIDTH) (Blue) -4MM²
3	57M7298	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 1-2.5MM² /3.9MM
3	57M7299	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 3-4MM² /3.9MM
4	57M7309	1	Elec. Connector Housing	-
5	57M7304	1	Elec. Connector Housing	-
6	57M7277	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 1-2MM² /3.9MM
6	57M7286	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 2.5-4MM² /3.9MM
7	57M7274	1	Elec. Connector Accessory	-
8	R78063	2	Elec. Connector Seal	(CABLE GAUGE PLUG WIDTH) (Gray) -2.5MM²
9	57M7280	1	Elec. Connector Housing	-
10	57M7305	1	Elec. Connector Housing	-
11	57M7307	1	Electrical Connector Assy	-
12	57M7699	1	Elec. Connector Terminal	-
13	57M7493	1	Elec. Connector Seal	(CABLE GAUGE PLUG WIDTH) (White) -1MM²
14	57M7252	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0.5-1MM² /1.5MM
15	57M7292	1	Elec. Connector Seal	(CABLE GAUGE PLUG WIDTH) (Yellow) -1MM²
15	57M7576	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) (Red) -3.7MM²
15	57M7706	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) (Orange) -5MM²
16	57M7584	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 1-1.5MM² /4.8MM
16	57M7583	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 2-3MM² /4.8MM
17	57M7697	1	Electrical Connector Assy	-
18	57M7696	1	Elec. Connector Housing	-
19	R104846	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0.5-1MM² /1.5MM
20	57M7698	1	Elec. Connector Terminal	-
21	57M7581	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 1-2MM² /4.8MM
21	57M7588	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 3-5MM² /4.8MM
22	57M7574	1	Elec. Connector Terminal	-

CONNECTORS 2-, 3 OR 7-TERMINAL (METRI PACK)

Нет текстового описания
