Открытый узел

CONNECTOR (42 OR 62-TERMINAL)

CONNECTOR (42 OR 62-TERMINAL)

CONNECTOR (42 OR 62-TERMINAL)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

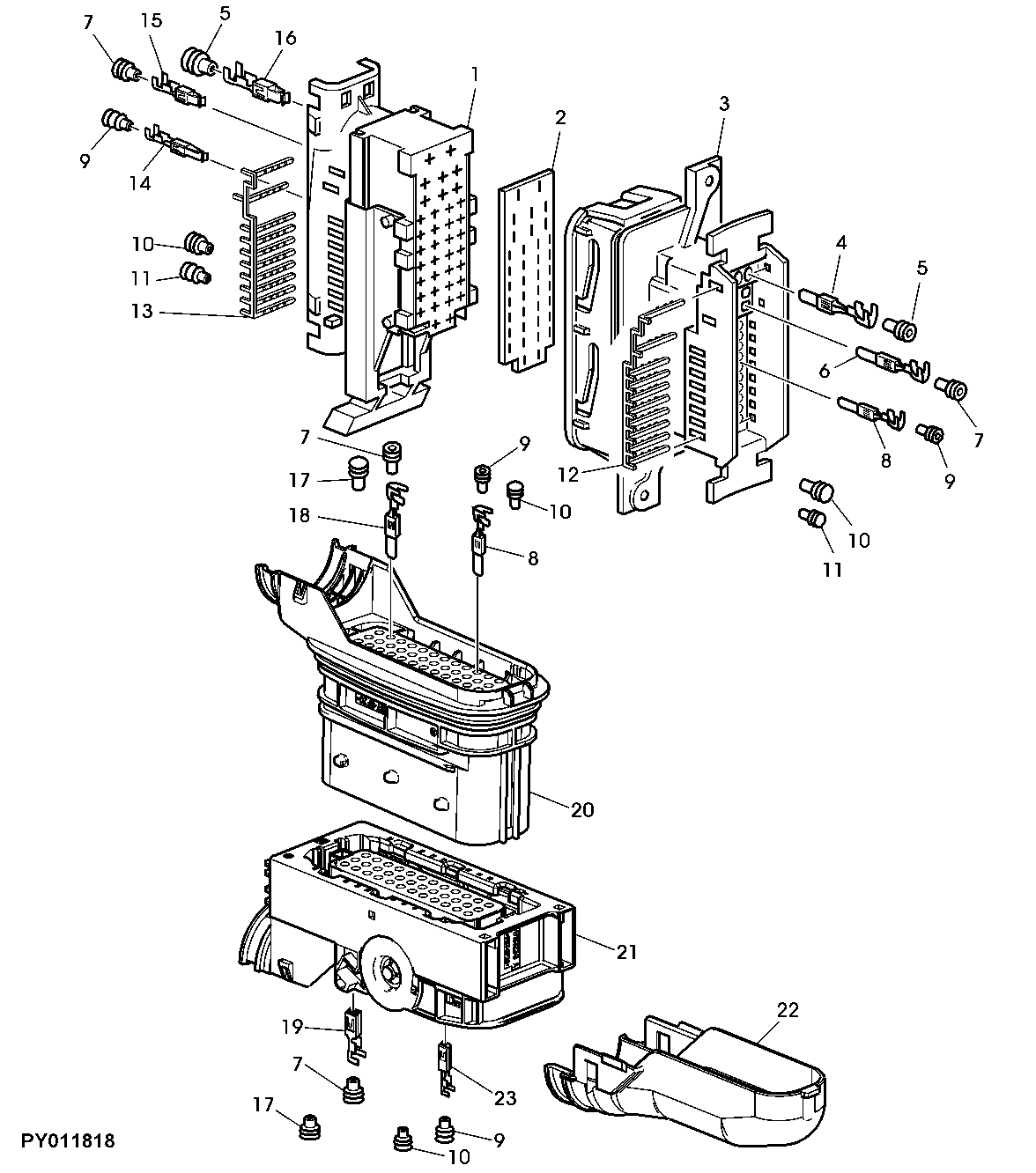

CONNECTOR (42 OR 62-TERMINAL)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8197	1	Elec. Connector Housing	BLUE, BLEU, BLAU, BLU, AZUL, BLA
1	57M8195	1	Elec. Connector Housing	BLACK, NOIR, SCHWARZ, NERO, NGRO, SVART
1	57M8196	1	Elec. Connector Housing	GRAY, GRIS, GRAU, GRIGIO, GRA
2	57M8098	1	Elec. Connector Terminal	-
3	57M8167	1	Elec. Connector Housing	BLACK, NOIR, SCHWARZ, NERO, NGRO, SVART
3	57M8198	1	Elec. Connector Housing	GRAY, GRIS, GRAU, GRIGIO, GRA
3	57M8199	1	Elec. Connector Housing	BLUE, BLEU, BLAU, BLU, AZUL, BLA
4	57M8099	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0 5-1MM² /5 8MM
4	57M8100	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 1 5-2 5MM² /5 8MM
4	57M8101	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 2 5-4MM² /5 8MM
5	57M8105	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0 5-2 5MM²
5	57M8106	1	Elec. Connector Seal	(CABLE GAUGE PLUG WIDTH) 2 5-4MM²
6	57M8077	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0 5-1MM² /2 8MM
6	57M7351	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 1 5-2 5MM² /2 8MM
7	57M7400	1	Elec. Connector Seal	(CABLE GAUGE PLUG WIDTH) 0 5-1MM² /2 8MM
7	57M7399	1	Elec. Connector Seal	(CABLE GAUGE PLUG WIDTH) 1 5-2 5MM² /2 8MM
8	57M8732	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0 5-1MM² /1 6MM
9	57M7402	1	Elec. Connector Cable Seal	(CABLE GAUGE PLUG WIDTH) -1MM² /1 6MM
9	57M8241	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0 5-0 75MM² /1 6MM
10	57M7401	1	Elec. Connector Cavity Plug	(CABLE GAUGE PLUG WIDTH) 1 6MM
11	57M7403	1	Elec. Connector Cavity Plug	-
12	57M8096	1	Retainer	-
13	57M8097	1	Retainer	-
14	57M7398	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0 5-1MM² /1 6MM
15	57M8078	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0 5-1MM² /2 8MM
15	57M8079	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 1 5-2 5MM² /2 8MM
16	57M8103	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 1 5-2 5MM² /5 8MM
16	57M8104	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 2 5-4MM² /5 8MM
16	57M8102	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0 5-1MM² /5 8MM
17	57M8734	1	Elec. Connector Seal	(CABLE GAUGE PLUG WIDTH) 2 8MM
18	57M9042	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0 5-1MM² /2 8MM
18	57M7351	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 1 5-2 5MM² /2 8MM
19	57M8585	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 1 5-2 5MM² /2 8MM
20	57M8731	1	Elec. Connector Housing	-
21	57M8730	1	Elec. Connector Housing	-
22	57M8738	1	Elec. Connector Accessory	-
23	57M8584	1	Elec. Connector Terminal	(CABLE GAUGE PLUG WIDTH) 0 5-1MM² /1 6MM
