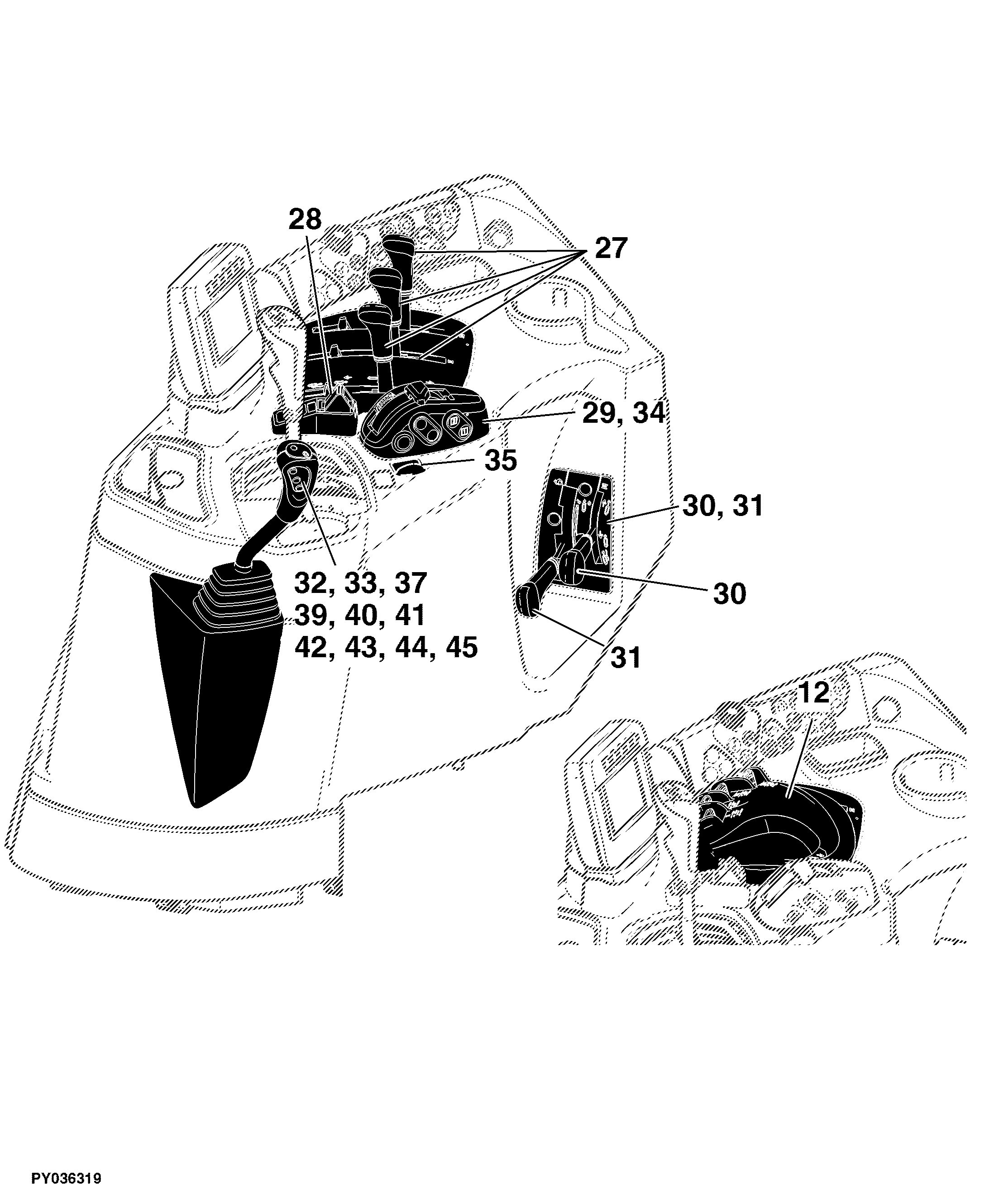

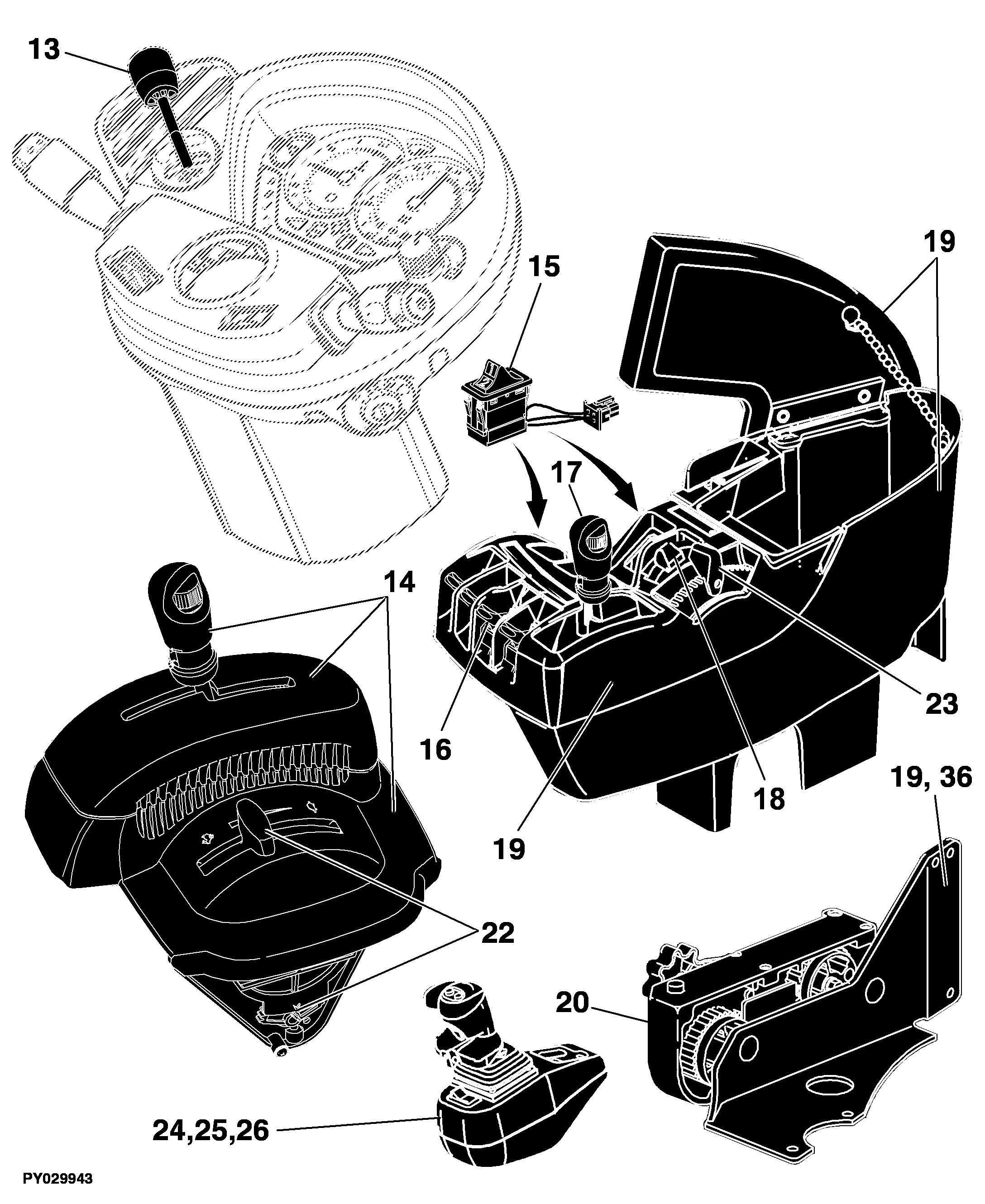

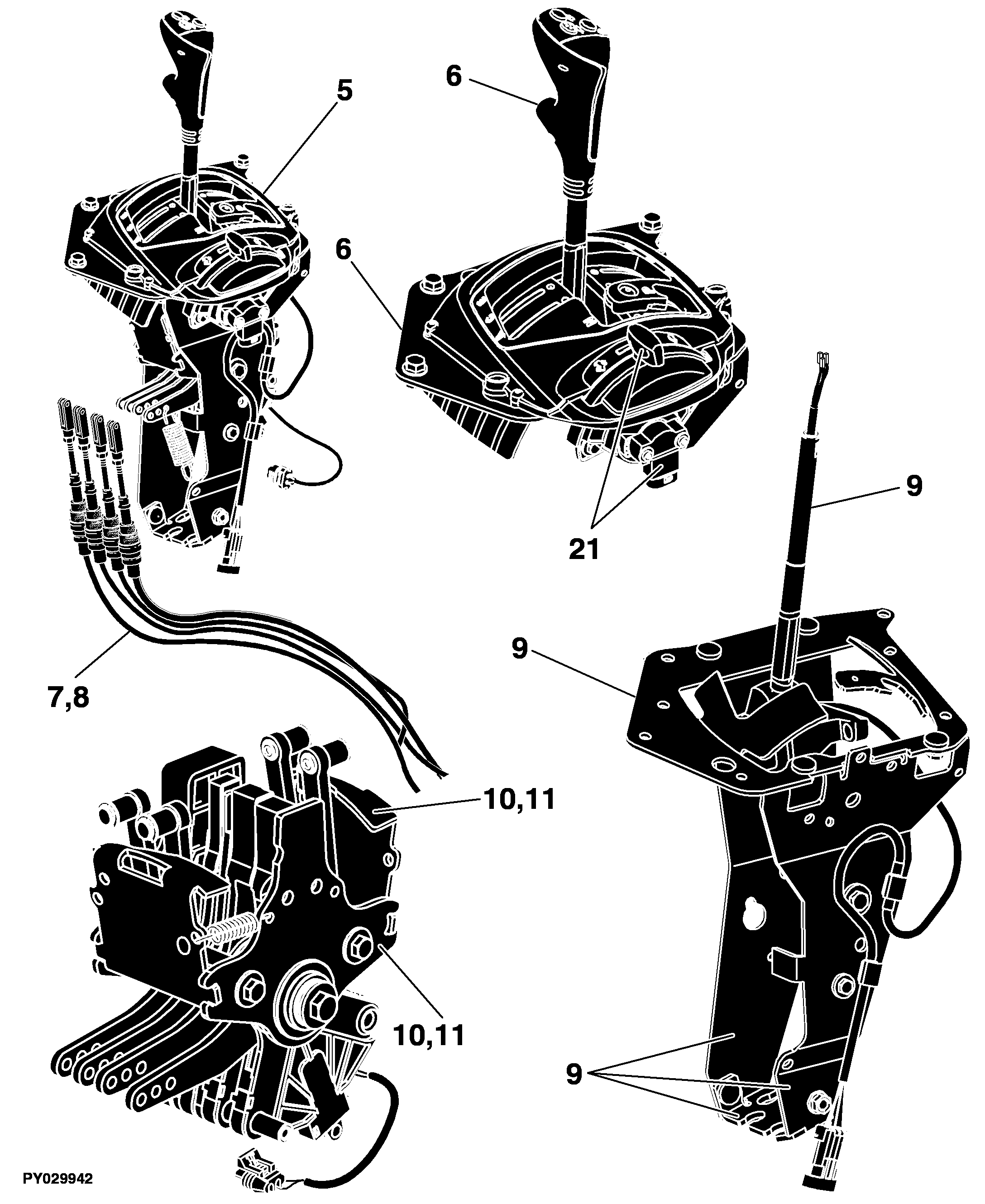

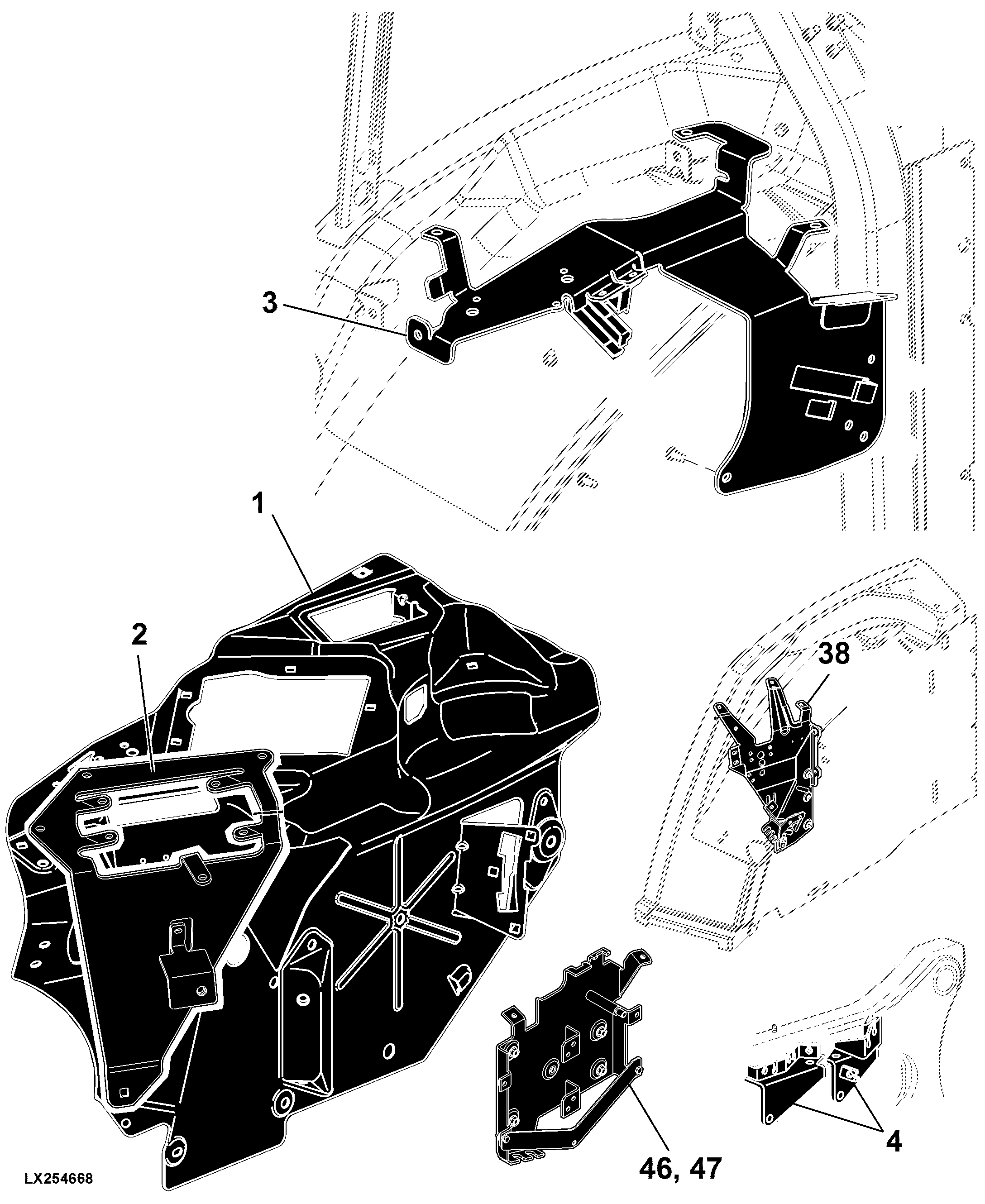

Большое обновление пильных узлов

Смотреть

Открытый узел

92 Operators Station, Shift Controls

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	ROCKSHAFT CONTROL (COMMAND ARM)	-
-	-	1	MULTI-FUNCTION LEVER ON SHIFT CONSOLE WITH SELECTIVE CONTROL VALVES (SCV) POS. 3 + 4	-
-	-	1	MULTI-FUNCTION LEVER, ARMREST INTEGRATED	-
-	-	1	Multi-Function Lever, Mechanical ICV, W/ 2-Functions, W/ Diverter Shifting, W/ Memo Button	-
-	-	1	Multi-Function Lever, Mechanical ICV, W/ 2-Functions, W/ Diverter Shifting, W/ Memo Button, W/ Gear Shift Switches	-
-	-	1	Multi-Function Lever, Mechanical ICV, W/ 3-Functions, W/ Diverter Shifting, W/ Memo Button	-
-	-	1	Multi-Function Lever, Mechanical ICV, W/ 3-Functions, W/ Diverter Shifting, W/ Memo Button, W/ Gear Shift Switches	-
-	-	1	RANGE SHIFT COMPONENTS	-
-	-	1	RANGE SHIFT COMPONENTS (POWRQUAD PLUS OR AUTOQUAD PLUS)	-
-	-	1	RANGE SHIFT COMPONENTS (POWRQUAD PLUS OR AUTOQUAD PLUS)	-
-	-	1	RANGE SHIFT COMPONENTS, 16-SPEED (POWRQUAD PLUS)	-
-	-	1	RANGE SHIFT COMPONENTS, 24-SPEED (POWRQUAD PLUS OR AUTOQUAD PLUS)	-
-	-	1	MULTI-FUNCTION LEVER ON SHIFT CONSOLE WITH 3 INDEPENDENT CONTROL VALVES (M-ICV)	-
-	-	1	ROCKSHAFT CONTROL (SHIFT CONSOLE)	-
-	-	1	ROCKSHAFT CONTROL (SHIFT CONSOLE)	-
-	-	1	SELECTIVE CONTROL VALVE POSITION 1, 2 + 3, CONTROL LINKAGE (SHIFT CONSOLE)	-
-	-	1	SELECTIVE CONTROL VALVE POSITION 4, CONTROL LINKAGE (SHIFT CONSOLE)	-
-	-	1	SELECTIVE CONTROL VALVE, CONTROL LINKAGE (COMMAND ARM)	-
-	-	1	Speed Control, Electronic, CommandARM™	-
-	-	1	SUPPORT, CONTROL CONSOLE ON RIGHT (PREMIUM CAB)	-
-	-	1	SUPPORT, CONTROL CONSOLE ON RIGHT (PREMIUM PLUS CAB)	-
-	-	1	Support, Shift Lever	-
-	-	1	SWITCH, FRONT AND REAR PTO	-
-	-	1	SWITCHES (COMMAND ARM)	-
-	-	1	ELECTRONIC SPEED CONTROL ON SHIFT CONSOLE (JD IVT)	-
-	-	1	ATTACHING PARTS MULTI-FUNCTION LEVER, ARMREST INTEGRATED	-
-	-	1	Attachment, Control Linkage Creeper, PowrQuad™	-
-	-	1	BOWDEN CABLE RETAINER ASSEMBLY	-
-	-	1	BOWDEN CABLES FOR 4-RANGE SHIFT AND PARK LOCK (POWRQUAD PLUS)	-
-	-	1	BOWDEN CABLES FOR 6-RANGE SHIFT AND PARK LOCK (POWRQUAD PLUS, AUTOQUAD PLUS)	-
-	-	1	CONSOLE FOR SHIFT LEVERS (JD IVT)	-
-	-	1	CONTROL CONSOLE (COMMAND ARM)	-
-	-	1	Control Linkage Creeper, PowrQuad™, Attachment	-
-	-	1	CREEPER, CONTROL LINKAGE (SHIFT CONSOLE)	-
-	-	1	ELECTR. OPERATED SELECTIVE CONTROL VALVE POS. 1, 2, 3 + 4, CONTROL LINKAGE (SHIFT CONSOLE)	-
-	-	1	Electric Reverser Control	-
-	-	1	ADDITIONAL SWITCH (POWRQUAD PLUS / AUTOQUAD PLUS)	-
-	-	1	ELECTRONIC SPEED CONTROL ON SHIFT CONSOLE (POWRQUAD PLUS OR AUTOQUAD PLUS)	-
-	-	1	JD IVT Shifting (Command Arm)	-
-	-	1	JD IVT SHIFTING (SHIFT CONSOLE)	-
-	-	1	LEVEL ADJUSTMENT FOR COMMAND ARM	-
-	-	1	LEVEL ADJUSTMENT FOR COMMAND ARM	-
-	-	1	Multi Function Lever, Mechanical ICV, W/ 2-Functions	-
-	-	1	Multi Function Lever, Mechanical ICV, W/ 2-Functions, W/ Gear Shift Switches	-
-	-	1	Multi Function Lever, Mechanical ICV, W/ 3-Functions, W/ Front-Loader Dampening, W/ Gear Shift Switches	-
-	-	1	MULTI-FUNCTION LEVER ON COMMAND ARM	-
-	-	1	MULTI-FUNCTION LEVER ON SHIFT CONSOLE WITH 2 INDEPENDENT CONTROL VALVES (M-ICV)	-

92 Operators Station, Shift Controls

Нет текстового описания
