Diff. Drive Shaft/Ring Gear, 6-Range Transm.

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL164687	1	Bevel Gear Drive	Z= 10/53 MARKED L159186,L155689
1	AL164685	1	Bevel Gear Drive	Z= 10/47 MARKED L159184,L155687
2	AL113714	1	Cylindrical Roller Bearing	(FOR AL166476 OR AL164687)
2	AL152075	1	Cylindrical Roller Bearing	(FOR AL164685 OR AL164688)
3	AL77434	2	Cylindrical Roller Bearing	(FOR AL166476 OR AL164687)
3	AL166438	2	Cylindrical Roller Bearing	(FOR AL164685 OR AL164688)
4	L215100	1	Bearing Housing W/O Bearing	SUB FOR L156851, L151656 , AL164687, AL166476
4	L215099	1	Bearing Housing W/O Bearing	SUB FOR L113426, AL164685 , AL164688
5	L77775	5	Compression Spring	(FOR AL166476 OR AL164687)
5	L113724	5	Spring	(FOR AL164685 OR AL164688)
6	L78070	1	Ring	TK= 2.80MM (0.110")
6	L78073	1	Ring	TK= 2.50MM (0.098")
6	L78072	1	Ring	TK= 2.60MM (0.102")
6	L78071	1	Ring	TK= 2.70MM (0.106")
6	L78069	1	Ring	TK= 2.90MM (0.114")
6	L173991	1	Snap Ring	TK= 3.00MM (0.118"), (SUB FOR 40M7268)
7	L157084	1	Shim	TK= 0.20MM (0.008"), (SUB FOR L115160)
7	L157085	1	Shim	TK= 0.30MM (0.012"), (SUB FOR L115161)
7	L157086	1	Shim	TK= 0.50MM (0.020"), (SUB FOR L115162)
8	L76923	3	Snap Ring	-
9	L168800	1	Pinion	Z= 50/16
10	L75917	1	Thrust Washer	TK= 3.80MM (0.149")
10	L113339	1	Thrust Washer	TK= 4.15MM (0.163")
10	L153635	1	Thrust Washer	TK= 4.05MM (0.159")
10	L76821	1	Thrust Washer	TK= 3.65MM (0.144")
10	L76822	1	Thrust Washer	TK= 3.95MM (0.155")
11	L213033	1	Helical Gear	Z= 63 MARKED L213033; SUB FOR L155892
12	AL157733	2	Synchronizer	-
13	L76923	1	Snap Ring	TK= 2.00MM (0.079")
13	L75906	1	Snap Ring	TK= 2.10MM (0.083")
13	L75905	1	Snap Ring	TK= 2.20MM (0.087")
13	L75904	1	Ring	TK= 2.30MM (0.090")
14	L213035	1	Helical Gear	Z= 60 MARKED L213035; SUB FOR L155893
15	L213037	1	Helical Gear	Z= 48 MARKED L213037; SUB FOR L168392
16	L155895	1	Gear	Z= 39 MARKED L155895
17	L166255	1	Washer	(NO LONGER REQUIRED)
18	19M7156	4	Cap Screw	M10 X 60
19	L172927	1	Cylindrical Roller Bearing	(SUB FOR L113451)
20	24M7332	1	Washer	8.400 X 23 X 4 mm
21	19M7162	1	Cap Screw	M8 X 16
22	L116130	4	Synchronizer	-
23	L155496	1	Gear	-
24	L170237	2	Ring	-
25	L167749	1	Washer	-

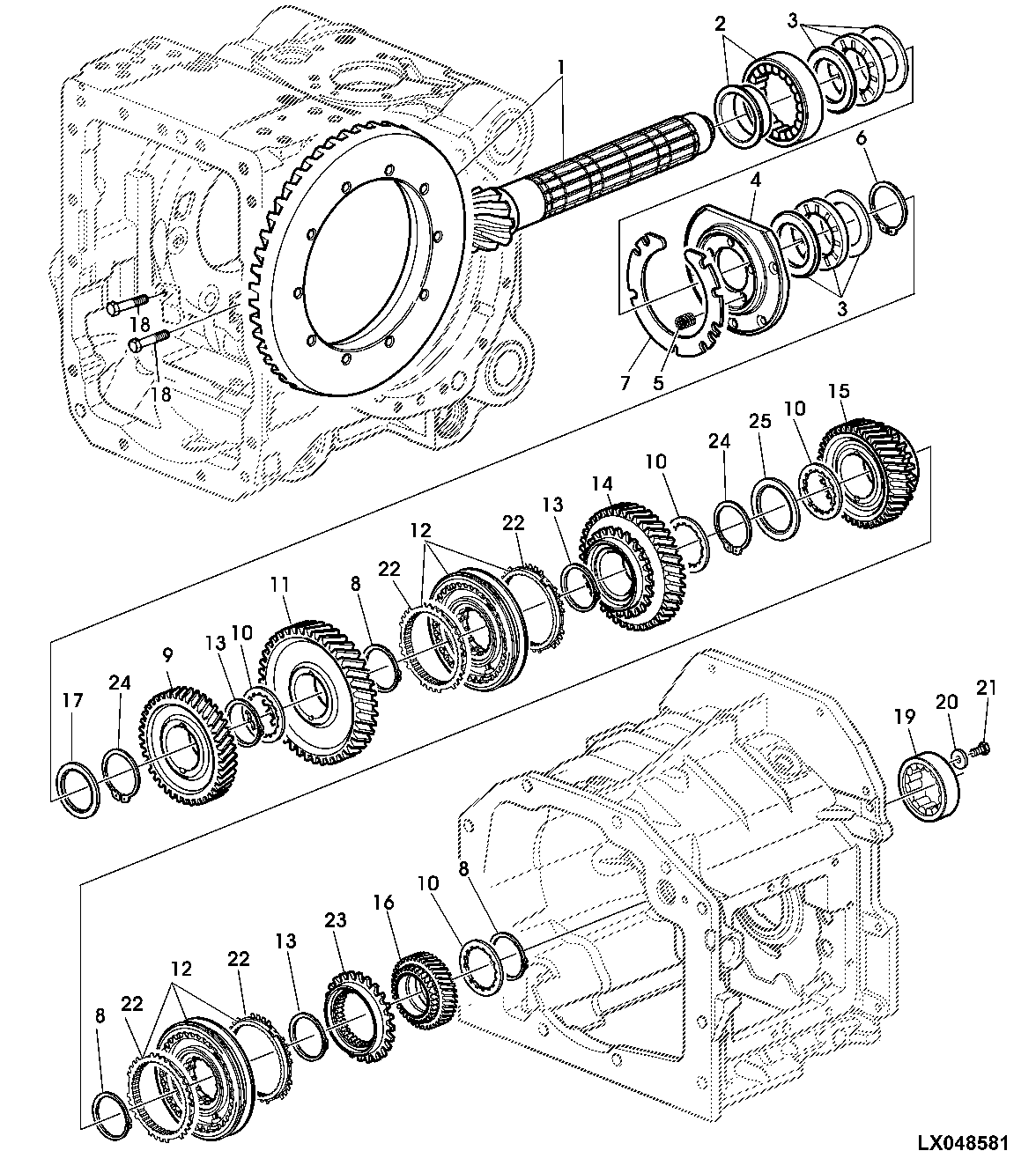

Diff. Drive Shaft/Ring Gear, 6-Range Transm.
