Air Conditioning, Evaporator and Heat Exchanger

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7657	1	Screw	M8 X 25, (10.9)
2	R33259	1	O-Ring	-
3	L220817	2	Pipe	USE WITH AL225309
3	L113870	2	Pipe	-
4	L158828	2	Clamp	-
5	AL174403	1	Refrigerant Hose	-
5	AL174402	1	Refrigerant Hose	W/ Air Trailer Brake System
6	AL230509	1	Temperature Sensor	B129, Evaporator Core Temperature Sensor SUB FOR RE565200 and RE65814
7	R113050	1	O-Ring	-
8	L157116	1	Retainer	-
8	L220818	1	Retainer	USE WITH AL225309
9	AL219020	1	Pressure Relief Valve	SUB FOR AL160578
9	AL225312	1	Pressure Relief Valve	USE WITH AL225309
10	L175507	2	Screw	M5 X 35, (SUB FOR 19M8669 APPL)
11	37M7042	7	Screw	-
12	L157246	1	Holder	-
13	AL163862	1	Heat Exchanger	ORDER AL225309
13	AL219022	1	Heat Exchanger	ORDER AL225309, INCLUDES L157246, L113870, 37M7042, 57M7116
13	AL225309	1	Heat Exchanger	MARKED AL225309; INCLUDES (2) L220817, L220818, AL225312
14	AL219021	1	Heat Exchanger	SUB FOR AL163863
15	L167444	2	Hose	(SUB FOR L77706 APPL)
16	L76254	1	Pad	-
17	P50883	1	Ring	(SUB FOR T143169)
18	L157801	1	Plate	-
18	L222940	1	Plate	USE WITH AL225309
19	19M7768	1	Screw	M6 X 16
20	R10093	2	O-Ring	-
21	AL179932	1	Refrigerant Hose	(SUB FOR AL164225)
22	L76256	1	Grommet	-
23	L114447	1	Grommet	-
24	24M7096	2	Washer	10.500 X 18 X 1.600 mm
25	AL169295	1	Clamp	-
26	AL173761	1	Retainer	-
27	19M7557	2	Cap Screw	M10 X 16
28	24M7055	2	Washer	8.400 X 16 X 1.600 mm
29	19M7931	1	Screw	M8 X 16
30	57M7116	1	Elec. Connector Terminal	-
31	RE190340	1	Transducer	MARKED RE190340; ALSO ORDER R10093
32	L114670	1	O-Ring	ID = 12 mm
..	AL174230	1	Air Conditioner	FI

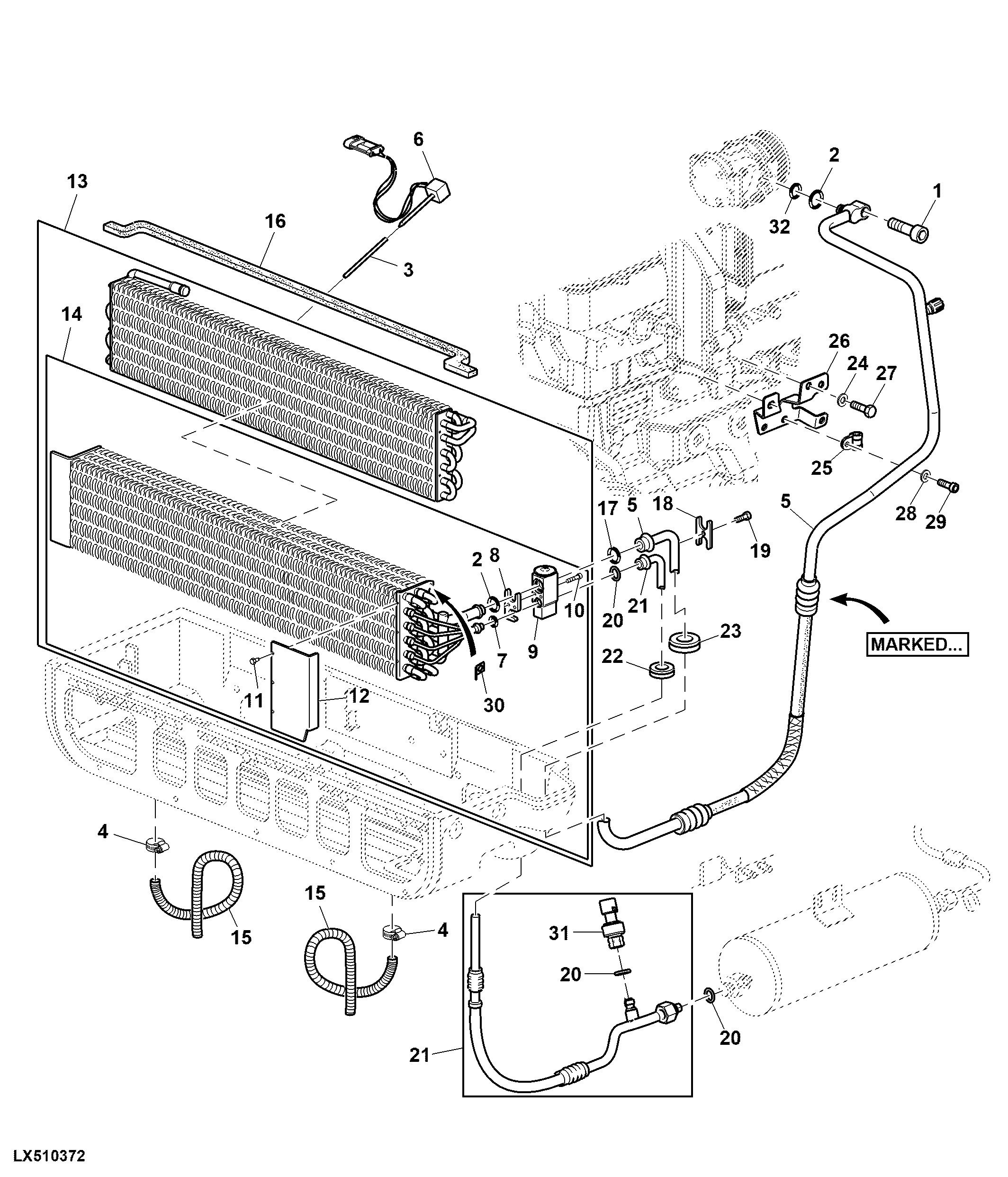

Air Conditioning, Evaporator and Heat Exchanger

Нет текстового описания
