Radiator / Fan Shroud / Coolant Hoses

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

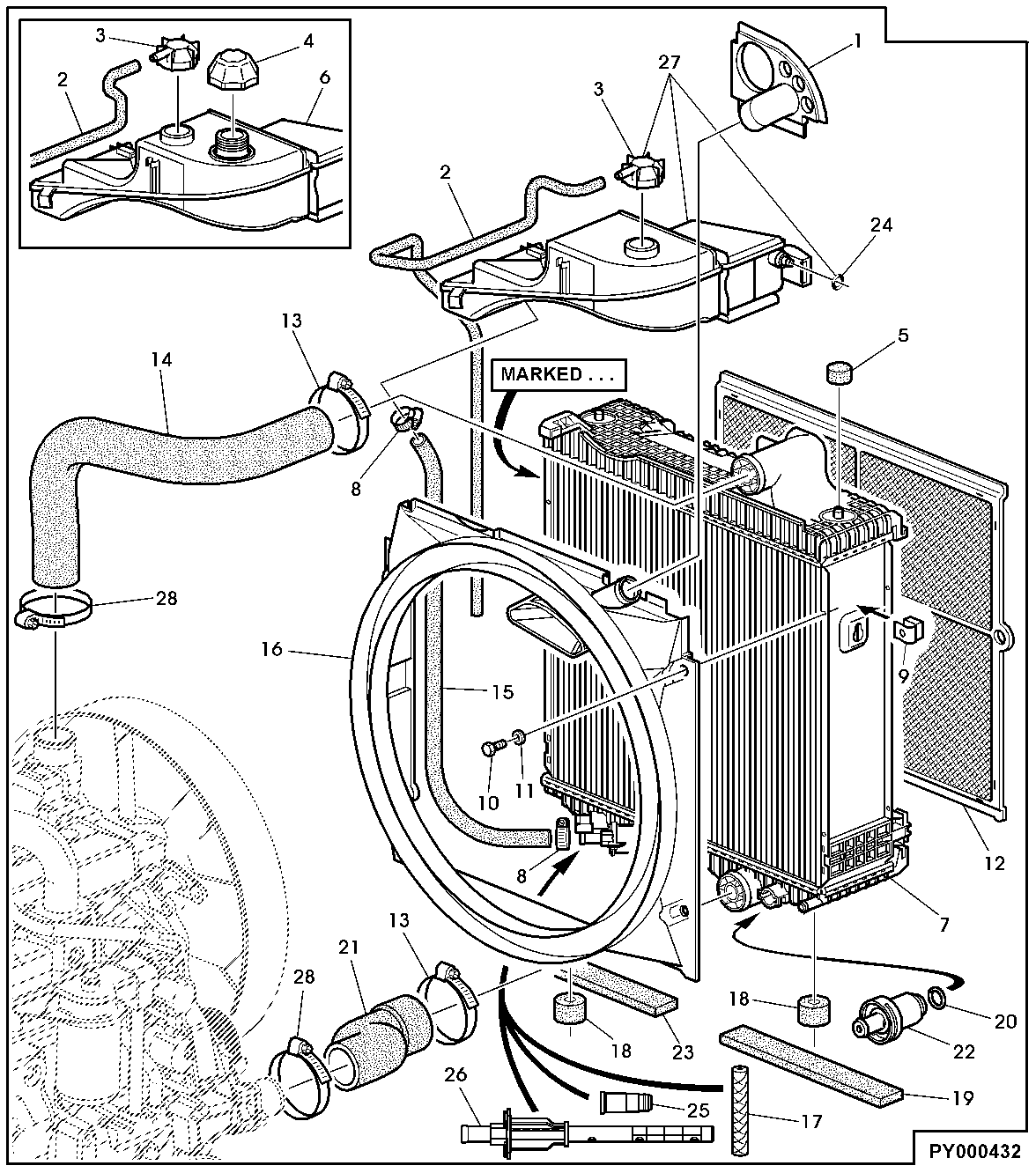

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL156131	1	Gasket	-
2	L156969	1	Hose	(SUB FOR L154920)
3	AL78005	1	Filler Cap	-
4	AL76661	1	Filler Cap	-
5	L167674	2	Cap	(SUB FOR L78871 APPL)
6	AL153875	1	Radiator Reservoir	(ORD AL169910)
7	AL163357	1	Radiator	ORDER AL176361
7	AL176361	1	Radiator	-
8	AL64588	2	Clamp	USE WITH AL176361
8	TY22465	2	Hose Clamp	USE WITH AL163357
9	L168085	4	Nut	USE WITH AL176361; SUB FOR AL160277
9	L79493	4	Push Nut	USE WITH AL163357
10	37M7430	4	Screw	M6 X 32
11	24M7139	4	Washer	6.400 X 18 X 1.600 mm
12	L154025	1	Screen	USE WITH AL176361
12	L168741	1	Screen	USE WITH AL163357
13	AL169828	2	Clamp	USE WITH AL176361; SUB FOR APPL AL112931
13	TY22470	2	Clamp	USE WITH AL163357
14	L153010	1	Hose	-
15	L167143	1	Hose	USE WITH AL163357; SUB FOR L165851
15	L116445	1	Hose	USE WITH AL176361; SUB FOR L116423
16	AL167433	1	Shroud	(SUB FOR AL156289)
17	-	1	Part 23	-
18	L151665	2	Isolator	-
19	L154939	1	Pad	-
20	L53836	1	O-Ring	USE WITH AL176361
20	L53836	1	O-Ring	USE WITH AL163357
21	L207042	1	Hose	USE WITH L116423; SUB FOR L116423
21	L165802	1	Hose	USE WITH AL163357
22	AL161963	1	Thermostat	SUB FOR AL171960 OR AL157701 OR AL157701
23	L154938	1	Pad	-
24	L154643	1	O-Ring	-
25	AL155781	1	Drain Plug	-
26	AL158435	1	Drain Valve	-
27	AL169910	1	Radiator Reservoir	(SUB FOR AL160274 APPL)
28	AL170672	2	Clamp	(SUB FOR AL112931 APPL)

Radiator / Fan Shroud / Coolant Hoses
