Открытый узел

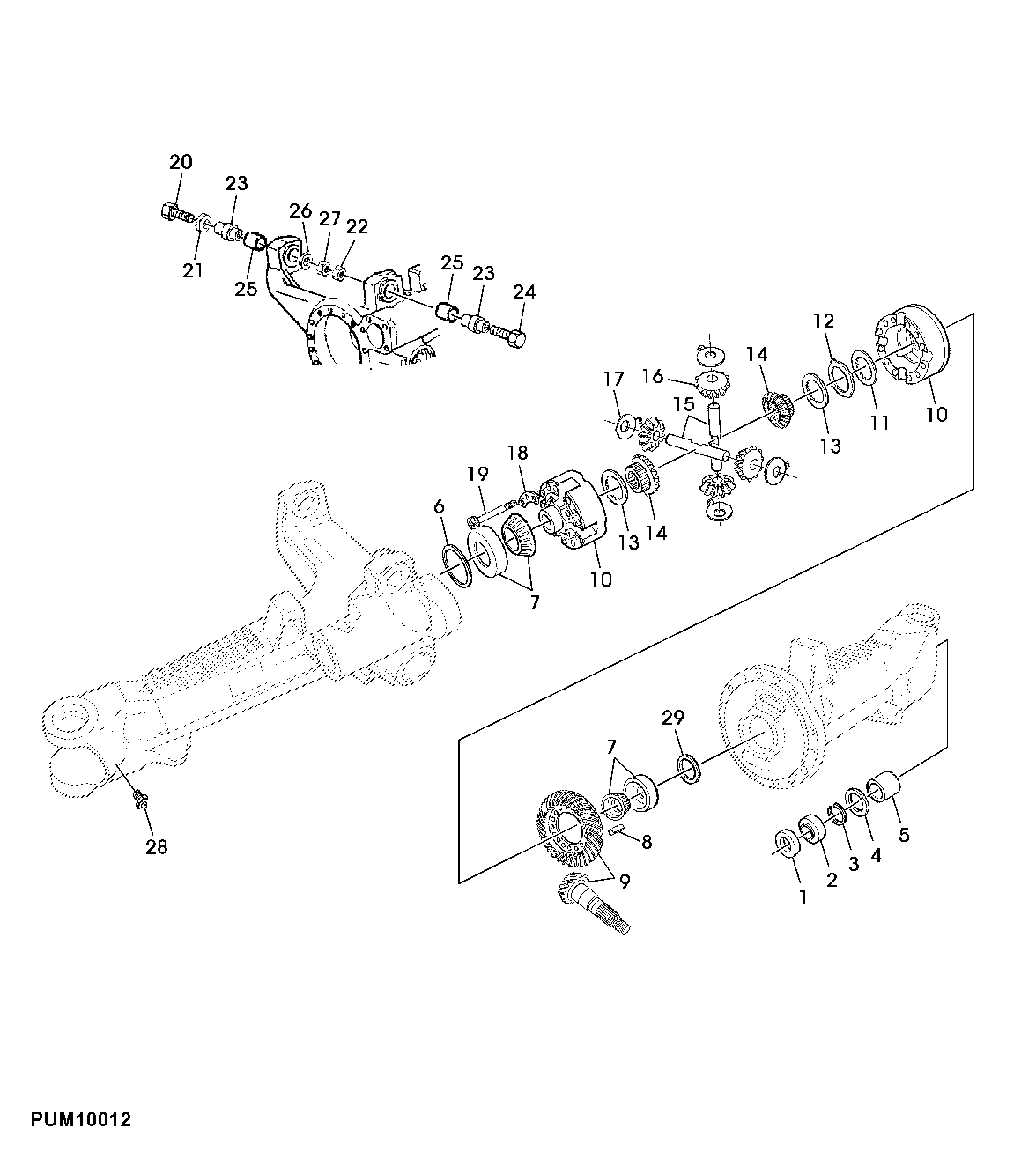

Multiple Disk Self-Lock Differential, FWD-Axle, AS3050 (001064 - 002826)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CQ29344	1	Sheet	-
2	CQ27245	1	Seal	-
3	CQ27246	1	Snap Ring	-
4	CQ27244	1	Seal	-
5	L60088	1	Bushing	-
6	L40993	1	Washer	TK= 1.55MM
6	L55610	1	Washer	TK= 0.85MM
6	L55608	1	Shim	TK= 0.75MM
6	L55607	1	Shim	TK= 0.70MM
6	L55606	1	Shim	TK= 0.65MM
6	L40996	1	Washer	TK= 0.95MM
6	L40995	1	Washer	TK= 0.9MM
6	L40994	1	Washer	TK= 1.6MM
6	L40992	1	Washer	TK= 1.5MM
6	L40990	1	Washer	TK= 1.40MM
6	L40272	1	Spacer	TK= 1.2MM
6	L40982	1	Washer	-
6	L40983	1	Washer	TK= 1.05MM
6	L40984	1	Washer	TK= 1.1MM
6	L40985	1	Washer	TK= 1.15MM
6	L40987	1	Washer	TK= 1.25MM
6	L40988	1	Washer	TK= 1.3MM
6	L40989	1	Washer	TK= 1.35MM
6	L40991	1	Washer	TK= 1.45MM
7	JD37087	2	Tapered Roller Bearing	-
8	34M7135	4	Spring Pin	14 X 40 mm
9	DQ27253	1	Ring Gear And Pinion	-
10	AL38020	1	Differential	-
11	L40003	1	Disk With Inner Spline	-
12	L62420	1	Disk With Outer Spline	TK= 1.4MM
12	L35577	1	Disk With Outer Spline	TK= 1.3MM
12	CQ27730	1	Disk With Outer Spline	TK= 1.2MM
13	L40130	1	Disk With Inner Spline	TK= 3.2MM
14	CQ27234	2	Chain Sprocket	-
15	L39983	2	Axle With Differential	-
16	L101698	4	Bevel Gear	-
17	L40253	4	Washer	-
18	L40254	4	Sector	-
19	19M8119	12	Screw	M12 X 130
20	R114919	1	Bolt	20X160
21	L78006	1	Spacer	-
22	A31870	1	Lock Nut	-
23	L111817	2	Pin Fastener	-
24	19M7907	1	Screw	M20 X 140, M20X140
25	CQ27396	1	Bushing	-
26	L78009	1	Washer	-
27	14M7495	1	Nut	M20
28	CQ29345	2	Thimble	-
29	L41005	1	Shim	TK= 0.1MM
29	L41004	1	Shim	TK= 0.2MM
29	L41003	1	Shim	TK= 0.3MM
29	L101689	1	Shim	TK= 0.45MM
29	L41001	1	Shim	TK= 0.5MM
29	L41000	1	Shim	TK= 0.6MM
29	L112212	1	Washer	TK= 0.7MM
29	L40999	1	Washer	TK= 0.8MM
29	L112214	1	Washer	TK= 0.85MM
29	L112215	1	Washer	TK= 0.9MM
29	L40998	1	Washer	TK= 1.0MM
29	L112217	1	Washer	TK= 1.1MM
29	L112218	1	Washer	TK= 1.15MM

Multiple Disk Self-Lock Differential, FWD-Axle, AS3050 (001064 - 002826)

Нет текстового описания
