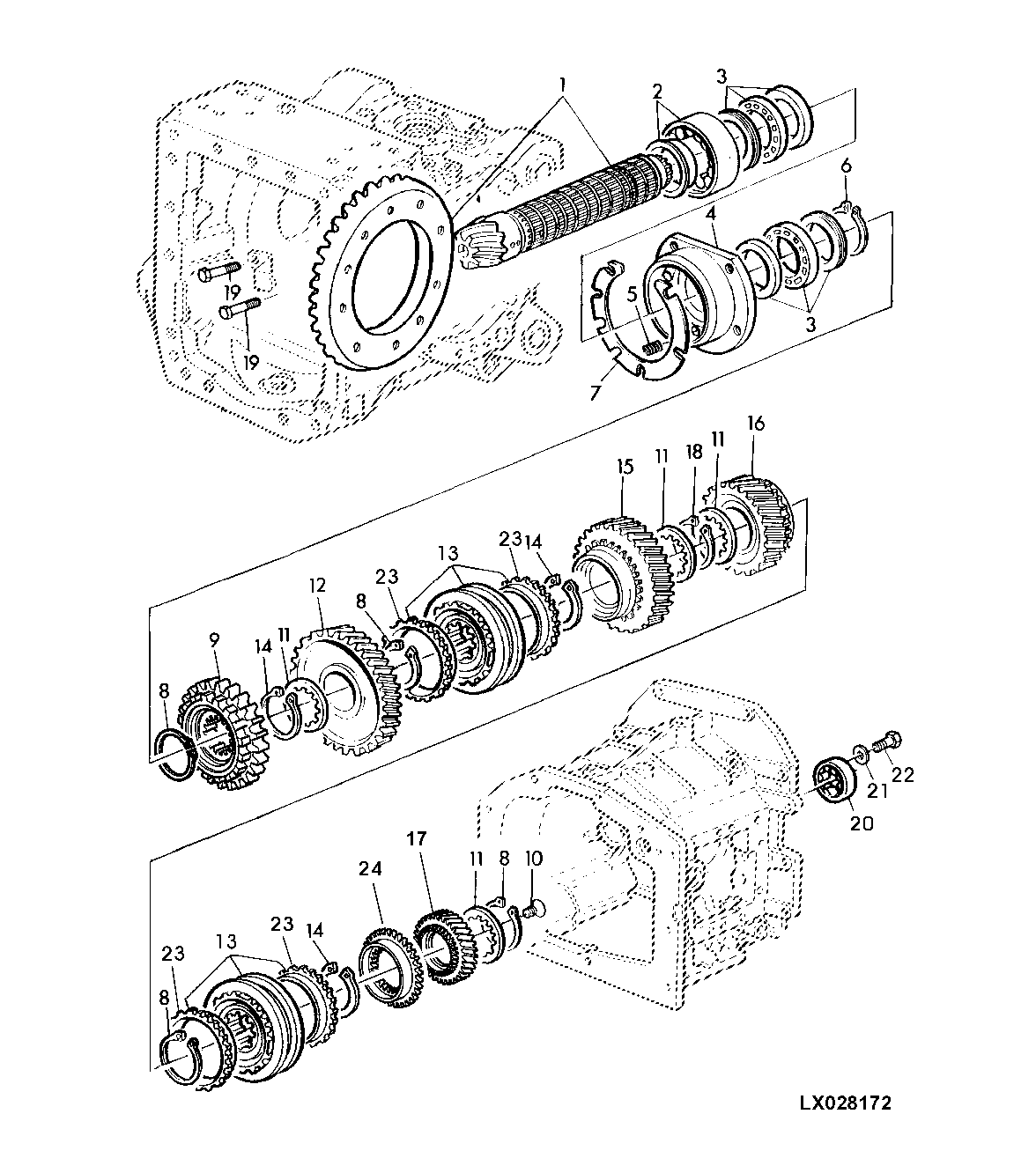

DIFF. DRIVE SHAFT/RING GEAR, 4-RANGE TRANSM. (8/47 GEARING)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL150944	1	Bevel Gear Drive	Z= 8/47
2	AL152075	1	Cylindrical Roller Bearing	-
3	AL114948	2	Cylindrical Roller Bearing	-
4	L113426	1	Bearing Housing W/O Bearing	(MARKED L113426)
5	L113724	5	Spring	-
6	40M7268	1	Snap Ring	TK= 3.00MM (0.118")
6	L78069	1	Ring	TK= 2.90MM (0.114")
6	L78070	1	Ring	TK= 2.80MM (0.110")
6	L78071	1	Ring	TK= 2.70MM (0.106")
6	L78072	1	Ring	TK= 2.60MM (0.102")
6	L78073	1	Ring	TK= 2.50MM (0.098")
7	L115160	1	Shim	TK= 0.20MM (0.008")
7	L115162	1	Shim	TK= 0.50MM (0.020")
7	L115161	1	Shim	TK= 0.30MM (0.012")
8	L76923	4	Snap Ring	-
9	L154534	1	Pinion	Z= 50, (MARKED L154534)
10	L110851	1	Screw	M14
11	L113339	1	Thrust Washer	TK= 4.15MM (0.163")
11	L153635	1	Thrust Washer	TK= 4.05MM (0.159")
11	L76822	1	Thrust Washer	TK= 3.95MM (0.155")
11	L76821	1	Thrust Washer	TK= 3.65MM (0.144")
11	L75917	1	Thrust Washer	TK= 3.80MM (0.149")
12	L155888	1	Gear	Z= 63, (MARKED L155888)
13	AL157733	2	Synchronizer	-
14	L75904	1	Ring	TK= 2.30MM (0.090")
14	L75905	1	Snap Ring	TK= 2.20MM (0.087")
14	L75906	1	Snap Ring	TK= 2.10MM (0.083")
14	L76923	1	Snap Ring	TK= 2.00MM (0.079")
15	L155889	1	Gear	Z= 55, (MARKED L155889)
16	L155891	1	Gear	Z= 43, (MARKED L155891)
17	L155890	1	Gear	Z= 29, (MARKED L155890)
18	40M7268	1	Snap Ring	TK= 3.00MM (0.118")
19	19M7156	4	Cap Screw	M10 X 60
20	L113451	1	Cylindrical Roller Bearing	-
21	24M7332	1	Washer	8.400 X 23 X 4 mm
22	19M7932	1	Cap Screw	M8 X 16
23	L116130	4	Synchronizer	-
24	L155496	1	Gear	-
