Открытый узел

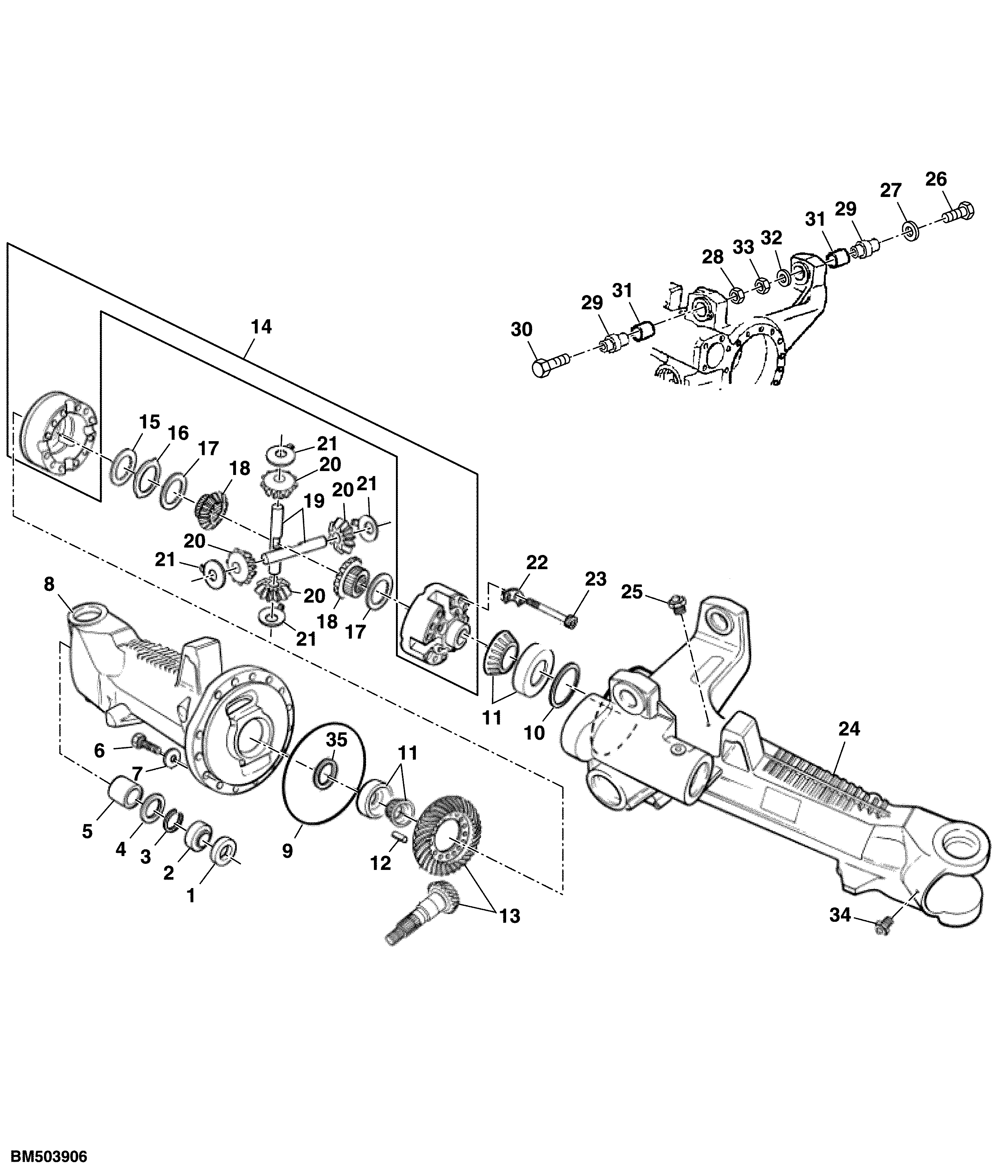

Multiple Disk Self-Lock. Differential, FWD-Axle

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	CQ29344	1	Sheet	-
2	CQ27245	1	Seal	-
3	CQ27246	1	Snap Ring	-
4	CQ27244	1	Seal	-
5	L60088	1	Bushing	-
6	19M7174	15	Cap Screw	M16 X 50
7	L40274	15	Washer	-
8	CQ27237	1	Jumper	ORDER CQ64245
8	CQ64245	1	Jumper	-
9	L40273	1	O-Ring	-
10	L55610	1	Washer	TK = 0.85 mm
10	L55608	1	Shim	TK = 0.75 mm
10	L55607	1	Shim	TK = 0.70 mm
10	L55606	1	Shim	TK = 0.65 mm
10	L40996	1	Washer	TK = 0.95 mm
10	L40995	1	Washer	TK = 0.9 mm
10	L40994	1	Washer	TK = 1.6 mm
10	L40993	1	Washer	TK = 1.55 mm
10	L40992	1	Washer	TK = 1.5 mm
10	L40991	1	Washer	TK = 1.45 mm
10	L40990	1	Washer	TK = 1.40 mm
10	L40989	1	Washer	TK = 1.35 mm
10	L40988	1	Washer	TK = 1.3 mm
10	L40987	1	Washer	TK = 1.25 mm
10	L40985	1	Washer	TK = 1.15 mm
10	L40984	1	Washer	TK = 1.1 mm
10	L40983	1	Washer	TK = 1.05 mm
10	L40982	1	Washer	-
10	L40272	1	Spacer	TK = 1.2 mm
11	JD37087	2	Tapered Roller Bearing	-
12	34M7135	4	Spring Pin	14 X 40 mm
13	DQ27253	1	Ring Gear And Pinion	-
13	DQ27189	1	Ring Gear And Pinion	-
14	AL38020	1	Differential	-
15	L40003	1	Disk With Inner Spline	-
16	L62420	1	Disk With Outer Spline	TK = 1.4 mm
16	CQ27730	1	Disk With Outer Spline	TK = 1.2 mm
16	L35577	1	Disk With Outer Spline	TK = 1.3 mm
17	L40130	1	Disk With Inner Spline	TK= 3.2MM
18	CQ27234	2	Chain Sprocket	-
19	L39983	2	Axle With Differential	-
20	L101698	4	Bevel Gear	-
21	L40253	4	Washer	-
22	R75522	4	Lock Washer	SUB FOR L40254
23	19M8119	12	Screw	M12 X 130
24	DQ70768	1	Axle	-
24	DQ70769	1	Jumper	-
24	CQ27236	1	Jumper	ORDER DQ70769
24	CQ27255	1	Jumper	ORDER DQ70768
25	AL32877	1	Vent	-
26	19M7921	1	Cap Screw	M20 X 150
27	L78006	1	Spacer	-
28	A31870	1	Lock Nut	-
29	L111817	2	Pin Fastener	SUB FOR L114874
30	19M7907	1	Screw	M20 X 140
31	CQ45134	1	Bushing	SUB FOR CQ27396
32	L80423	1	Washer	-
32	L78009	1	Washer	-
33	14M7495	1	Nut	M20
34	CQ29345	2	Thimble	-
35	L112222	1	Washer	-
35	L112218	1	Washer	TK = 1.15 mm, ORDER L112222 AND L41005
35	L112217	1	Washer	TK = 1.1 mm, ORDER L40998 AND L41005
35	L40998	1	Washer	TK = 1.0 mm
35	L112215	1	Washer	TK = 0.9 mm
35	L112214	1	Washer	TK = 0.85 mm
35	L40999	1	Washer	TK = 0.8 mm
35	L112212	1	Washer	TK = 0.7 mm
35	L41000	1	Shim	TK = 0.6 mm
35	L41001	1	Shim	TK = 0.5 mm
35	L101689	1	Shim	TK = 0.45 mm
35	L41003	1	Shim	TK = 0.3 mm
35	L41004	1	Shim	TK = 0.2 mm
35	L41005	1	Shim	TK = 0.1 mm

Multiple Disk Self-Lock. Differential, FWD-Axle

Нет текстового описания
