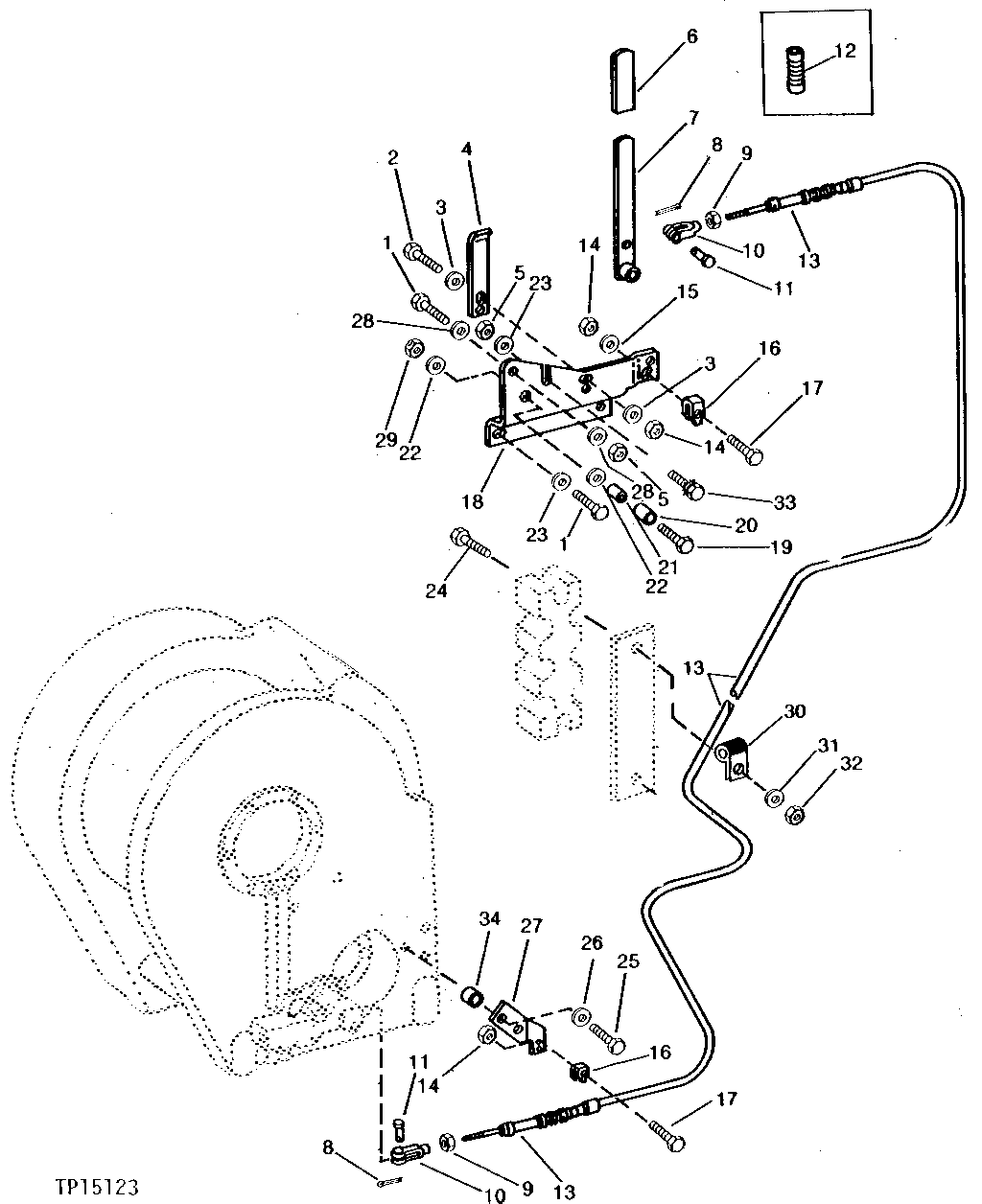

WINCH CONTROL LEVER AND LINKAGE (640D SKIDDER) (648D GRAPPLE SKIDDER WITH 11" DRUM WINCH) [03E04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1648	3	Cap Screw	3/8" X 3/4"
2	19H2664	2	Cap Screw	5/16" X 3/4"
3	24H1136	4	Washer	11/32" X 11/16" X 0.065"
4	T77534	1	ANGLE	-
5	14H1076	2	Nut	3/8"
6	T41655	1	GRIP	-
7	AT42588	1	LEVER	-
8	11M7079	2	Cotter Pin	2.500 X 12 MM
9	14H649	2	Nut	1/4"
10	T184870	2	YOKE	(SUB FOR T38708)
11	P46404	2	Pin Fastener	-
12	T48413	2	BOOT	(USE WITH AT43015)
13	AT151408	1	PUSH PULL CABLE	(ALSO ORDER T77533) (SEE DTAC SOLUTION 32276)
14	14H785	4	Nut	5/16"
15	24H1243	1	WASHER	11/32" X 5/8" X 1/16"
16	R72661	2	Clamp	(SUB FOR R26870)
17	19H1849	2	Cap Screw	5/16" X 1-1/4"
18	T77533	1	BRACKET	-
19	19H2735	1	Cap Screw	1/2" X 2"
20	T13742	1	BUSHING	-
21	T44730	1	BUSHING	-
22	24H1111	2	Washer	17/32" X 1-1/16" X 0.090"
23	24H1219	3	Washer	7/16" X 1" X 0.083"
24	19H3239	1	Cap Screw	3/8" X 1-1/4"
25	19H2676	2	Cap Screw	3/8" X 1"
25	19H3385	2	Cap Screw	-
26	12H304	2	Lock Washer	3/8"
27	T63056	1	BRACKET	-
27	T81955	1	BRACKET	-
28	24H1302	2	Washer	13/32" X 11/16" X 0.035"
29	14H1040	1	Nut	1/2"
30	AH76882	1	Clip	-
31	24H1682	1	Washer	13/32" X 7/8" X 0.120"
32	14H1076	1	Nut	3/8"
33	N14822	1	Screw	-
34	28H860	2	Washer	0.423" X 0.675" X 3/8"

WINCH CONTROL LEVER AND LINKAGE (640D SKIDDER) (648D GRAPPLE SKIDDER WITH 11" DRUM WINCH) [03E04]
