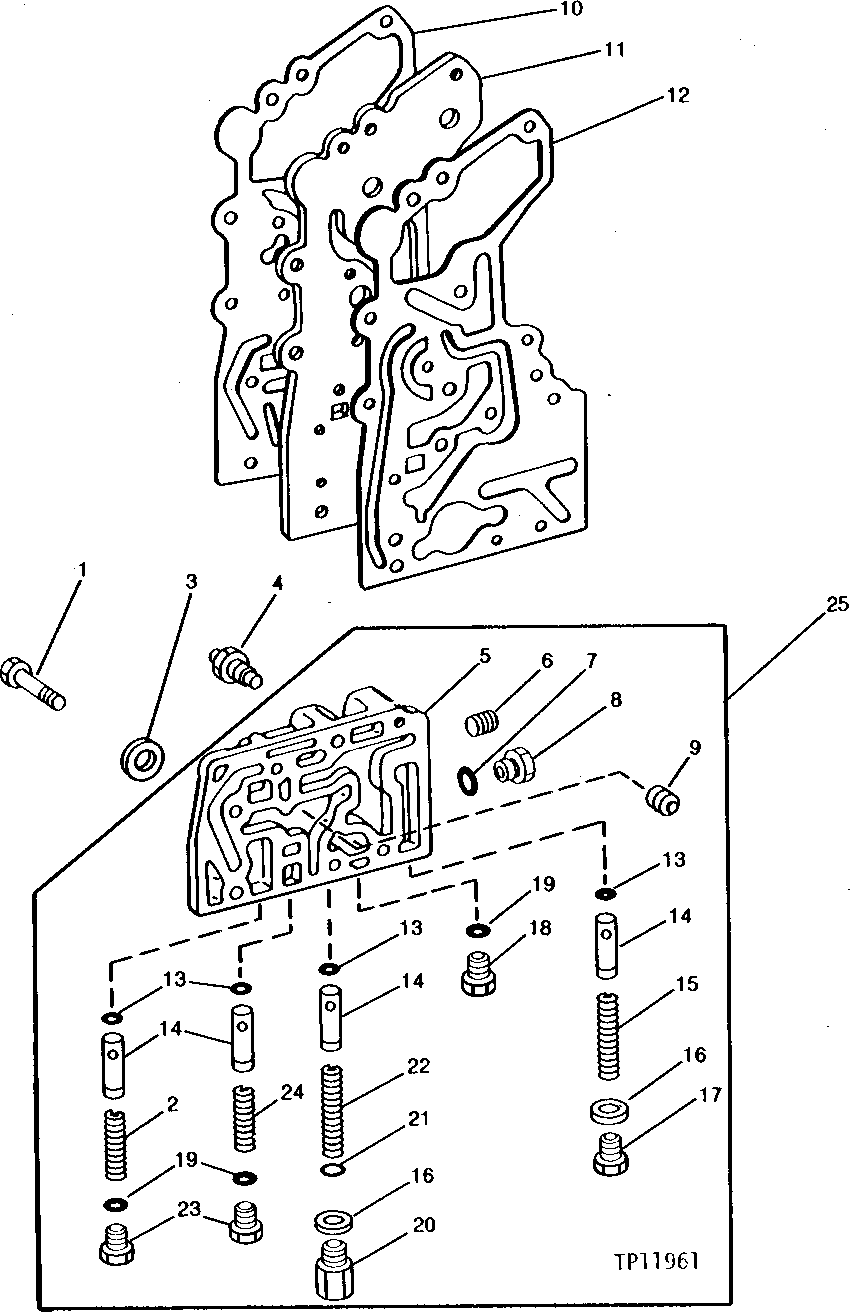

TRANSMISSION OIL PRESSURE REGULATING VALVE [01G03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2055	4	CAP SCREW	7/16" X 2-1/4"
1	19H3465	1	Cap Screw	7/16" X 3"
1	19H3197	1	CAP SCREW	7/16" X 4"
1	19H3205	1	Cap Screw	7/16" X 1-1/2"
2	R56784	1	SPRING	FILTER RELIEF VALVE
3	24H1325	7	Washer	15/32" X 59/64" X 0.065"
4	AT37368	1	SENDER	TEMPERATURE
5	-	1	Part 8	(MARKED R70203) (SUB RE65889)
6	15H571	1	PIPE PLUG	3/8"
7	U12547	1	O-Ring	(SUB FOR F3171R)
8	R27175	1	Drain Plug	-
9	15H559	1	Pipe Plug	1/4"
10	T67031	1	GASKET	OUTER
11	T45134	1	PLATE	-
12	T67030	1	GASKET	INNER
13	R28776	4	O-Ring	-
14	R63980	4	Valve	-
15	R56782	1	Compression Spring	OIL COOLER RELIEF VALVE
16	R1742R	2	WASHER	-
17	R52589	1	FITTING PLUG	-
18	R39112	1	Fitting	-
19	R26375	3	O-Ring	-
20	R51577	1	FITTING PLUG	-
21	R33521	1	Shim	0.76 MM (.030")
22	T60314	1	Compression Spring	PESSURE REGULATING VALVE (COLORED GREEN OR BLUE)
23	R33138	2	Fitting	-
24	R39133	1	SPRING	LUBE RELIEF VALVE (COLORED YELLOW)
25	RE65889	1	HOUSING	(ALSO ORDER R130730 CONNECTOR AND R130731 CONNECTOR) (SUB FOR AT58341)
25	R130730	1	FITTING	(NOT ILLUSTRATED)
25	R130731	1	ELECTRICAL CONNECTOR ASSY	(NOT ILLUSTRATED)

TRANSMISSION OIL PRESSURE REGULATING VALVE [01G03]
