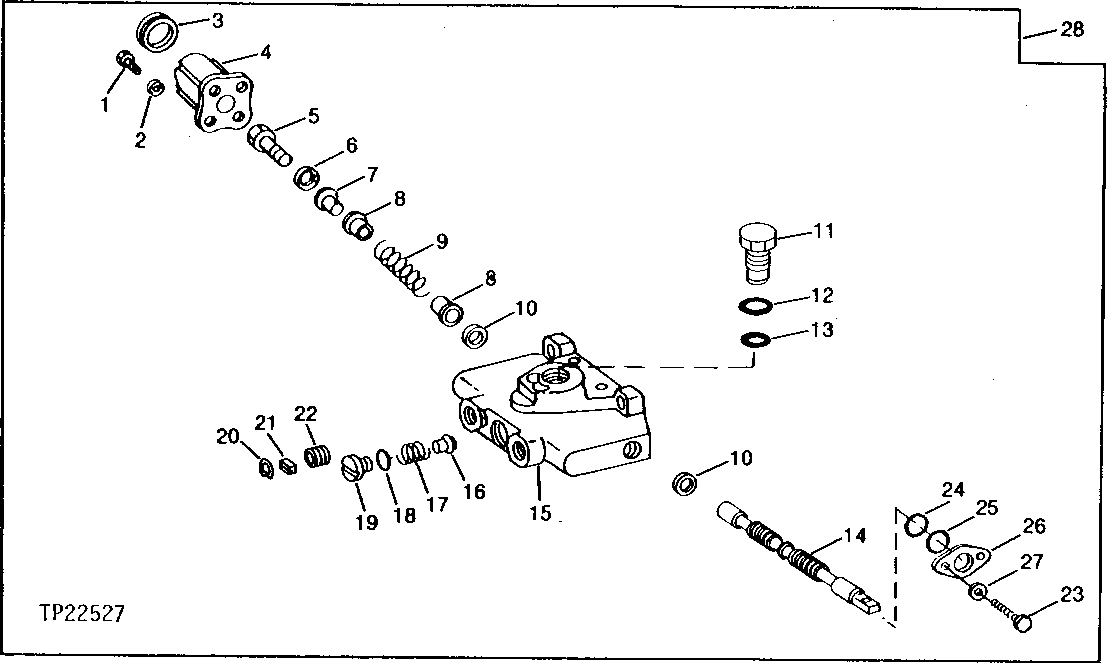

ROTATE VALVE SECTION COVER (SINGLE FUNCTION BOOM) (648D GRAPPLE SKIDDER) [03I01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1174	4	SCREW	MACH. 1/4" X 1"
2	12H302	4	Lock Washer	1/4"
3	T75985	1	COVER	(SUB FOR U17387)
4	T75985	1	COVER	-
4	-	1	Part 5	( T118894 NO LONGER AVAILABLE)
5	19H3295	1	Screw	HS, SAE 8, 3/8" X 3/4", (SUB FOR U40662)
6	U11298	1	LOCK WASHER	-
7	U17391	1	ROUND RETAINER	-
8	T75987	1	PLUG	-
9	T34974	1	SPRING	CENTERING
10	T122063	2	O-RING	(SUB FOR (2) T27593) QUAD
10	T122064	2	O-RING	(SUB FOR T106371, THIS APPLICATION)
11	T38928	1	FITTING	CLOSED CENTER
12	R29936	1	O-Ring	-
13	U15242	1	O-RING	-
14	-	1	Part 16	(SUB AT84784)
15	-	1	Part 17	VALVE, (SUB AT84784)
16	U17396	1	POPPET	CHECK
17	U17406	1	SPRING	CHECK
18	U17409	1	O-Ring	-
19	U17393	1	FITTING	-
20	T80149	2	RING	-
21	T79300	2	PLATE	ORIFICE
22	T62162	2	PLUG	-
23	19H2701	2	SCREW	1/4" X 5/8"
24	T118736	2	SEAL	-
25	T118737	2	THRUST WASHER	-
26	T106147	1	PLATE	-
27	12H302	2	Lock Washer	1/4"
28	AT59597	1	VALVE	FOUR-WAY COVER WITH ORIFICE
28	AT84784	1	SPOOL VALVE	-

ROTATE VALVE SECTION COVER (SINGLE FUNCTION BOOM) (648D GRAPPLE SKIDDER) [03I01]
