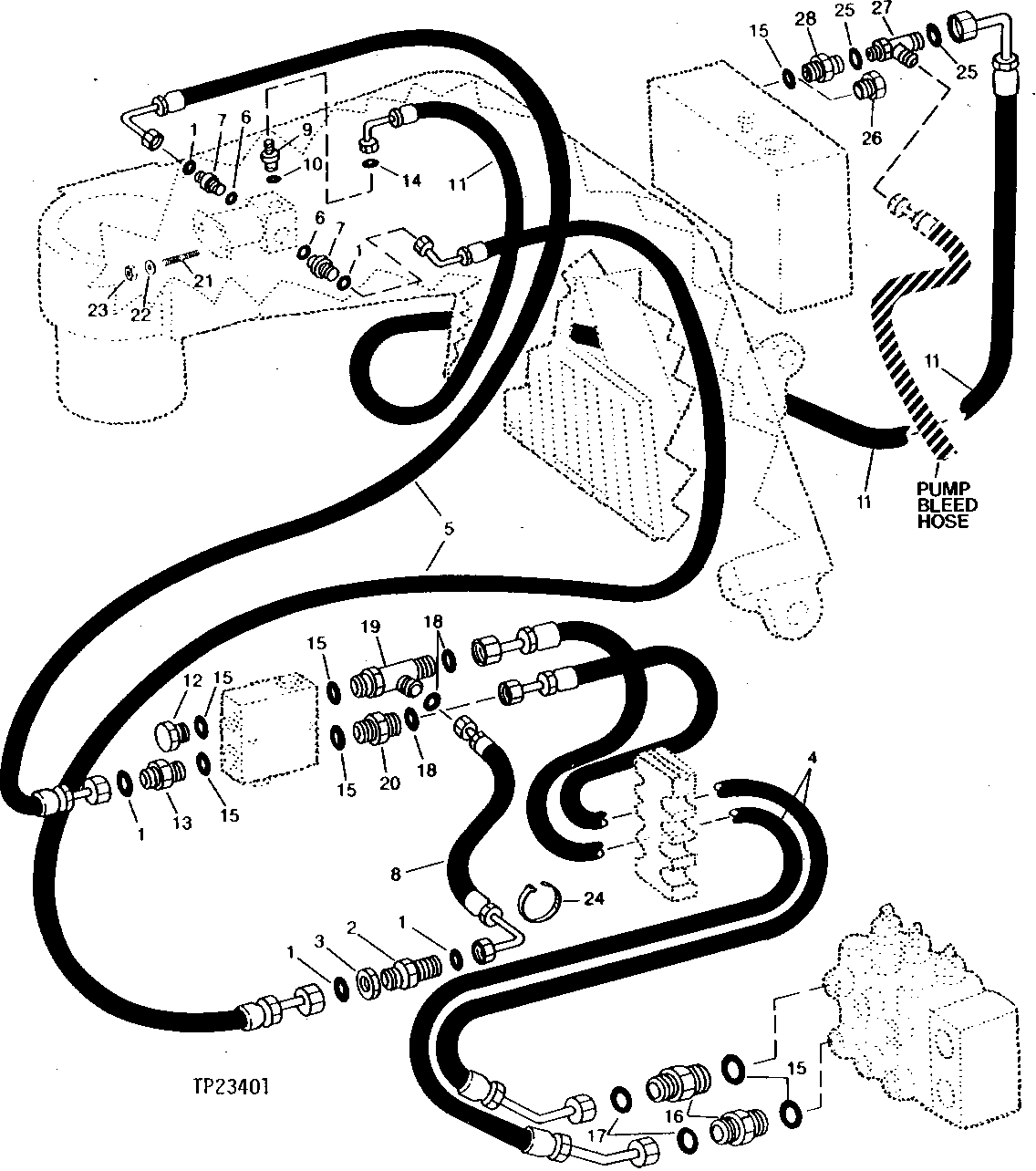

ROTATE VALVE HYDRAULICS (SINGLE FUNCTION BOOM) (648D GRAPPLE SKIDDER) [03J09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77857	5	O-Ring	-
2	38H1275	1	Adapter Fitting	-
3	T78716	1	Nut	-
4	AT78198	2	HYDRAULIC HOSE	11/16" X 1 750 MM (69") X 1"
5	AT78212	2	HYDRAULIC HOSE - FABRICATE	13/16" X 2 845 MM (112") X 13/16"
6	U12547	2	O-Ring	-
7	38H1175	2	Adapter Fitting	(USED WITH AT78845 MOTOR)
8	AT78199	1	HYDRAULIC HOSE - FABRICATE	13/16" X 775 MM (30-1/2") X 1"
9	38H1159	1	Adapter Fitting	(USED WITH AT78845 MOTOR)
9	38H1159	1	Adapter Fitting	-
10	R28782	1	O-Ring	(USED WITH AT78845 MOTOR)
10	R28782	1	O-Ring	-
11	AT78213	1	HYDRAULIC HOSE - FABRICATE	9/16" X 3 310 MM (130-1/4") X 11/16"
11	AT78213	1	HYDRAULIC HOSE - FABRICATE	-
12	R27474	1	Drain Plug	-
13	38H1174	1	Adapter Fitting	-
14	T77814	1	O-Ring	-
14	T77814	1	O-Ring	(USED WITH AT78845 MOTOR)
15	R26906	7	O-Ring	-
16	38H1172	2	Adapter Fitting	-
17	T77613	2	O-Ring	-
18	T77932	3	O-Ring	-
19	38H1025	1	Tee Fitting	-
20	38H1162	1	Adapter Fitting	-
21	K2019R	2	STUD	(SUB FOR T41020)
22	T20168	2	Washer	-
23	14H1040	2	Nut	1/2"
24	H77698	3	Tie Band	(SUB FOR T44946)
25	T77613	1	O-Ring	(USED WITH AT78845 MOTOR)
25	T77613	2	O-Ring	-
26	R27474	1	Drain Plug	-
27	38H1030	1	Tee Fitting	-
28	38H1172	1	Adapter Fitting	-
28	38H1011	1	Elbow Fitting	-
28	38H1172	1	Adapter Fitting	-

ROTATE VALVE HYDRAULICS (SINGLE FUNCTION BOOM) (648D GRAPPLE SKIDDER) [03J09]
