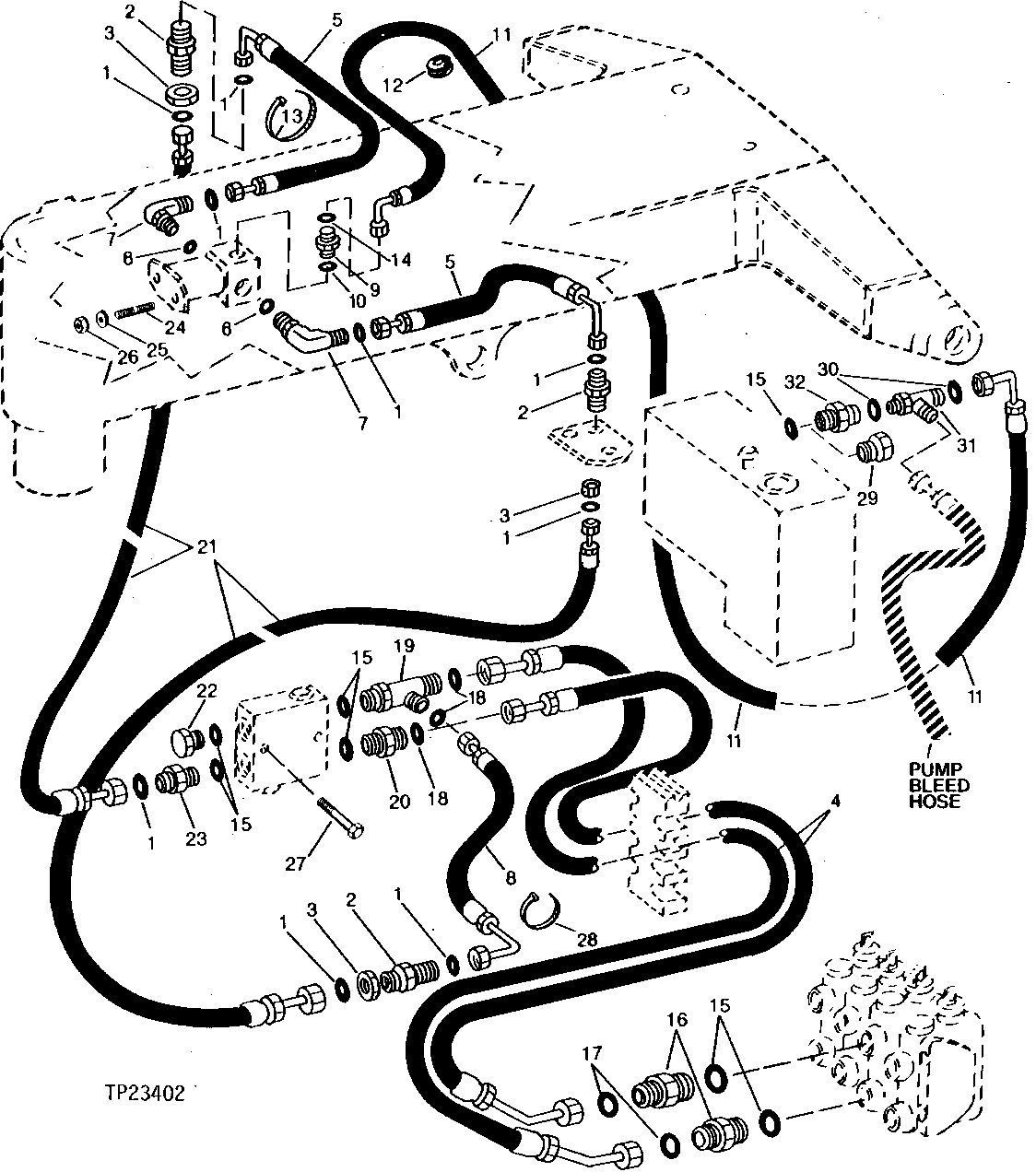

ROTATE VALVE HYDRAULICS (DUAL FUNCTION BOOM) (648D GRAPPLE SKIDDER) [03J03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77857	9	O-Ring	-
2	38H1275	3	Adapter Fitting	-
3	T78716	3	Nut	-
4	AT107689	2	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT78198)
5	AT78919	2	HYDRAULIC HOSE - FABRICATE	13/16" X 1 588 MM (62-1/2") X 13/16"
6	U12547	2	O-Ring	-
7	38H1013	2	Elbow Fitting	90°
8	AT78199	1	HYDRAULIC HOSE - FABRICATE	13/16" X 775 MM (30-1/2") X 1"
9	38H1159	1	Adapter Fitting	-
9	38H1159	1	Adapter Fitting	-
10	R28782	1	O-Ring	-
10	R28782	1	O-Ring	-
11	AT78202	1	HYDRAULIC HOSE - FABRICATE	9/16" X 4 242 MM (167") X 11/16", (USED WITH AT78845 MOTOR)
11	AT78202	1	HYDRAULIC HOSE - FABRICATE	-
12	R36235	1	Grommet	RUBBER (USED WITH AT78845 MOTOR)
12	R36235	1	Grommet	-
13	R44302	2	Tie Band	NYLON (USED WITH AT78845 MOTOR)
13	R44302	2	Tie Band	-
14	T77814	1	O-Ring	(USED WITH AT78845 MOTOR)
14	T77814	1	O-Ring	-
15	R26906	7	O-Ring	-
16	38H1172	2	Adapter Fitting	(USED WITH AT78845 MOTOR)
17	T77613	2	O-Ring	-
18	T77932	3	O-Ring	-
19	38H1025	1	Tee Fitting	-
20	38H1162	1	Adapter Fitting	-
21	AT78918	2	HYDRAULIC HOSE - FABRICATE	13/16" X 2 426 MM (95-1/2") X 13/16"
22	R27474	1	Drain Plug	-
23	38H1174	1	Adapter Fitting	-
24	K2019R	2	STUD	(SUB FOR T41020)
25	T20168	2	Washer	-
26	14H1040	2	Nut	1/2"
27	19H2440	2	CAP SCREW	5/16" X 2-1/2"
28	H77698	3	Tie Band	(SUB FOR T44946)
29	R27474	1	Drain Plug	-
30	T77613	1	O-Ring	(USED WITH AT78845 MOTOR)
30	T77613	2	O-Ring	-
31	38H1030	1	Tee Fitting	-
32	38H1172	1	Adapter Fitting	-
32	38H1011	1	Elbow Fitting	-
32	38H1172	1	Adapter Fitting	-
