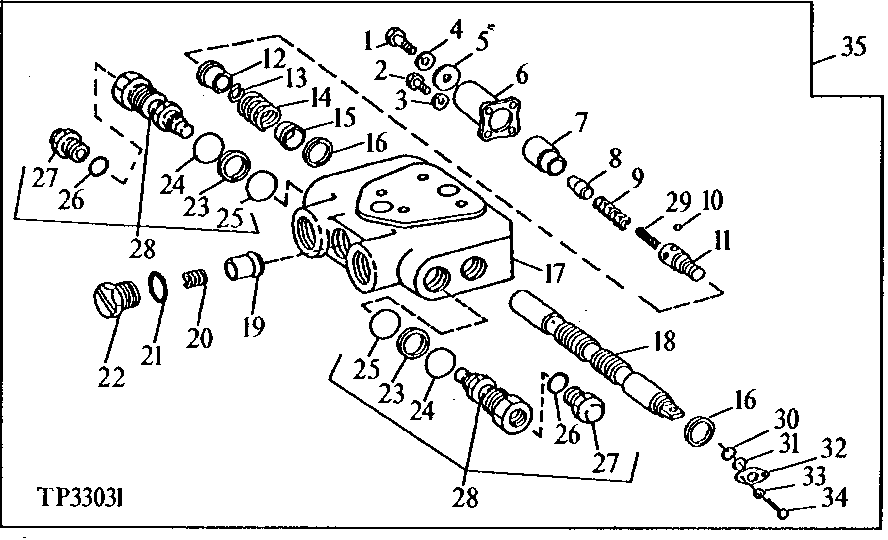

GRAPPLE VALVE SECTION (SINGLE FUNCTION BOOM) (648D GRAPPLE SKIDDER) [03I03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1310	1	SCREW	1/4" X 1/2"
2	19H3554	4	Screw	1/4" X 0.880", MACH., 1/4" X 1"
3	12H302	4	Lock Washer	1/4"
4	12H293	1	Lock Washer	7/16", (SUB FOR T36003)
5	24H1287	1	Washer	9/32" X 5/8" X 0.065"
6	T123401	1	CAP	(SUB FOR U17388)
7	T129949	1	SLEEVE	-
8	T36004	1	FOLLOWER	DETENT BALL
9	T36002	1	SPRING	-
10	T120233	4	BALL	DETENT, (SUB FOR H22694, THIS APPLICATION)
11	-	1	Part 11	DETENT, (SUB FOR T44194) ( T123402 NO LONGER AVAILABLE)
12	T44192	1	ROUND RETAINER	DETENT
13	12H304	1	Lock Washer	3/8", (ALSO ORDER AT151244)
14	T34974	1	SPRING	-
15	T75987	1	PLUG	-
16	-	2	Part 16	(K) ( T22064 NO LONGER AVAILABLE)
17	-	1	Part 17	VALVE, (SUB AT128505)
18	-	1	Part 18	(SUB AT128505)
19	U17396	1	POPPET	CHECK
20	U17406	1	SPRING	CHECK
21	U17409	1	O-Ring	(K)
22	U17393	1	FITTING	-
23	T75972	4	Back-Up Ring	-
24	U15242	2	O-RING	(K)
25	T77072	2	O-Ring	-
26	W19903	2	O-Ring	-
27	-	2	Part 27	(SUB AT80421)
28	AT80421	2	PRESSURE RELIEF VALVE	RELIEF, 18,616 KPA (186 BAR) 2700 PSI
29	T129946	1	SPRING	-
30	T118736	1	SEAL	(K)
31	T118737	1	THRUST WASHER	(K)
32	T106147	1	PLATE	(K)
33	12H302	2	Lock Washer	1/4"
34	19H2701	2	SCREW	1/4" X 5/8"
35	-	1	Part 35	(SECTION) ( AT80422, AT128505, AT151246 NO LONGER AVAILABLE) (ORDER INDIVIDUAL COMPONENTS) (ALSO ORDER AT151244 SEAL KIT)
