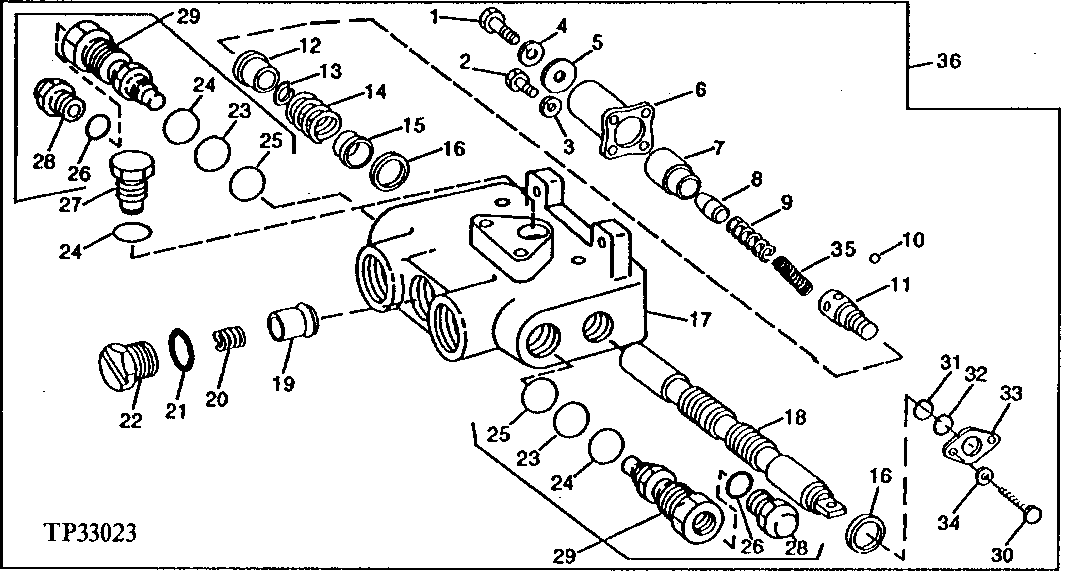

GRAPPLE VALVE SECTION (DUAL FUNCTION BOOM) (648D GRAPPLE SKIDDER) [03I10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1310	1	SCREW	1/4" X 1/2", 7/16" X 1/2"
2	19H3554	4	Screw	1/4" X 0.880", MACH., 1/4" X 1"
3	12H302	4	Lock Washer	1/4"
4	12H293	1	Lock Washer	7/16", (SUB FOR T36003)
5	24H1287	1	Washer	9/32" X 5/8" X 0.065", (SUB FOR T36001)
6	T123401	1	CAP	-
6	-	1	Part 7	( T118754 NO LONGER AVAILABLE)
7	T129949	1	SLEEVE	(SUB FOR T44193)
8	T36004	1	FOLLOWER	DENTENT BALL
9	T36002	1	SPRING	-
10	T120233	4	BALL	DETENT, (SUB FOR H22694)
11	-	1	Part 12	DETENT, (SUB FOR T44194) ( T123402 NO LONGER AVAILABLE)
12	T44192	1	ROUND RETAINER	DENTENT
13	12H304	1	Lock Washer	3/8"
14	T34974	1	SPRING	-
15	T75987	1	PLUG	-
16	T122063	2	O-RING	(K1) (SUB FOR (2) T27593)
16	T122064	2	O-RING	(K2) (SUB FOR T106371, THIS APPLICATION)
17	-	1	Part 19	VALVE, (SUB AT149939)
18	-	1	Part 20	(SUB AT149939)
19	U17396	1	POPPET	CHECK
20	U17406	1	SPRING	CHECK
21	U17409	1	O-Ring	(K1) (K2) CHECK
22	U17393	1	FITTING	CHECK
23	T75972	4	Back-Up Ring	(K1)
24	U15242	3	O-RING	(K1) (K2)
25	T77072	2	O-Ring	(K1)
26	W19903	2	O-Ring	-
27	T38928	1	FITTING	CLOSED CENTER
28	-	2	Part 30	(SUB AT80421)
29	AT80421	2	PRESSURE RELIEF VALVE	RELIEF 18 616 KPA (186 BAR) (2700 PSI)
30	19H2701	2	SCREW	1/4" X 5/8"
31	T118736	2	SEAL	(K2)
32	T118737	2	THRUST WASHER	(K2)
33	T106147	1	PLATE	(K2)
34	12H302	2	Lock Washer	1/4"
35	T129946	1	SPRING	-
36	AT80427	1	SECTION	GRAPPLE, (SUB AT149939)
36	AT149939	1	SPOOL VALVE	GRAPPLE, (SUB FOR AT84794 AND AT128506) (ALSO INCLUDES AT149344 POSITIONER)
