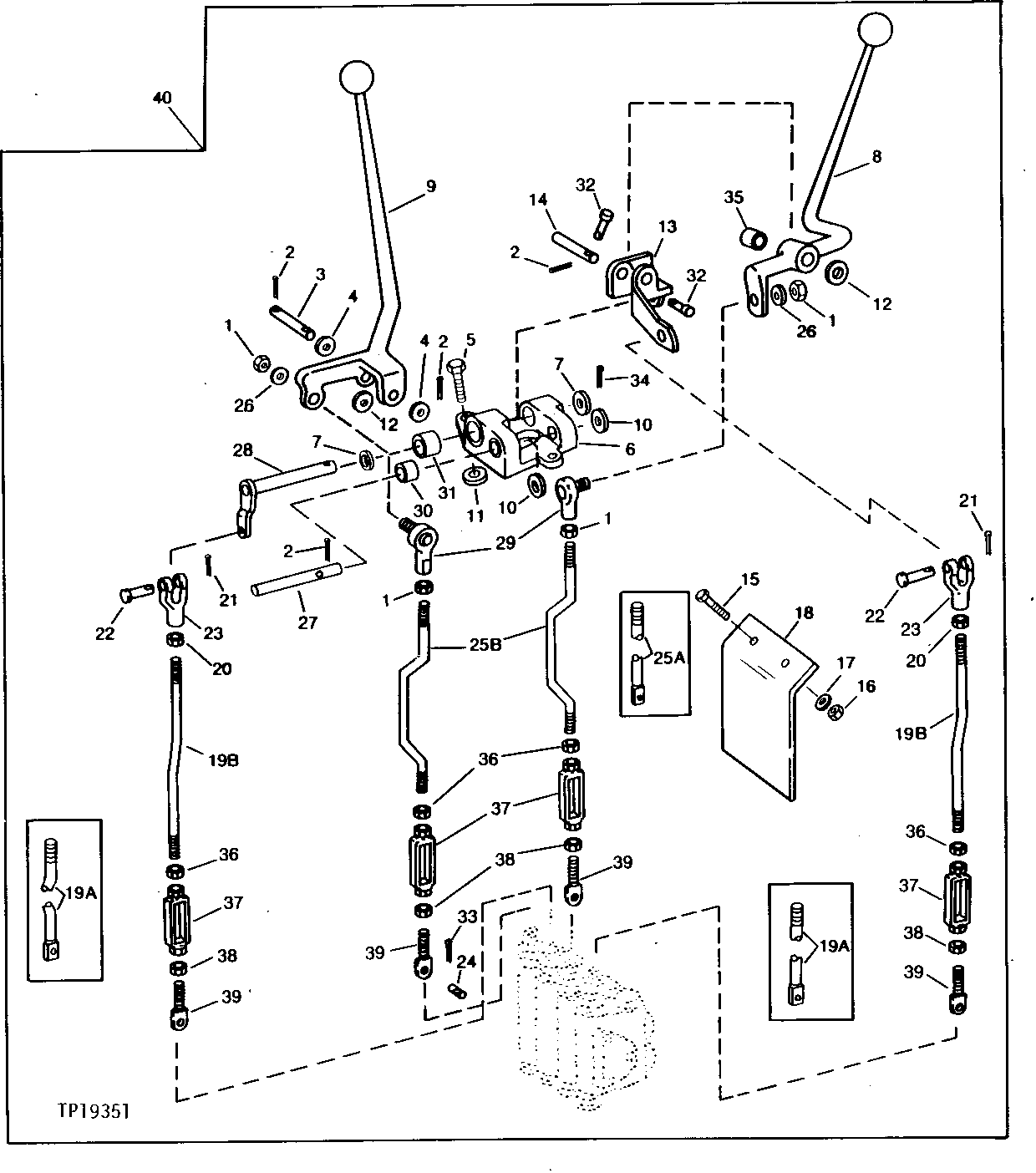

GRAPPLE CONTROLS (DUAL FUNCTION BOOM) (648D GRAPPLE SKIDDER) [03H13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H882	4	Nut	5/16"
2	11M7015	3	Cotter Pin	3.200 X 25 MM
3	T77652	1	PIN FASTENER	-
4	T16746	2	BUSHING	-
5	19H2676	2	Cap Screw	3/8" X 1"
6	T51582	1	BASE	-
7	24H1275	3	Washer	1-1/64" X 1-1/2" X 0.075"
8	T77648	1	HANDLE	ROTATE AND GRAPPLE
9	T77650	1	HANDLE	LIFT AND GRAPPLE
10	24H1362	2	Washer	41/64" X 1" X 0.075"
11	24H1305	2	Washer	13/32" X 13/16" X 0.065"
12	24H1849	4	Washer	17/32" X 1" X 0.036"
13	T77646	1	PIVOT	-
14	T77649	1	PIN FASTENER	-
15	19H1948	2	Cap Screw	1/4" X 3/4", (NOT INCLUDED WITH AT78631)
16	24H1287	2	Washer	9/32" X 5/8" X 0.065", (NOT INCLUDED WITH AT78631)
17	14H786	2	Nut	1/4", (NOT INCLUDED WITH AT78631)
18	T77651	1	SHIELD	CONTROL ROD (NOT INCLUDED WITH AT78631)
20	14H934	2	Nut	7/16"
21	11M7077	2	Cotter Pin	1.600 X 25 MM
22	T11713	2	PIN	PIVOT SHAFT TO YOKE
23	T51589	2	YOKE	ADJUSTABLE
24	T19155	4	Pin Fastener	SPOOL TO ROD END
26	R64840	2	Washer	-
27	T77647	1	PIN FASTENER	PIVOT, ROTATE LEVER
28	AT76503	1	SHAFT	PIVOT, LIFT AND GRAPPLE
29	AT48548	1	Ball Joint	(NOT INCLUDED WITH AT78631)
29	AT53798	2	BALL JOINT	-
30	T37880	2	BUSHING	-
31	E13979	2	Bushing	-
32	U44016	2	PIN FASTENER	(SUB FOR T15652, THIS APPLICATION)
33	11M7081	6	Cotter Pin	2.500 X 20 MM
34	11M7083	1	Cotter Pin	3.200 X 50 MM
35	-	1	Part 38	(SUB FOR P42873) (NO LONGER AVAILABLE)
36	14H732	4	Nut	3/8"
37	M84802	4	Turnbuckle	-
38	14H1008	4	Nut	3/8"
39	T81269	4	EYEBOLT	-
40	-	1	Part 43	( AT78631 - NO LONGER AVAILABLE)
19A	T51581	2	ROD	(SUB T81268, T81269, M84802, 14H732 AND 14H1008) (NOT INCLUDED WITH AT78631)
19B	T81268	2	LEVER	-
25A	T51580	2	ROD	LIFT LINKAGE, (SUB T81267, T81269, M84802, AT53798, 14H732 AND 14H1008) (NOT INCLUDED WITH AT78631)
25B	T81267	2	ROD	-

GRAPPLE CONTROLS (DUAL FUNCTION BOOM) (648D GRAPPLE SKIDDER) [03H13]
