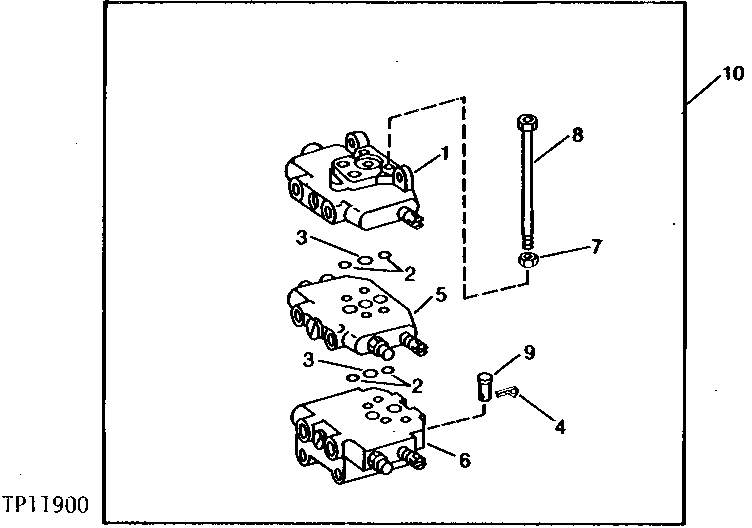

GRAPPLE CONTROL VALVE (SINGLE FUNCTION BOOM) (648D GRAPPLE SKIDDER) [03H25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT84784	1	SPOOL VALVE	ROTATE
1	AT59597	1	VALVE	ROTATE SECTION, (SUB AT84784)
2	T30423	4	O-RING	(K) (USE WITH AT128505 AND AT143001)
2	-	2	Part 4	(USE WITH AT151245)
3	T30424	2	O-RING	(K) (USE WITH AT128505 AND AT143001)
3	-	1	Part 6	(USE WITH AT151245 AND AT151246)
4	11M7081	3	Cotter Pin	2.500 X 20 MM
5	AT80422	1	SECTION	GRAPPLE SECTION, (SUB AT128505)
5	AT151246	1	SPOOL VALVE	GRAPPLE, (SUB FOR AT84790 AND AT128505) (ALSO ORDER AT151244 SEAL KIT)
6	AT80418	1	COVER	BOOM SECTION, (SUB AT84789)
6	AT151245	1	SPOOL VALVE	(SUB FOR AT143001) (ALSO ORDER AT151244 SEAL KIT AND AT151782 VALVE KIT)
6	AT84789	1	VALVE	INLET AND ARCH, (SUB AT143001) (ALSO ORDER AT142904 AND AT142905)
7	24H1305	4	Washer	13/32" X 13/16" X 0.065"
8	19H2345	4	Cap Screw	3/8" X 5-1/2", (SUB FOR T80150)
9	T19155	3	Pin Fastener	-
10	AT76518	1	VALVE	COMPLETE, (SUB AT128502)
10	AT128502	1	CONTROL VALVE	(SUB AT141996) (SUB FOR AT84430 AND AT114124)
10	AT150429	1	SPOOL VALVE	(SUB FOR AT141996)

GRAPPLE CONTROL VALVE (SINGLE FUNCTION BOOM) (648D GRAPPLE SKIDDER) [03H25]
