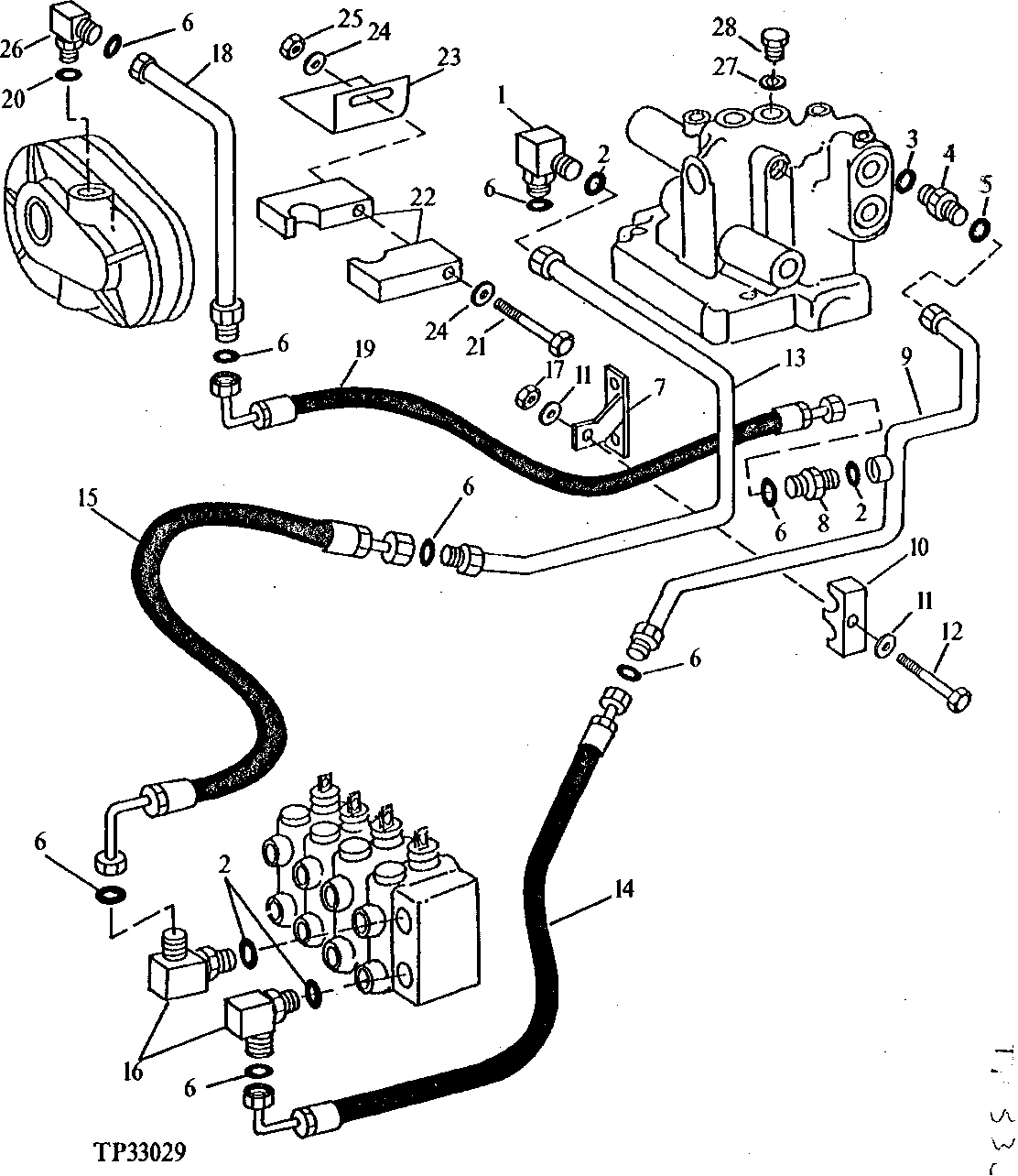

GRAPPLE CONTROL VALVE HYDRAULICS (DUAL AND SINGLE FUNCTION BOOM) (648D GRAPPLE SKIDDER) [03I24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1037	1	Elbow Fitting	-
2	R29936	4	O-Ring	-
3	U13639	1	O-Ring	-
4	38H1165	1	Adapter Fitting	-
5	T78612	1	O-Ring	-
6	T76938	8	O-Ring	-
7	T51590	1	SUPPORT	CLAMP
8	38H1164	1	Adapter Fitting	-
9	AT78905	1	LINE	-
10	T68522	1	CLAMP	-
11	24H1211	2	Washer	9/16" X 1-3/8" X 0.105"
12	19H2644	1	Cap Screw	1/2" X 2-1/2"
13	AT107905	1	OIL LINE	(SUB FOR AT78911)
14	AT78222	1	Hydraulic Hose	1-7/16" X 613 MM (24-1/4") X 1-7/16"
14	AT142905	1	HYDRAULIC HOSE - FABRICATE	(K) 1-7/16" X 610 MM (24") X 1-7/16", (USE WITH AT151247 LEFT COVER SECTION VALVE)
15	AT78221	1	HYDRAULIC HOSE	1-7/16" X 619 MM (24-1/4") X 1-7/16"
15	AT142904	1	HYDRAULIC HOSE - FABRICATE	(K) 1-7/16" X 670 MM (26-1/2") X 1-7/16", (USE WITH AT151247 LEFT COVER SECTION VALVE)
16	AT82376	2	ELBOW FITTING	(SUB FOR AT78208)
17	14H1040	1	Nut	1/2"
18	AT78176	1	OIL LINE	-
19	AT78177	1	HYDRAULIC HOSE - FABRICATE	1-7/16" X 670 MM (26-1/2") X 1-7/16"
20	U12547	1	O-Ring	-
21	19H3208	1	Cap Screw	5/8" X 3"
22	T45034	2	CLAMP	-
23	T77912	1	ANGLE	-
24	24H1368	2	Washer	21/32" X 1-5/16" X 0.090"
25	14H1039	1	Nut	5/8"
26	38H1305	1	Elbow Fitting	-
27	R26448	1	O-Ring	(K) (USE WITH AT151247 LEFT COVER SECTION VALVE)
28	R27218	1	Fitting Plug	(K) (USE WITH AT151247 LEFT COVER SECTION VALVE)

GRAPPLE CONTROL VALVE HYDRAULICS (DUAL AND SINGLE FUNCTION BOOM) (648D GRAPPLE SKIDDER) [03I24]
