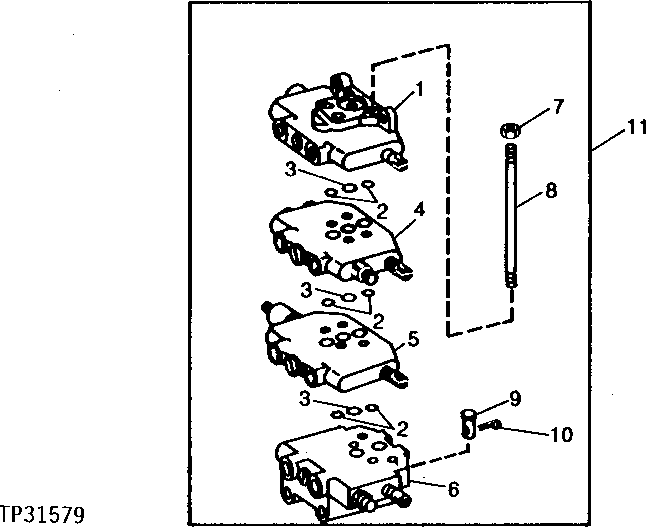

GRAPPLE CONTROL VALVE (DUAL FUNCTION BOOM) (648D GRAPPLE SKIDDER) [03I09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT149939	1	SPOOL VALVE	GRAPPLE, (SUB FOR AT84794 AND AT128506)
1	AT80427	1	SECTION	GRAPPLE SECTION, (SUB AT149939)
2	T30423	6	O-RING	(K) (USE WITH AT84793, AT84792 AND AT143000)
2	-	2	Part 4	(K) (USE WITH AT149939, AT151247, AT151248 AND AT151249)
3	T30424	3	O-RING	(K) (USE WITH AT84793, AT84792 AND AT143000)
3	-	1	Part 6	(K) (USE WITH AT149939, AT151247, AT151248 AND AT151249)
4	AT80426	1	SECTION	BOOM SECTION, (SUB AT84793)
4	AT151249	1	SPOOL VALVE	BOOM, (SUB FOR AT84793) (ALSO ORDER AT151244 SEAL REPAIR KIT)
5	AT80425	1	SECTION	ROTATE SECTION, (SUB AT84792)
5	AT151248	1	SPOOL VALVE	ROTATE, (SUB FOR AT84792) (ALSO ORDER AT151244 SEAL REPAIR KIT)
6	AT80423	1	COVER	ARCH SECTION, (SUB AT84791)
6	AT151247	1	SPOOL VALVE	(SUB FOR AT143000) (ALSO ORDER AT151244 SEAL REPAIR KIT AND AT151782 VALVE KIT)
6	AT84791	1	VALVE	(SUB AT143000) (ALSO ORDER AT142904 AND AT142905)
7	U13184	4	Lock Nut	-
8	T44172	4	ROD	-
9	T19155	4	Pin Fastener	-
10	11M7081	4	Cotter Pin	2.500 X 20 MM
11	AT78207	1	VALVE	COMPLETE, (SUB AT128503)
11	AT128503	1	CONTROL VALVE	COMPLETE, (SUB AT141995) (SUB FOR AT84431 AND AT114125)
11	AT141995	1	CONTROL VALVE	( AT141995 NO LONGER AVAILABLE) (ORDER INDIVIDUAL COMPONENTS)
