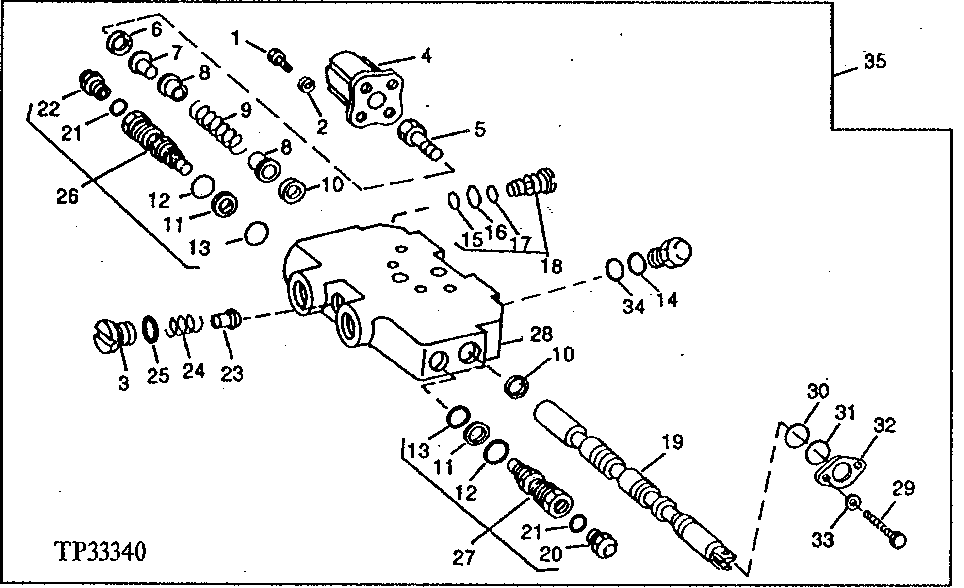

BOOM VALVE SECTION (DUAL FUNCTION BOOM) (648D GRAPPLE SKIDDER) [03I14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1174	4	SCREW	MACH. 1/4" X 1"
2	12H302	4	Lock Washer	1/4"
3	U17393	1	FITTING	-
4	T75985	1	COVER	-
4	-	1	Part 5	( T118894 NO LONGER AVAILABLE)
5	19H3295	1	Screw	HS, SAE 8, 3/8" X 3/4", (SUB FOR U40662)
6	U11298	1	LOCK WASHER	-
7	U17391	1	ROUND RETAINER	SPOOL
8	T75987	2	PLUG	STOP
9	T34974	1	SPRING	CENTERING
10	T122064	2	O-RING	(K2) (SUB FOR T106371, THIS APPLICATION)
10	T122063	2	O-RING	(K1) (SUB FOR (2) T27593)
11	T75972	2	Back-Up Ring	(K1)
12	U15242	3	O-RING	(K1)
13	T77072	1	O-Ring	(K1)
14	U15242	1	O-RING	(K2)
15	T75984	2	O-Ring	(K1) (K2) (SUB FOR T15710, THIS APPLICATION)
16	T78627	1	WASHER	-
17	U15192	1	O-Ring	(K1) (K2)
18	AT156986	1	PRESSURE RELIEF VALVE	(ANTI-CAVITATION, LOWER)
19	-	1	Part 21	(SUB AT84793)
20	-	1	Part 22	(SUB AT80421)
21	W19903	2	O-Ring	-
22	-	1	Part 24	(SUB AT80424)
23	U17396	1	POPPET	CHECK
24	U17406	1	SPRING	CHECK
25	U17409	1	O-Ring	(K1) (K2)
26	AT80424	1	PRESSURE RELIEF VALVE	6 895 KPA (69 BAR) (1000 PSI)
27	AT80421	1	PRESSURE RELIEF VALVE	RELIEF 18 616 KPA (186 BAR) (2700 PSI)
28	-	1	Part 30	(SUB AT84793)
29	19H2701	1	SCREW	1/4" X 5/8"
30	T118736	2	SEAL	(K2)
31	T118737	2	THRUST WASHER	(K2)
32	T106147	1	PLATE	(K2)
33	12H302	1	Lock Washer	1/4"
34	T44948	1	O-Ring	(K2)
35	AT80426	1	SECTION	BOOM, (SUB AT151249)
35	AT151249	1	SPOOL VALVE	BOOM, (SUB FOR AT84793) (ALSO ORDER AT151244 KIT)
