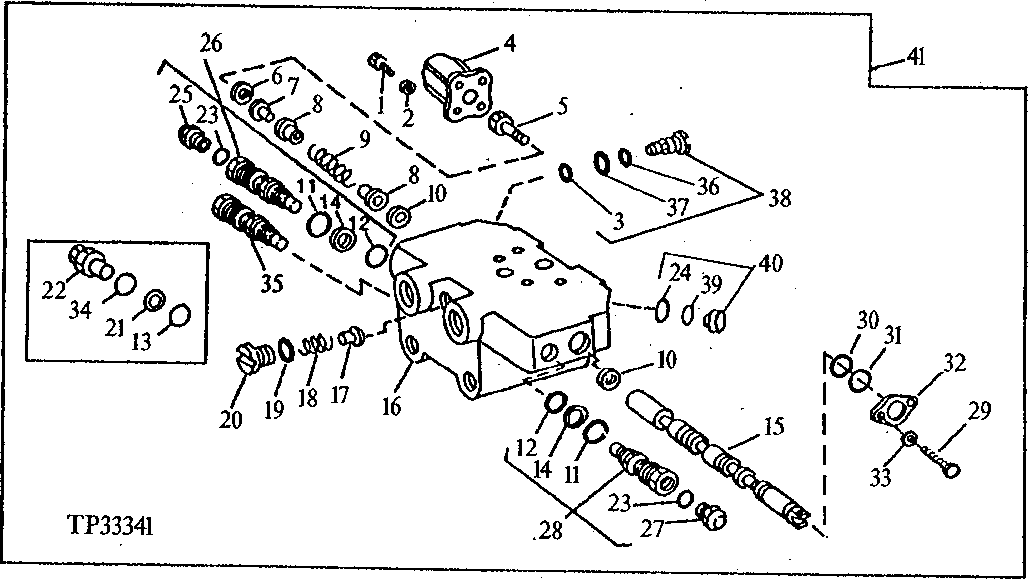

ARCH VALVE SECTION (DUAL FUNCTION BOOM) (648D GRAPPLE SKIDDER) [03I19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1174	4	SCREW	MACH. 1/4" X 1"
2	12H302	4	Lock Washer	1/4"
3	T75984	1	O-Ring	(K)
4	T75985	1	COVER	-
4	-	1	Part 5	( T118894 NO LONGER AVAILABLE)
5	19H3295	1	Screw	HS, SAE 8, 3/8" X 3/4", (SUB FOR U40662)
6	U11298	1	LOCK WASHER	-
7	U17391	1	ROUND RETAINER	-
8	T75987	2	PLUG	-
9	T34974	1	SPRING	CENTERING
10	T122063	2	O-RING	(SUB FOR (2) T27593)
10	T122064	2	O-RING	(K) (SUB FOR T106371, THIS APPLICATION)
11	U15242	2	O-RING	(K)
12	T77072	2	O-Ring	-
13	U15192	1	O-Ring	(K)
14	T75972	2	Back-Up Ring	-
15	-	1	Part 17	(SUB AT84791)
16	-	1	Part 18	VALVE, (SUB AT84791)
17	U17396	1	POPPET	-
18	U17406	1	SPRING	-
19	U17409	1	O-Ring	(K)
20	U17393	1	FITTING	-
21	U17402	1	Washer	(K) BACKUP
22	T38926	1	PLUG	NO RELIEF
23	W19903	2	O-Ring	-
24	T44948	1	O-Ring	(K)
25	-	1	Part 27	(SUB AT80424)
26	AT80424	1	PRESSURE RELIEF VALVE	6 895 KPA (69 BAR) (1,000 PSI)
27	-	1	Part 29	(SUB AT80421)
28	AT80421	1	PRESSURE RELIEF VALVE	18 616 KPA (186 BAR) (27.000 PSI)
29	19H2701	2	SCREW	1/4" X 5/8"
30	T118736	2	SEAL	(K)
31	T118737	2	THRUST WASHER	(K)
32	T106147	1	PLATE	(K)
33	12H302	2	Lock Washer	1/4"
34	U17409	1	O-Ring	-
35	AT141997	1	PRESSURE RELIEF VALVE	-
36	U15192	1	O-Ring	(K)
37	T78627	1	WASHER	-
38	AT156986	1	PRESSURE RELIEF VALVE	(ANTI-CAVITATION, LOWER)
39	U15242	1	O-RING	(K)
40	-	1	Part 42	(SUB AT151247)
41	AT80423	1	COVER	ARCH AND END COVER, (SUB AT84791)
41	AT84791	1	VALVE	ARCH (INLET AND OUTLET) (SUB AT151247) (ALSO ORDER AT142904 AND AT142905)
41	AT151247	1	SPOOL VALVE	(SUB FOR AT143000) (ALSO ORDER AT151244 SEAL REPAIR KIT AND AT151782 GRAPPLE SECTION VALVE KIT)
