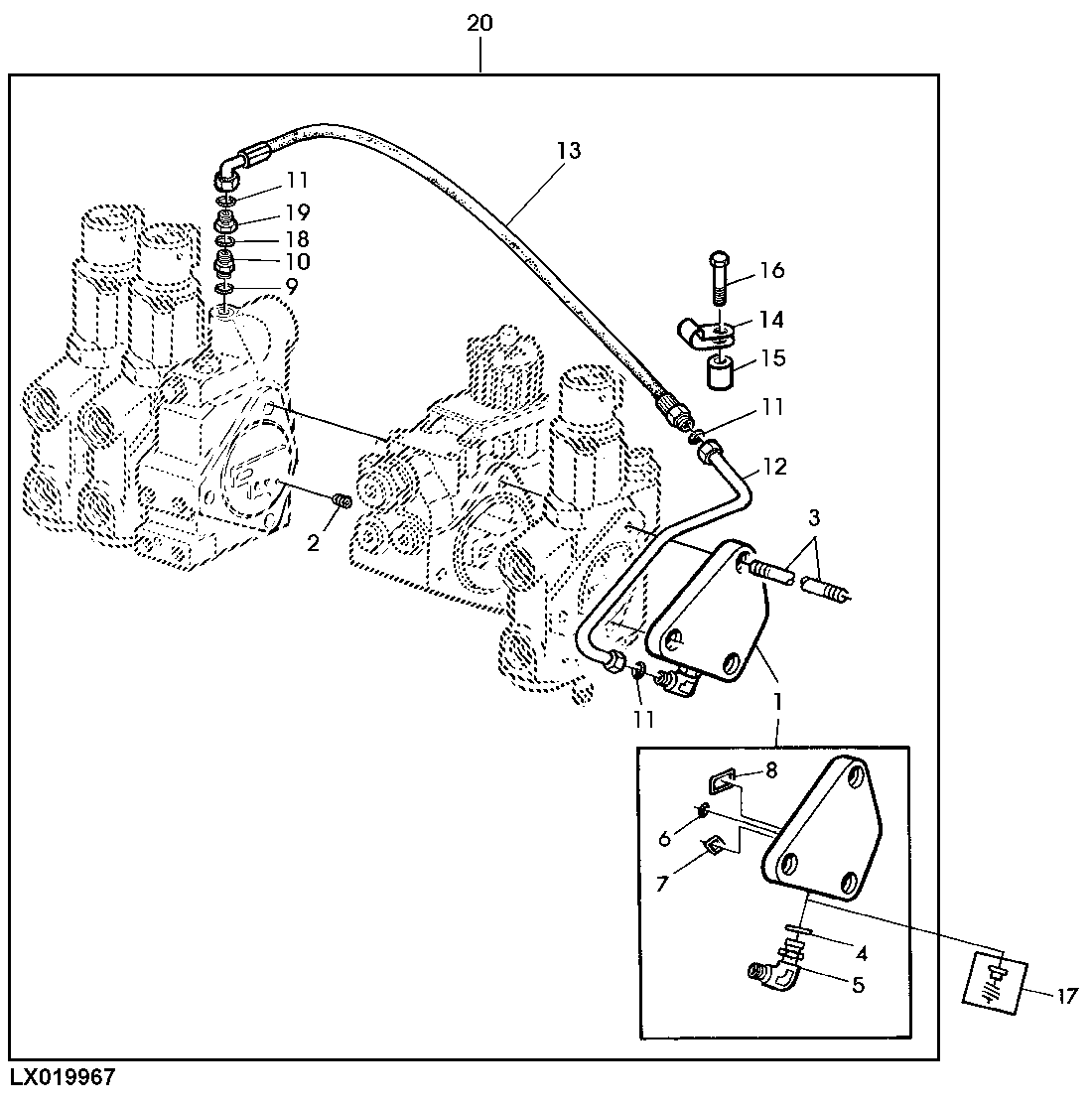

END COVER, R.H. SIDE, SELECTIVE CONTROL VALVES (301 SERIES)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL160414	1	Cover	(SUB FOR AL78298)
2	22H896	1	Set Screw	0.190" X 3/16"
3	L169847	3	Rod	(WITH 3RD CONTROL VALVE) LGTH= 175MM, (SUB FOR 42M7055)
3	L169849	3	Rod	(WITH 4TH CONTROL VALVE) LGTH= 225MM, (SUB FOR 42M7054)
4	51M7040	1	O-Ring	9.300 X 2.200 mm
5	38H5015	1	Elbow Fitting	-
6	U42902	1	O-Ring	-
7	H63283	1	O-Ring	-
8	T75984	1	O-Ring	-
9	51M7041	1	O-Ring	11.300 X 2.200 mm
10	L113406	1	Fitting	-
11	T77814	3	O-Ring	-
12	AL77797	1	Oil Line	(WITH 3RD CONTROL VALVE)
12	AL77798	1	Oil Line	(WITH 4TH CONTROL VALVE)
13	AL155011	1	Hydraulic Hose	(SUB FOR AL82382)
14	R46414	1	Clamp	-
15	Z40933	1	Bushing	-
15	L58438	1	Bushing	(WITH HYDR. TRAILER BRAKES)
16	19M7181	1	Cap Screw	M10 X 55
17	AL115106	1	Check Valve	-
18	T77613	1	O-Ring	-
19	38H5184	1	Reducer	-
20	AL116912	1	Mounting Parts	-

END COVER, R.H. SIDE, SELECTIVE CONTROL VALVES (301 SERIES)
