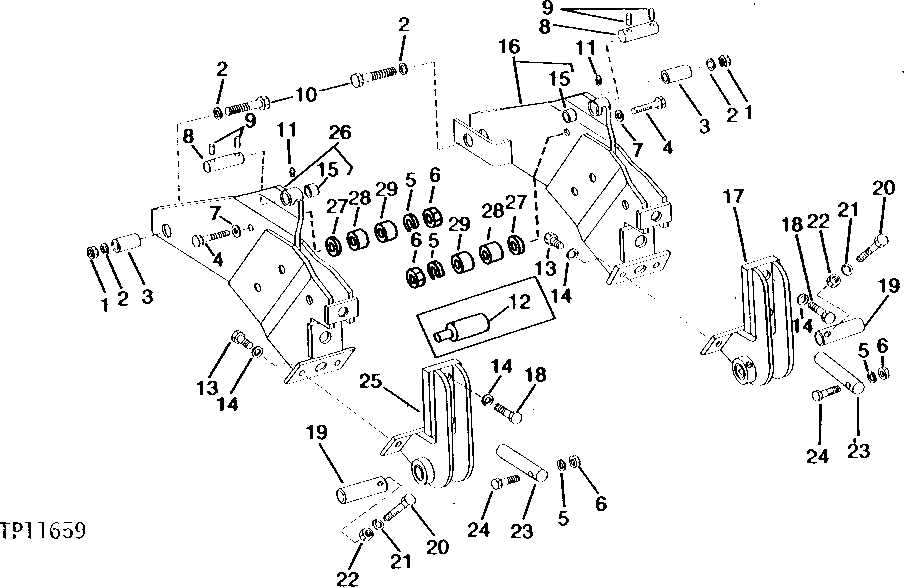

MOUNTING FRAMES AND PIVOT ASSEMBLIES (WITH ONE-HOLE MOUNTING FRAMES) [A14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T44249	2	LOCK NUT	-
2	R30399	4	Washer	-
3	T47054	2	BUSHING	-
4	19H3136	2	Cap Screw	1/2" X 5-3/4"
5	12H301	4	Lock Washer	1/2"
6	14H1040	4	Nut	1/2", (SUB FOR 14H809)
7	T18407	2	WASHER	-
8	T38674	2	PIN FASTENER	-
9	34H333	4	Spring Pin	5/16" X 1-7/8"
10	19H3313	2	Cap Screw	1" X 4-1/2"
11	JD7759	2	Lubrication Fitting	1/8", STRAIGHT
12	U16921	2	BUSHING	(SUB (2) T18407, (2) 28H1600 AND (2) 28H1788)
13	19H2717	4	Cap Screw	3/4" X 1-3/4"
14	12H236	6	Lock Washer	3/4"
15	U10052	2	BUSHING	-
16	AT38781	1	FRAME	L.H. (REQUIRED FOR A BULLDOZER ONLY) (SUB FOR BU10741)
16	AT38783	1	FRAME	L.H. (REQUIRED FOR A BULLDOZER WITH BACKHOE, RIPPER, OR ROTOBOOM) (SUB FOR BU40077)
17	AU13968	1	PIVOT	L.H.
18	19H1782	2	Cap Screw	3/4" X 2-1/4"
19	U16920	2	PIN FASTENER	-
20	19H3170	2	Cap Screw	5/8" X 4-1/2"
21	12H294	2	Lock Washer	5/8"
22	BP14495	2	Lock Nut	5/8"
23	U41528	2	Pin Fastener	(SUB FOR U16919)
24	19H1868	2	CAP SCREW	1/2" X 3-3/4"
25	AU14504	1	PIVOT	R.H.
26	AT38780	1	FRAME	R.H. (REQUIRED FOR A BULLDOZER ONLY) (SUB FOR BU10740)
26	AT38782	1	FRAME	R.H. (REQUIRED FOR A BULLDOZER WITH BACKHOE, RIPPER, OR ROTOBOOM) (SUB FOR BU40076)
27	T18407	2	WASHER	-
28	28H1600	2	Spacer	0.546" X 0.840" X 1"
29	28H1788	2	BUSHING	0.546" X 0.840" X 3-3/16"

MOUNTING FRAMES AND PIVOT ASSEMBLIES (WITH ONE-HOLE MOUNTING FRAMES) [A14]
