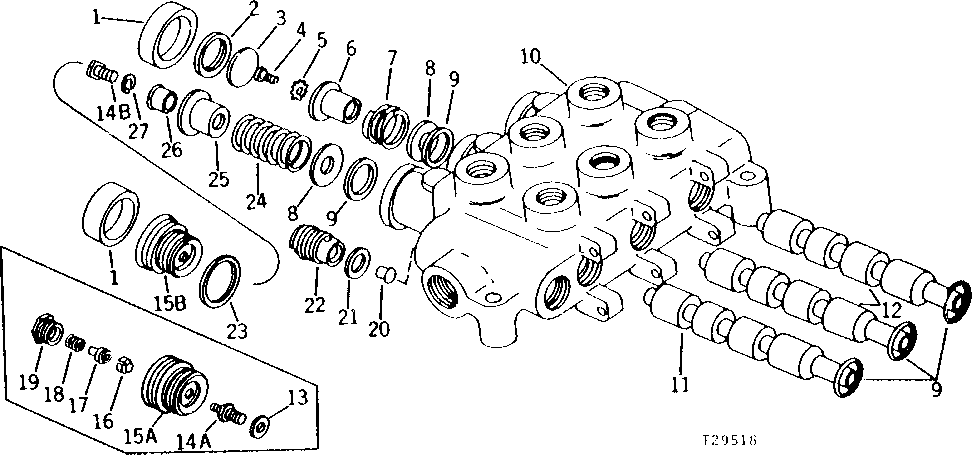

CONTROL VALVE AND SPOOLS (JD450 CRAWLER) [A22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T10639	3	CAP	-
2	H35226	2	Snap Ring	(SUB FOR U11027)
3	T10632	2	CAP	-
4	21H1310	2	SCREW	1/4" X 1/2"
5	T10662	2	WASHER	-
6	W19896	2	LOCKING COLLAR	(SUB FOR T10631)
7	T10633	1	Spring	-
7	U12892	1	SPRING	-
8	T10642	3	WASHER	-
9	T10638	6	SEAL	-
10	-	1	Part 11	(A) (SUB AT30673)
11	-	1	Part 12	(A) (SUB AT30673)
12	-	2	Part 13	(A) (SUB AT30673)
13	T10661	1	WASHER	(SUB AT30675, T33722 AND T33723)
16	T10657	2	FINGER	(SUB AT30675, T33722 AND T33723)
17	T10647	1	HOLDER	(SUB AT30675, T33722 AND T33723)
18	T10659	1	SPRING	(SUB AT30675, T33722 AND T33723)
19	T10648	1	SCREW	(SUB AT30675, T33722 AND T33723)
20	U13616	1	Pressure Relief Valve	(B)
21	32246	1	O-Ring	(B) (SUB FOR T12048)
22	U13613	1	PLUG	(B)
23	W16399	1	WASHER	-
24	U13360	1	SPRING	-
25	T10645	1	ROUND RETAINER	-
26	T33722	1	PLUNGER	-
27	12H303	1	Lock Washer	5/16"
..	AU13864	1	VALVE	(A) (INCLUDES ALL PARTS ON THIS PAGE AND PAGE 15-4) (SUB AT30673)
..	AT55838	1	KIT	CHECK PLUG
14A	T10643	1	ADAPTER	(SUB AT30675, T33722 AND T33723)
14B	T33723	1	BOLT	-
15A	T10646	1	CAP (HAT)	(SUB AT30675, T33722 AND T33723)
15B	AT30675	1	DETENT	-

CONTROL VALVE AND SPOOLS (JD450 CRAWLER) [A22]
