DIFF. DRIVE SHAFT, RANGE TRANSMISSION (STANDARD VERSION)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL110317	1	Bevel Gear Drive	Z= 10/47
1	AL110319	1	Bevel Gear Drive	Z= 9/53
1	AL110318	1	Bevel Gear Drive	Z= 10/53
2	AL113714	1	Cylindrical Roller Bearing	(SUB FOR L78083, AL81443, AL110877)
3	AL77434	2	Cylindrical Roller Bearing	-
4	L78040	1	Bearing Housing W/O Bearing	-
5	L77775	5	Compression Spring	-
6	L78073	1	Ring	TK= 2.50MM (0.098")
6	L78072	1	Ring	TK= 2.60MM (0.102")
6	L78071	1	Ring	TK= 2.70MM (0.106")
6	L78070	1	Ring	TK= 2.80MM (0.110")
6	L78069	1	Ring	TK= 2.90MM (0.114")
6	40M7268	1	Snap Ring	TK= 3.00MM (0.118")
7	L115160	1	Shim	TK= 0.20MM (0.008"), (SUB FOR L113564)
7	L115161	1	Shim	TK= 0.30MM (0.012"), (SUB FOR L113565)
7	L115162	1	Shim	TK= 0.50MM (0.020"), (SUB FOR L113566)
8	L76923	4	Snap Ring	-
9	L113251	1	Gear	Z= 41, (SUB FOR L76019, APPL)
9	L152564	1	Pinion	Z= 50
10	L110851	1	Screw	(WITH 12 OR 16 SPEED TRANSMISSION = 30KMH) M14
11	L113339	1	Thrust Washer	TK= 4.15MM (0.163")
11	L75917	1	Thrust Washer	TK= 3.80MM (0.149")
11	L76821	1	Thrust Washer	TK= 3.65MM (0.144")
11	L76822	1	Thrust Washer	TK= 3.95MM (0.155")
12	L80346	1	Gear	(WITH 12 OR 16 SPEED TRANSMISSION = 30KMH) Z= 55, (POWRREVERSER)
12	L76637	1	Gear	(WITH 12 OR 16 SPEED TRANSMISSION = 30KMH) Z= 55
13	AL80884	2	Synchronizer	(SUB FOR AL75551)
14	L76923	1	Snap Ring	TK= 2.00MM (0.079")
14	L75904	1	Ring	TK= 2.30MM (0.090")
14	L75905	1	Snap Ring	TK= 2.20MM (0.087")
14	L75906	1	Snap Ring	TK= 2.10MM (0.083")
15	L76636	1	Gear	(WITH 12 OR 16 SPEED TRANSMISSION = 30KMH) Z= 45
15	L80345	1	Gear	(WITH 12 OR 16 SPEED TRANSMISSION = 30KMH) Z= 45, (POWRREVERSER)
16	L110060	1	Gear	(WITH 12 OR 16 SPEED TRANSMISSION = 30KMH) Z= 36
17	AL112629	1	Gear	(WITH 12 OR 16 SPEED TRANSMISSION = 30KMH) Z= 24, (POWRREVERSER)
18	40M7268	1	Snap Ring	TK= 3.00MM (0.118")
19	19M7327	5	Cap Screw	M10 X 65
20	24M7028	4	Washer	10.500 X 20 X 2 mm
21	JD10494	1	Cylindrical Roller Bearing	-
22	24M7332	1	Washer	8.400 X 23 X 4 mm
23	19M7162	1	Cap Screw	M8 X 16
24	L116130	4	Synchronizer	-

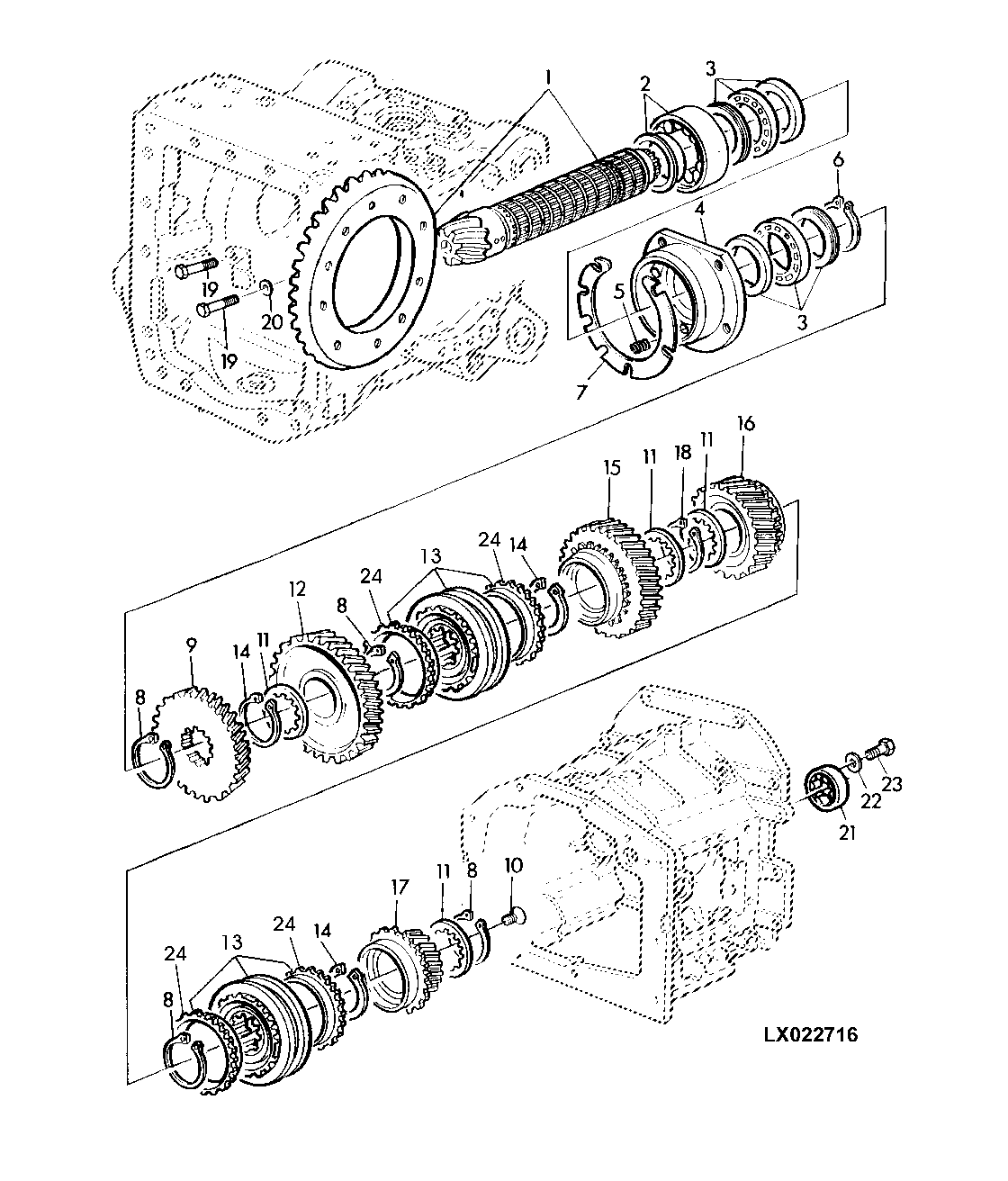

DIFF. DRIVE SHAFT, RANGE TRANSMISSION (STANDARD VERSION)
