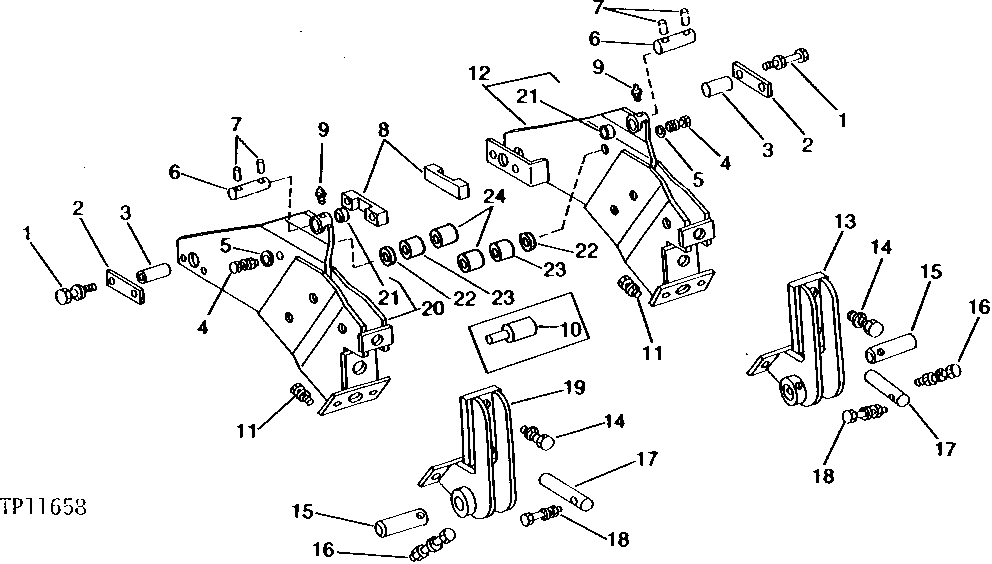

MOUNTING FRAMES AND PIVOT ASSEMBLIES (WITH THREE-HOLE MOUNTING FRAMES) [A11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H236	4	Lock Washer	3/4"
1	19H2826	4	Cap Screw	3/4" X 4-1/2"
2	U20039	2	STRAP	-
3	U16922	2	PIN	-
4	19H3136	2	Cap Screw	1/2" X 5-3/4"
4	12H301	2	Lock Washer	1/2"
4	14H1040	2	Nut	1/2", (SUB FOR 14H809)
5	T18407	2	WASHER	(SUB FOR U16718, THIS APPLICATION)
6	T38674	2	PIN FASTENER	(SUB FOR U16924)
7	34H334	4	Spring Pin	5/16" X 2"
8	U11134	2	RETAINER	-
9	JD7759	2	Lubrication Fitting	-
10	U16921	2	BUSHING	(SUB (2) T18407, (2) 28H1600 AND (2) 28H1788)
11	19H2717	4	Cap Screw	3/4" X 1-3/4"
11	12H236	4	Lock Washer	3/4"
12	-	1	Part 16	L.H. (SUB AT38781 OR AT38783) (ALSO ORDER (2) R30399, T44249, T47054 AND 19H3313)
13	AU13968	1	PIVOT	L.H.
14	19H1782	2	Cap Screw	3/4" X 2-1/4"
14	12H236	2	Lock Washer	3/4"
15	U16920	2	PIN FASTENER	-
16	19H3170	2	Cap Screw	5/8" X 4-1/2"
16	12H294	2	Lock Washer	5/8"
16	BP14495	2	Lock Nut	-
17	U41528	2	Pin Fastener	(SUB FOR U16919)
18	19H1868	2	CAP SCREW	1/2" X 3-3/4"
18	12H301	2	Lock Washer	1/2"
18	14H1040	2	Nut	1/2", (SUB FOR 14H809)
19	AU14504	1	PIVOT	R.H.
20	-	1	Part 29	R.H. (SUB AT38780 OR AT38782) (ALSO ORDER (2) R30399, T44249, T47054 AND 19H2097)
21	U10052	2	BUSHING	-
22	T18407	2	WASHER	-
23	28H1600	2	Spacer	0.546" X 0.840" X 1"
24	28H1788	2	BUSHING	0.546" X 0.840" X 3-3/16"

MOUNTING FRAMES AND PIVOT ASSEMBLIES (WITH THREE-HOLE MOUNTING FRAMES) [A11]
