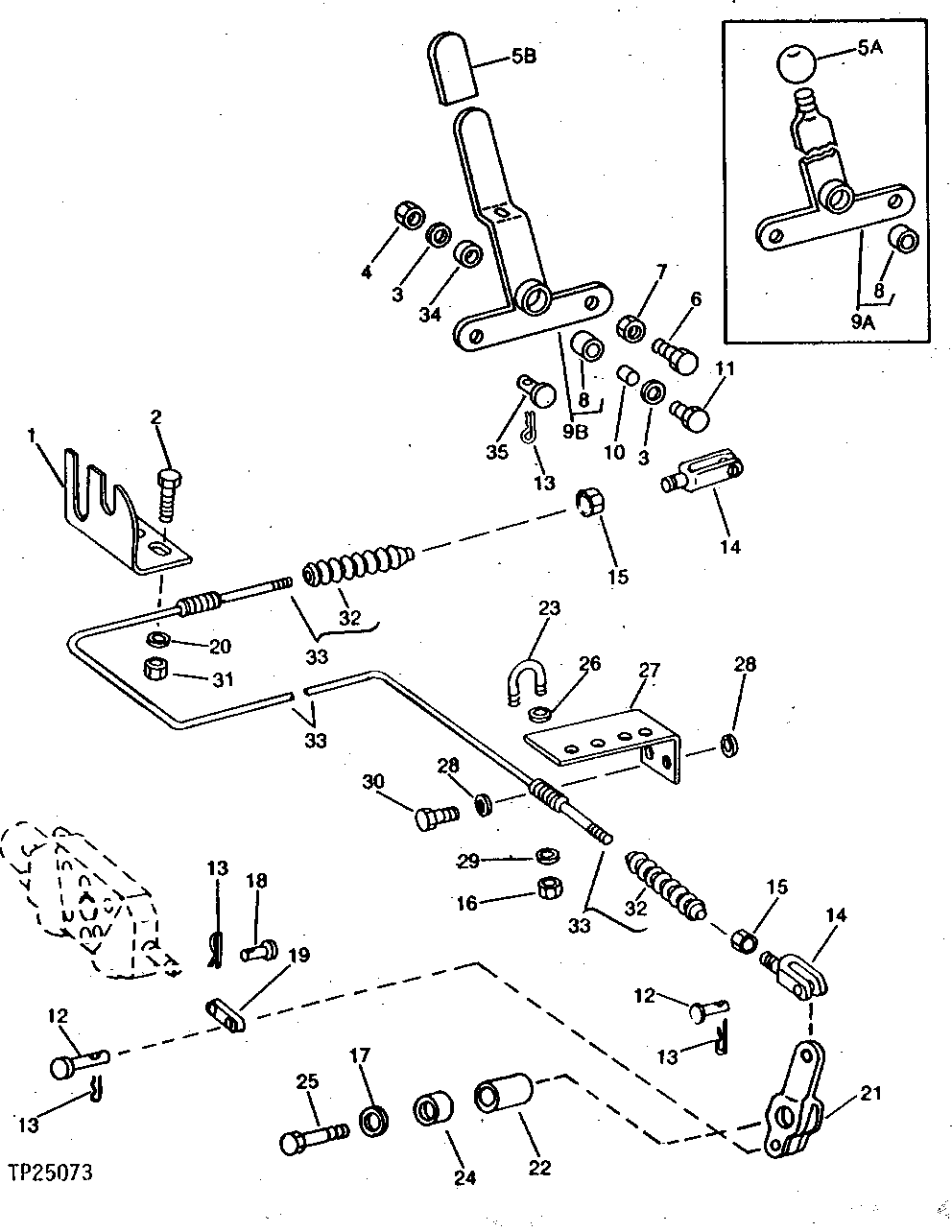

TRAILBUILDING BLADE CONTROL LINKAGE (SERIAL NO. 260822- ) [03D05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T57347	1	ANGLE	-
2	19H2705	2	Cap Screw	5/16" X 1"
3	24H1111	2	Washer	17/32" X 1-1/16" X 0.090"
4	14H1040	1	Nut	1/2", (SUB FOR 14H809)
6	19H3239	2	Cap Screw	3/8" X 1-1/4"
7	14H732	2	Nut	3/8"
8	T13742	2	BUSHING	-
10	T44730	2	BUSHING	-
11	19H1868	1	CAP SCREW	1/2" X 3-3/4"
12	T11713	4	PIN	HEADED
13	11M7077	8	Cotter Pin	1/16" X 3/4"
14	T54033	4	Yoke	END
15	14H882	4	Nut	5/16"
16	14H785	4	Nut	5/16"
17	T29342	1	Washer	-
18	T19155	2	Pin Fastener	HEADED
19	T44731	2	STRAP	-
20	24H1136	2	Washer	11/32" X 11/16" X 0.065"
21	T57344	2	BELLCRANK	BELL
22	28H1666	2	Bushing	PIPE, 1" I.D. X 1-5/16" X 7/16"
23	B2050M	2	U-BOLT	-
24	T57345	2	BUSHING	-
25	19H3550	1	Cap Screw	1/2" X 4"
26	R48808	4	Washer	-
27	T57346	1	ANGLE	-
28	M1340T	4	WASHER	-
29	24H1136	4	Washer	11/32" X 11/16" X 0.065"
30	19H3239	2	Cap Screw	3/8" X 1-1/4"
31	14H785	2	Nut	5/16"
32	T48414	4	BOOT	-
33	AT55621	2	CABLE	-
34	U12856	1	BUSHING	-
35	T19155	2	Pin Fastener	HEADED, (SUB FOR T11713, THIS APPLICATION)
5A	M526T	2	KNOB	(USE WITH AT56023 CONTROL LEVER)
5B	T41655	1	GRIP	(USE WITH AT79629)
9A	AT56023	2	LEVER	WITH BUSHING (REQUIRES M526T KNOB) (SUB AT79629 AND T41655)
9B	AT79629	1	LEVER	(USE WITH T41655)

TRAILBUILDING BLADE CONTROL LINKAGE (SERIAL NO. 260822- ) [03D05]
