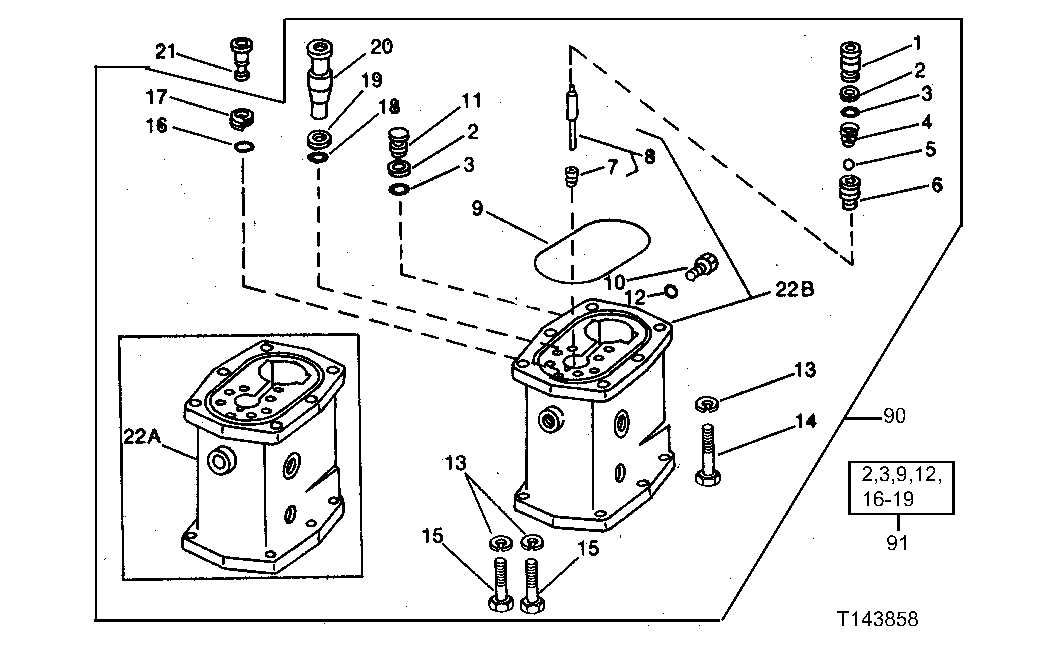

STEERING VALVE HOUSING (UPPER HALF) [02B19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R41724	4	PLUG	(A)
2	R32588	6	Back-Up Ring	(A) (D)
3	R56464	6	O-Ring	(A) (D) (SUB FOR R459R, THIS APPLICATION)
4	R26565	4	COMPRESSION SPRING	(A)
5	400R	4	Ball	(A)
6	R59083	4	VALVE	(A) (SUB FOR R28124)
6	R66635	4	VALVE	(A)
7	AR78483	4	GUIDE	(A) (SUB FOR AR31703)
8	AR49535	2	SHAFT	(A) 76 MM (3") METERING, UPPER
8	AR49536	2	SHAFT	(A) 38 MM (1-1/2") METERING, LOWER
9	R34733	1	WASHER	(A) (D)
10	R27216	1	DRAIN PLUG	(A)
11	R34131	2	Plug	(A)
12	R26287	1	O-Ring	(A) (D)
13	T20168	6	Washer	(A)
14	19H1990	4	Cap Screw	(A) HS SAE 8, 1/2" X 2-1/4" (SUB FOR R48784)
15	19H2993	2	Cap Screw	(A) 1/2" X 1-1/2", (SUB FOR R48785)
16	A4365R	1	O-Ring	(A) (D)
17	R34129	1	Back-Up Ring	(A) (D)
18	R56462	1	O-Ring	(A) (D) (SUB FOR B2762R, THIS APPLICATION)
19	R26546	1	BACK-UP RING	(A) (D)
20	R37428	1	VALVE SEAT	(A)
21	-	1	Part 23	(SUB AR62651)
90	AR63143	1	VALVE	(SUB AR98265)
90	AR86941	1	VALVE	(SUB AR98265)
90	AR98265	1	VALVE	(ASSEMBLIES ABOVE CONTAIN PARTS MARKED (A) ON PAGES LISTED IN FOOTNOTE)
91	AT59906	1	KIT	STEERING VALVE SEAL, (SUB FOR AR48759, THIS APPLICATION) (INCLUDES PARTS MARKED (D) ON THIS PAGE AND PAGES LISTED IN FOOTNOTE)
22A	R42115	1	HOUSING	(A)
22B	AR101691	1	HOUSING	(A) (MARKED R37425) (SUB FOR AR37080 AND AR101690) (ALSO ORDER (2) R40359 AND (2) R40360)

STEERING VALVE HOUSING (UPPER HALF) [02B19]

Нет текстового описания
