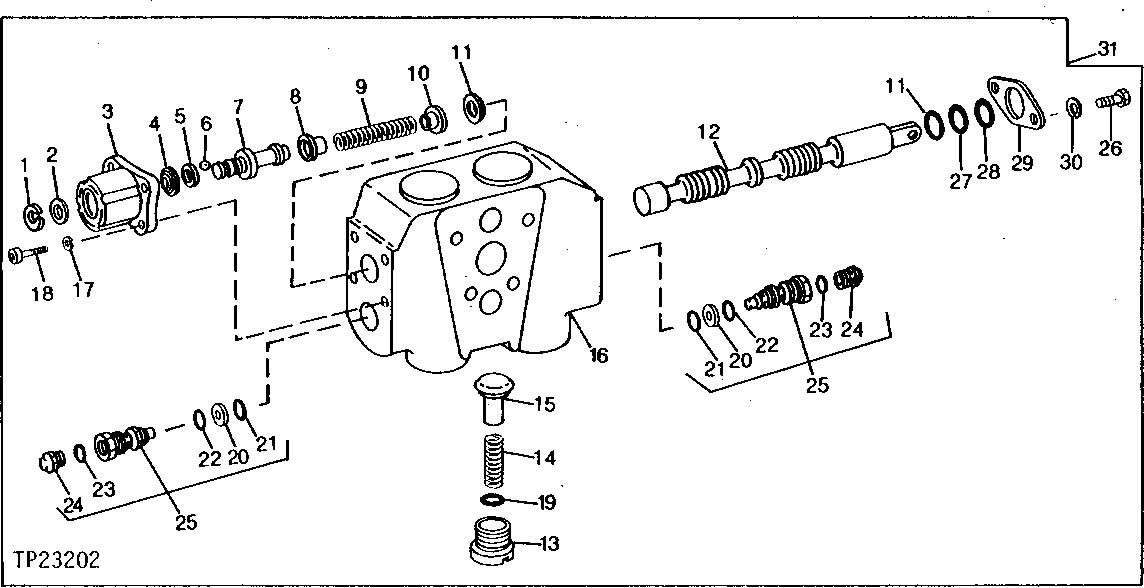

REPLACEMENT BLADE LIFT VALVE (WITH FLOAT) (TRAIL BUILDING BLADE) [03D24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	E54612	1	Snap Ring	-
2	24H1305	1	Washer	13/32" X 13/16" X 0.065"
3	U17388	1	COVER	(USE WITH AT84436)
3	T118754	1	CAP	(USE WITH AT114128)
4	U17389	1	RETAINER	-
5	U17408	1	Ring	-
6	H22694	4	BALL	-
7	T104898	1	ADAPTER FITTING	-
8	U17390	1	LOCKING COLLAR	-
9	T38927	1	Compression Spring	-
10	U17382	1	ROUND RETAINER	-
11	T122064	2	O-RING	(USE WITH AT114128) (SUB FOR T106371, THIS APPLICATION)
12	-	1	Part 13	(SUB AT114128)
13	U17393	1	FITTING	-
14	U17406	1	SPRING	-
15	U17396	1	POPPET	-
16	-	1	Part 17	(SUB AT114128)
17	12H302	4	Lock Washer	1/4"
18	21H1174	4	SCREW	1/4" X 1"
19	U17409	1	O-Ring	-
20	T75972	2	Back-Up Ring	-
21	T77072	2	O-Ring	-
22	U15242	2	O-RING	-
23	W19903	2	O-Ring	-
24	-	2	Part 25	(SUB AT81662)
25	AT81662	2	PRESSURE RELIEF VALVE	-
26	T118736	1	SEAL	(USE WITH AT114128)
27	T118737	1	THRUST WASHER	(USE WITH AT114128)
28	T106147	1	PLATE	(USE WITH AT114128)
29	12H302	4	Lock Washer	1/4"
29	12H302	2	Lock Washer	1/4", (USE WITH AT114128)
30	19H2701	4	SCREW	1/4" X 5/8"
30	19H2701	2	SCREW	1/4" X 5/8", (USE WITH AT114128)
31	AT114128	1	CONTROL VALVE	(SUB FOR AT84436)
