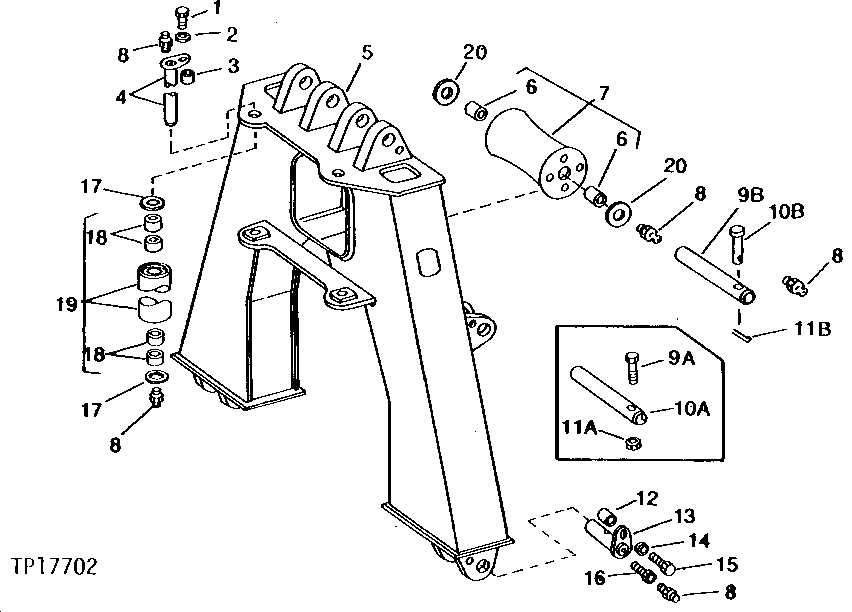

LOG ARCH (640 GRAPPLE SKIDDER) (DUAL FUNCTION BOOM) [03F01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2550	2	CAP SCREW	1/2" X 1-5/8"
2	T29342	2	Washer	-
3	28H935	2	SPACER	1/2" X 7/16"
4	AT40744	2	PIN FASTENER	-
5	AT40739	1	ARCH	(SUB AT53617, AT20199, T20487, T14714 AND A5067R)
5	-	1	Part 6	( AT53617 AND AT78471 NO LONGER AVAILABLE)
6	U30019	2	BUSHING	(SUB T90002, THIS APPLICATION)
7	AT90001	1	Roller	WITH BUSHINGS (12" LONG) (SUB FOR AT34920)
7	AT20199	1	ROLLER	WITH BUSHINGS (10" LONG)
8	JD7797	8	Lubrication Fitting	STRAIGHT, 1/4"
12	U12856	2	BUSHING	-
13	AT54922	2	PIN	-
13	AT40741	2	PIN FASTENER	(SUB AT54922)
14	E40151	2	Washer	-
15	19H2993	2	Cap Screw	HS, SAE 8, 1/2" X 1-1/2"
16	U17362	2	BOLT	-
17	H21870	4	WASHER	-
18	U11121	4	BUSHING	-
19	AT40743	2	ROLLER	SIDE, WITH BUSHINGS
20	T39569	2	Washer	-
9A	T26040	1	PIN FASTENER	HORIZONTAL ROLLER
9B	T20487	1	PIN FASTENER	HORIZONTAL ROLLER
10A	19H3481	1	Cap Screw	3/8" X 7-1/2"
10B	T14714	1	PIN	-
11A	T11234	1	Lock Nut	-
11B	A5067R	1	Spring Locking Pin	-

LOG ARCH (640 GRAPPLE SKIDDER) (DUAL FUNCTION BOOM) [03F01]
